AGA Patiententransportliege H-AWL 2065/Y 980

Patient transport tables with hydraulic height adjustment and side guards

The hydraulic height-adjustable patient transport tables from AGA Sanitätsartikel. Ready for safer patient transport anywhere.

Patient transport tables with hydraulic height adjustment, two side guards and continuous headrest adjustment

The hydraulic height-adjustable patient transport tables can be used anywhere and at any time due to the power-independent hydraulics and mobility. The adjustable side guards serve as fall protection and allow patients to get on and off from both sides of the table. This guarantees safe patient transport.

The large double swivel castors are connected to each other by rods and can therefore be released for movement or secured in place with just one step. To ensure easy access to the central adjustment, there is a foot pedal at the head and foot end of the patient transport table. The positioning is clearly visible using the coloured markings (green = table ready for moving, red = table locked in place).

Height-adjustable patient transport tables enable:

  • The more comfortable operation or pushing and steering,
  • Easy handling when transferring patients from operating tables or therapy tables with different heights to the patient transport table,
  • Easier getting on and off for patients.

The patient transport tables with hydraulic height adjustment and side guards are available in four configurations with lacquered and chrome-plated frames, as well as upholstery widths of 650 mm and 800 mm.

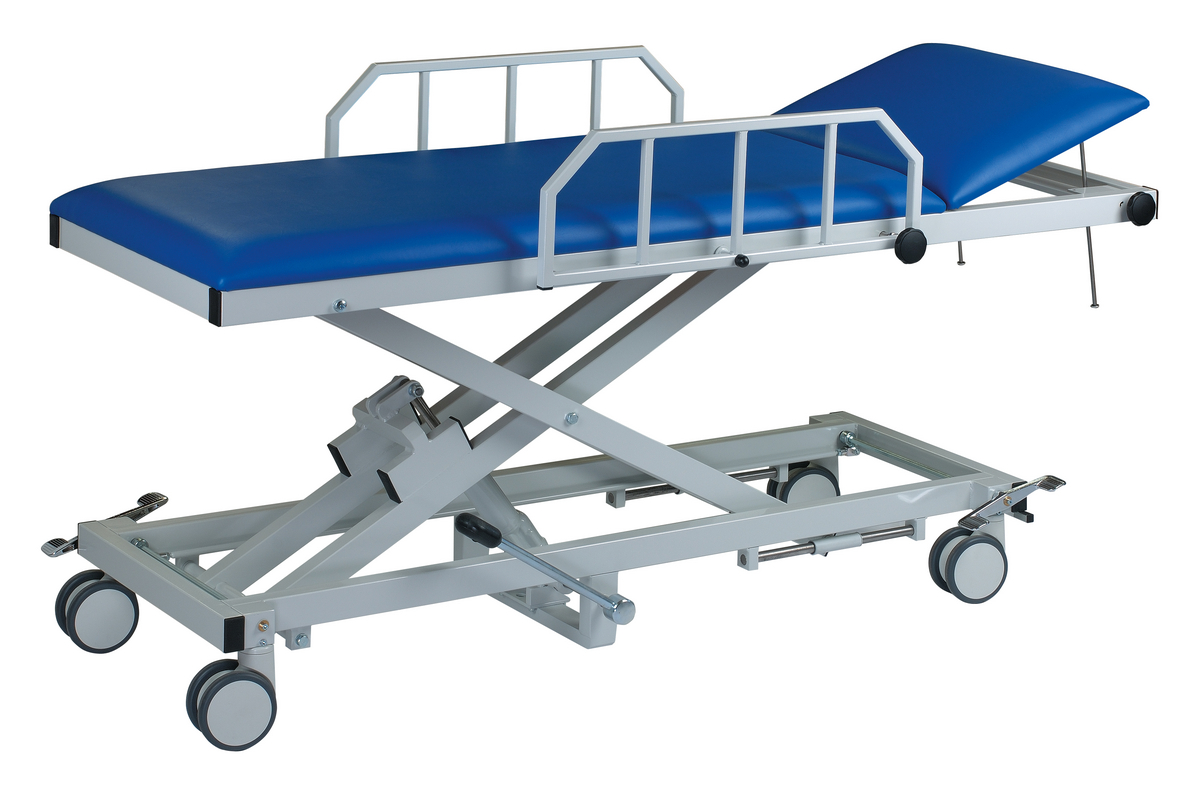

AGA Patiententransportliege H-AWL 1065/Y 980
Patient transport table with hydraulic height adjustment,
Article No.: H-AWL 1065/Y 980

Features

  • These patient transport tables are available in two widths:
    • Width 650 mm, Article No.: H-AWL 1065/Y 980 and H-AWL 2065/Y 980,
    • Width 800 mm, Article No.: H-AWL 1080/Y 980 und H-AWL 2080/Y 980.
  • For safer patient transport, these recovery tables are supplied with two side guards, dimensions approx. 760 x 250 mm (L x H). They can be lowered to upholstery height using a pivot mechanism and secured using spring-loaded handwheels with fixing bolts. Please take into account the complete table widths including the side guards:
    • 795 mm, Article No.: H-AWL 1065/Y 980 and H-AWL 2065/Y 980,
    • 975 mm, Article No.: H-AWL 1080/Y 980 and H-AWL 2080/Y 980.
  • The stability and robustness is achieved by the gusset plates in the frame corners.
  • The wide base frame ensures a high stability.
  • The upholstery frames of the patient transport tables are made of blank steel:
    • Lacquered, Article No.: H-AWL 1065/Y 980 and H-AWL 1080/Y 980,
    • Chrome-plated, Article No.: H-AWL 2065/Y 980 and H-AWL 2080/Y 980.
  • The upholstery thickness for both tabletop sections (headrest and main surface) is 64 mm.
  • The hydraulic height adjustment (500 - 980 mm) is operated by the built-in foot pump and can be carried out even with heavier patients (up to 200 kg) without much effort. The foot pump can be mounted on either sides (please specify the desired side when placing the order). A second foot pump is available for an additional charge (Article No.: FPH-10).
  • The headrest is continuously adjustable up to +40° and secured with clamping rod locking mechanism.
  • The patient transport tables are equipped with double castors, Ø 125 mm, with a central locking system. The four swivel castors are connected to each other by rods, with foot pedals to lock in position or release located at the head and foot ends of the table.

Technical data

 Table width 650 mm

Article number

H-AWL 1065/Y 980H-AWL 2065/Y 980
FrameLacqueredChrome

Length
Headrest / main section

1,900 mm
500 / 1,400 mm
Width650 mm  (795 mm with side guards)
Side guards

 760 x 250 mm (L x H), pivoting

Height adjustment

500 - 980 mm (hydraulic)

Upholstery segments

2 sections

Upholstery thickness

64 mm

Headrest adjustment

+40° (clamping rods)

Load capacity

200 kg
CastorsØ 125 mm, double castors with central locking system
 Table width 800 mm

Article number

H-AWL 1080/Y 980H-AWL 2080/Y 980
FrameLacqueredChrome

Length
Headrest / main section

1,900 mm
500 / 1,400 mm
Width800 mm  (975 mm with side guards)

Side guards

 760 x 250 mm (L x H), pivoting

Height adjustment500 - 980 mm (hydraulic)

Upholstery segments

2 sections

Upholstery thickness

64 mm

Headrest adjustment

+40° (clamping rods)

Load capacity

200 kg
CastorsØ 125 mm, double castors with central locking system

In the above tables, the term 'frame' only defines the nature of the upholstery/tabletop frame and the side guards. The height adjustment mechanism and the base frame are only available in a lacquered version.

The standard configuration includes:
  • Mobile base in the form of a central locking system, double swivel castors Ø 125 mm, all four castors offer excellent rolling properties and are connected to each other by rods, foot pedals are arranged diagonally at the head and foot end, easy to operate and with coloured markings (green = table ready for moving, red = table locked in place).
  • Two side guards, dimensions 800 x 250 mm (L x H). So that these patient transport tables can be used from both sides, the side guards can be adjusted, pointing upwards or downwards, with a simple pivot mechanism and fixed with spring-loaded handwheels.

We offer the coloured lacquer coating of the frames as standard in the following three shades (see frame colour selection card):

  • light grey (RAL 7035)
  • white aluminum (RAL 9006)
  • pure white (RAL 9010).

The high quality finish has a glossy look. It is disinfectant resistant and easy to clean.

Other colours are of course also available. Please let us know the desired RAL colour so that we can find out the corresponding additional costs. Please note, however, that these products are then considered type variants with no right of return.

The artificial leather covers we use are characterized by their tear resistance, durability, longevity and their good cleaning properties as well as their resistance to disinfectants.

We use a (colour) selection from the synthetic leather covers VOWAled Pisa (Vowalon). The colour selection card can be found here.

In addition, we offer you the service of manufacturing the upholstery in other colours or from other synthetic leather manufacturers (type variant). After prior agreement, please send us the relevant references.

The black electrically conductive synthetic leather cover (with equipotential bonding socket on the frame) is available at an additional cost. It is already included in the price of the operating tables and multifunction tables.

Image gallery

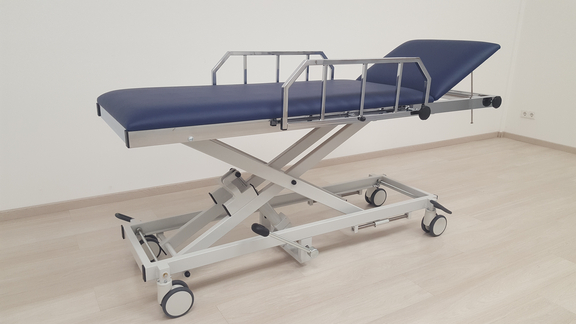

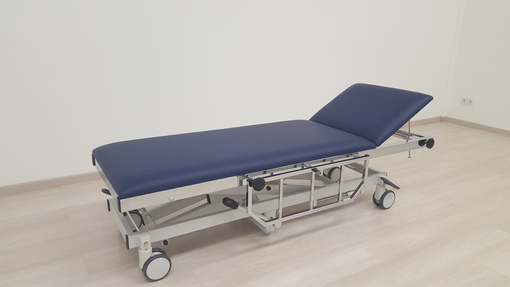

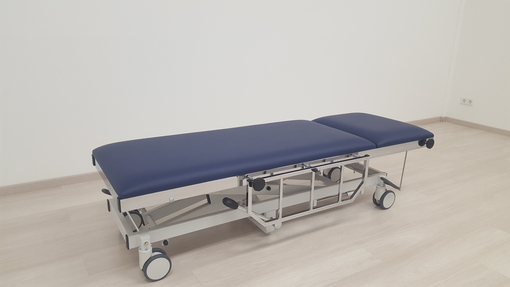

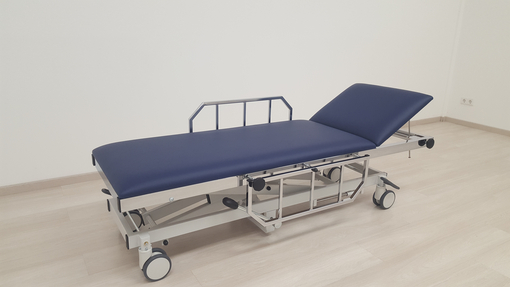

The photos show the hydraulic height-adjustable patient transport table with side guards, Article No.: H-AWL 2065/Y 980, in the colours:

  • Frame and side guards: chrome-plated,
  • Frame: light grey RAL 7035,
  • Upholstery: blue.

Accessories & additional options

Article No.

Description
FPH-10Foot pedal with transmission shaft and connecting piece. This allows the hydraulic height adjustment to be operated from both sides.
INF-1720/VA Infusion holder, CrNi steel, bottle cross with 4 hooks, infusion rod 1,700 mm long, Ø 18 mm, includes a screw-on fastening clamp, which is fixed on the left or right side of the upholstery frame (please specify when placing the order). Retrofitting is only possible to a limited extent.

KVG

Headrest adjustment via gas pressure spring (instead of clamping rod mechanism), release button located directly on the headboard cushion. Retrofitting is not possible.

P-2065/A
P-2080/A

Paper roll holder, for table width 650 mm.
Paper roll holder, for table width 800 mm.

Chrome-plated, consisting of two mounting kits, two brackets and a paper roll holder bar (length 615 / 795 mm, Ø 20 x 1 mm), for mounting on the upholstery frame.

SL-AWLShock position/Trendelenburg adjustment, approx. 11°, the upholstery frame at the foot end is equipped with a gas pressure spring, release button embedded in the upholstery frame. Retrofitting is not possible.

The accessory components mentioned above are just a small excerpt. The following accessories are also available: surgical standard rails in various lengths, push handles, all-around edge/impact protection, wall deflector rings in the four corners of the table, patient belts, positioning aids, face cutout in the upholstered headrest and padded insert for closing.

More accessories

Product variants

As a manufacturer, we are able to adapt our products to your individual needs. Below, you will find examples of customer-specific requests we have implemented.

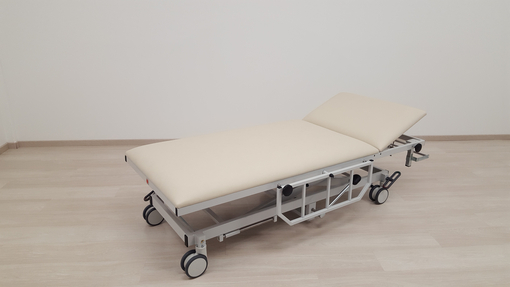

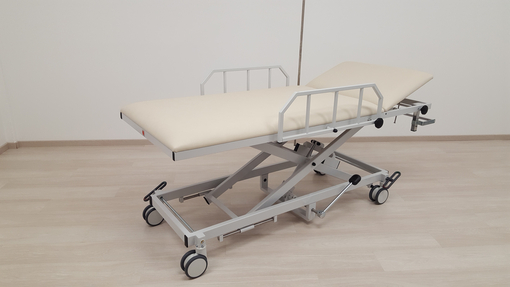

The photos show the hydraulic height-adjustable patient transport table with side guards, Article No.: H-AWL 1080/Y 980, in the colours:

  • Frame: light grey RAL 7035,
  • Upholstery: birch

as well as the additional accessories and equipment components (in some of the pictures):

  • Shock position/Trendelenburg adjustment via gas pressure spring, Article No.: SL-AWL,
  • Paper roll holder, Article No.: P-2080/A,
  • Infusion stand made of stainless steel, Article No.: INF-1720/VA.
