AGA Patiententransportliege U-2065/LR

Patient transport tables

Examination tables with a fixed height, suitable for patient transport.

Patient transport tables with castors

These examination tables with castors from AGA Sanitätsartikel have been specially developed for patient transport.

They are available in six configurations with lacquered and chrome-plated frames, as well as upholstery widths of 650 mm, 800 mm and 1,000 mm.

To meet the requirements of different areas of application and use, the patient transport tables are available at no extra charge in the heights of 650 mm, 700 mm, 750 mm and 800 mm.

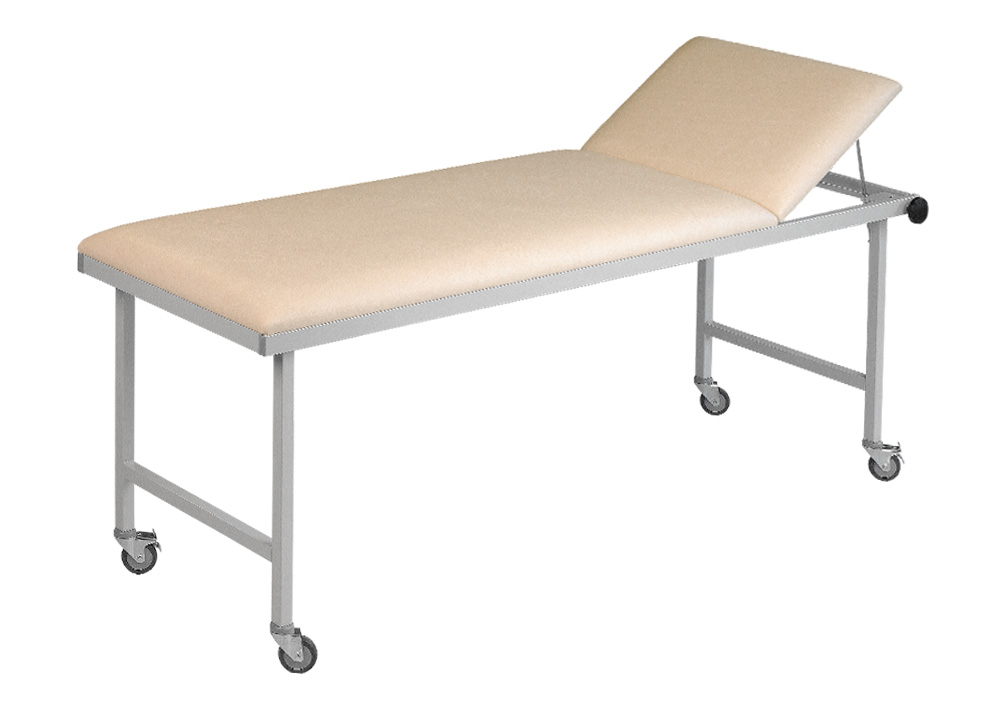

AGA Patiententransportliege U-1065/LR
Patient transport table, Article No.: U-1065/LR

Features

The base model for these mobile patient transport tables are the examination tables with continuous headrest adjustment, which are then equipped with a set of castors.

  • The patient transport tables are available in three widths:
    • Width 650 mm, Article No.: U-1065/LR and U-2065/LR,
    • Width 800 mm, Article No.: EKG-1080/LR and EKG-2080/LR,
    • Width 1,000 mm, Article No.: GYMK-10100/LR and GYMK-20100/LR.
  • They are equipped with castors, Ø 75 mm. A set consists of four swivel castors, two of which can be completely locked in rotation and running directions.
  • The stability and robustness is achieved by the gusset plates in the frame corners and the cross braces between the table legs.
  • The tubular steel frames of the patient transport tables are made of blank steel:
    • Lacquered, Article No.: U-1065/LR, EKG-1080/LR and GYMK-10100/LR,
    • Chrome-plated, Article No.: U-2065/LR, EKG-2080/LR and GYMK-20100/LR.
  • The thickness of the two upholstery sections (headrest and main surface) is 64 mm each.
  • If no height is specified when placing the order, the patient transport tables will be delivered with a height of 650 mm (also available in heights of 700, 750 and 800 mm at no extra charge).
  • The headrest can be adjusted continuously up to +40°. It is locked using a clamping handle and a clamping rod mechanism.

Technical data

 Table width 650 mm
Article numberU-1065/LRU-2065/LR
FrameLacqueredChrome-plated

Length
Headrest / main section

1,900 mm
500 / 1,400 mm
Width650 mm

Heights (no extra charge)

650 / 700 / 750 / 800 mm
Upholstery segments2 sections
Upholstery thickness64 mm

Headrest adjustment

+40° (clamping rods)
Load capacity200 kg
CastorsØ 75 mm, two with locking function
 Table width 800 mm
Article numberEKG-1080/LREKG-2080/LR
FrameLacqueredChrome-plated
Length
Headrest / main section		1,900 mm
500 / 1,400 mm
Width800 mm
Heights (no extra charge)    650 / 700 / 750 / 800 mm

Upholstery segments

2 sections

Upholstery thickness

64 mm

Headrest adjustment

+40° (clamping rods)

Load capacity

200 kg

Castors

Ø 75 mm, two with locking function
The standard configuration includes:
  • A set of castors, consisting of four swivel castors, Ø 75 mm, two of which can be locked.

We offer the coloured lacquer coating of the frames as standard in the following three shades (see frame colour selection card):

  • light grey (RAL 7035)
  • white aluminum (RAL 9006)
  • pure white (RAL 9010).

The high quality finish has a glossy look. It is disinfectant resistant and easy to clean.

Other colours are of course also available. Please let us know the desired RAL colour so that we can find out the corresponding additional costs. Please note, however, that these products are then considered type variants with no right of return.

The artificial leather covers we use are characterized by their tear resistance, durability, longevity and their good cleaning properties as well as their resistance to disinfectants.

We use a (colour) selection from the synthetic leather covers VOWAled Pisa (Vowalon). The colour selection card can be found here.

In addition, we offer you the service of manufacturing the upholstery in other colours or from other synthetic leather manufacturers (type variant). After prior agreement, please send us the relevant references.

The black electrically conductive synthetic leather cover (with equipotential bonding socket on the frame) is available at an additional cost. It is already included in the price of the operating tables and multifunction tables.

Image galleries

The photos show the patient transport table with fixed height, Article No.: U-2065/LR, in the colours:

  • Frame: chrome,
  • Upholstery: turquoise.

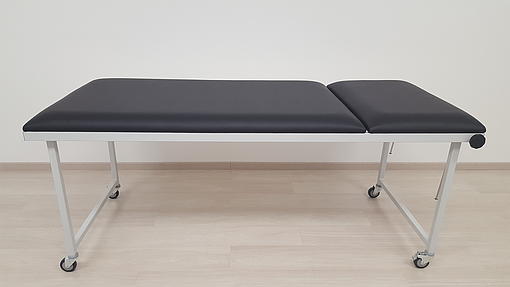

The photos show the patient transport table, Article No.: EKG-1080/LR, with the table height 800 mm and the colours:

  • Frame: light grey RAL 7035,
  • Upholstery: black.

Accessories & additional options

Article No.

Description
INF-1720/VAInfusion holder, CrNi steel, bottle cross with 4 hooks, infusion rod length 1,700 mm, Ø 18 mm, includes a screw-on fastening clamp, which is fixed on the left or right side of the upholstery frame (please specify when placing the order). Retrofitting is only possible to a limited extent.
KorbStorage basket, plastic-coated (light grey RAL 7035), for hanging, dimensions 550 x 290 x 190 mm (W x D x H). Retrofitting is not possible.

P-2065
P-2080

Paper roll holder, for table width 650 mm.
Paper roll holder, for table width 800 mm.
Chrome-plated, consisting of two brackets, two clamps and a paper roll holder bar (length 615 / 795 mm, Ø 20 x 1 mm), for mounting on the table legs.

PG-220
PG-260		Patient belt, dimensions 2,200 x 250 mm (L x W), for table width 650 mm.
Patient belt, dimensions 2,600 x 250 mm (L x W), for table width 800 mm.
Sewn from synthetic leather, with Velcro fastener (hook and loops straps), see upholstery colours
SL-AWLShock position/Trendelenburg adjustment, approx. 11°, the upholstery frame at the foot end is equipped with a gas pressure spring, release button embedded in the upholstery frame. Retrofitting is not possible.

The accessory components mentioned above are just a small excerpt. The following accessories are also available: castors with larger diameter, mobile base with central locking system, surgical standard rails in various lengths, push handles, all-around edge/impact protection, wall deflector rings in the four corners of the table, positioning aids, headrest adjustment via gas pressure spring, face cutout in the upholstered headrest and padded insert for closing.

More accessories

Product variants

As a manufacturer, we are able to adapt our products to your individual needs. Below, you will find examples of customer-specific requests we have implemented.

The photos show the patient transport table, Article No.: U-1065/LR, with a three-piece tabletop, in the colours:

  • Frame: white aluminium RAL 9006,
  • Upholstery: birch.

The photos show the patient transport table, Article No.: EKG-1080/LR, with larger castors (Ø 125 mm), in the colours:

  • Frame: light grey RAL 7035,
  • Upholstery: black.
