AGA-MULTI-MAT
Multi-function tables with electric adjustment options
Offering extensive electromotive adjustment options for patient positioning and user handling was of utmost importance in the design of the AGA-MULTI-MAT tables.
AGA-MULTI-MAT Multi-function tables
The multi-function tables of the AGA-MULTI-MAT series from AGA Sanitätsartikel are used in many areas of medicine thanks to the extensive electromotive adjustment options, the ergonomic structure of the tabletop in five sections and the removable upholstered segments, which are covered with electrically conductive synthetic leather (cotton/polyester blend, coating made of 100% PVC compound, biocompatible).
The AGA-MULTI-MAT multi-function tables are available in the following versions:
- Without lateral adjustment, Article No.: MF-1050/EE,
- With lateral adjustment, Article No.: MF-1050/EEE.
Features
- Electric height adjustment from 775 to 975 mm, controlled by foot switch.
- Electric seat section adjustment -23°/+35°, controlled by foot switch.
- Manually contibuously adjustable headrest (using a clamping rod mechanism), back and leg sections (each using gas pressure springs).
- Table surface divided into five sections for optimal and safe patient positioning.
- Upholstery segments, thickness 64 mm, removable via plug connections, electrically conductive, biocompatible, colour black.
- The base, which is equipped with a potential equalization socket and levelling feet, offers high stability.
- Standard surgical rails (25 x 10 mm) on the outside of the frame of the back, seat and leg sections, for attaching accessory components such as armrests, anesthesia pole, leg holders, etc.
- Motor connection values:
- Height adjustment: 230V, 50/60 Hz., 3.7A, 850W, IPX4, v=11mm/s, 10,000N, adjustment system with key lock,
- Seat adjustment: 230V, 50/60 Hz., 3.7A, 850W, IPX4, v=11mm/s, 10,000N, adjustment system with key lock,
- Lateral adjustment: 230V, 50/60 Hz., 3.7A, 850W, IPX4, v=11mm/s, 10,000N, adjustment system with key lock.
Technical data
| AGA-MULTI-MAT | ||
|---|---|---|
| Article number | MF-1050/EE | MF-1050/EEE |
| Frame | Lacquered | |
| Length Head to foot sections | 1,900 mm 295 / 575 / 360 / 520 mm | |
| Width | 500 mm (560 mm with standard rails) | |
| Height adjustment | 775 - 975 mm (electric motor) | |
| Upholstery segments | 5 sections | |
| Synthetic leather | Electrically conductive, black | |
| Upholstery thickness | 64 mm | |
| Load capacity | 150 kg | |
| Trendelenburg adjustment Anti-Trendelenburg adjustment | 23° 23° | |
| Headrest adjustment | -30°/+20° (clamping rods) | |
| Back section adjustment | -23°/+45° (gas pressure spring) | |
| Seat section adjustment | -23°/+35° (electric motor) | |
| Leg section spread | - | 20° (electric motor) |
| Leg section adjustment | -90°/0° (separate, gas pressure springs) | |
The standard configuration includes:
- Standard surgical rails on the outside of the frame of the back, seat and leg sections, dimensions 25 x 10 mm, made of stainless steel, for attaching accessory components such as armrests, anesthesia sheets, leg holders, etc.
- A base equipped with a potential equalization socket and levelling feet.
We offer the coloured lacquer coating of the frames as standard in the following three shades (see frame colour selection card):
- light grey (RAL 7035)
- white aluminum (RAL 9006)
- pure white (RAL 9010).
The high quality finish has a glossy look. It is disinfectant resistant and easy to clean.
Other colours are of course also available. Please let us know the desired RAL colour so that we can find out the corresponding additional costs. Please note, however, that these products are then considered type variants with no right of return.
The electrically conductive MEDISTAT (Cotting Group / Griffine) synthetic leather cover we use is especially suitable for medical use and is available in the colour black. The MEDISTAT synthetic leather consists of a cotton/polyester blend and a coating of 100% PVC compound. It is characterized by its tear resistance, durability, longevity and good cleaning properties as well as its resistance to disinfectants. More information about the composition and cleaning and care of MEDISTAT synthetic leather can be found here.
The black electrically conductive imitation leather cover (with equipotential bonding socket on the frame) is included in the price for the operating theater and multifunction tables. For the other products, it is available at an additional cost.
The delivery of the operating tables with NON-conductive synthetic leather covers with different colours (see upholstery colours) is also possible. The tables are then custom-made with no right of return.
We also offer the option of having the upholstery done in other colours or brands of synthetic leather. The corresponding materials should be sent to us, subject to prior arrangement. Please talk to us!
Downloads
Image galleries
To feature the many adjustment options of the AGA-MULTI-MAT multi-function table, we are showing the photos over two separate galleries.

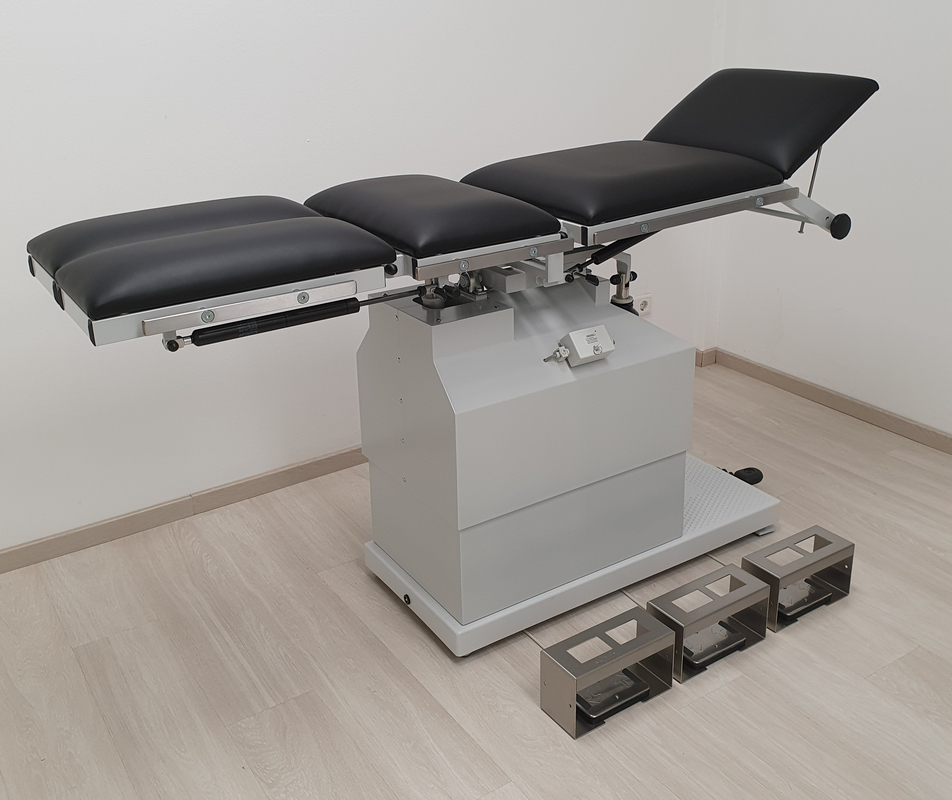

MF-1050/EEE, LR/Z-50
MF-1050/EEE, LR/Z-50
MF-1050/EEE, LR/Z-50
MF-1050/EEE, LR/Z-50
MF-1050/EEE, LR/Z-50
MF-1050/EEE, LR/Z-50
MF-1050/EEE, LR/Z-50
The photos in this and the adjacent image gallery show the electric adjustable multi-function table AGA-MULTI-MAT, Article No.: MF-1050/EEE, in the colours:
- Frame: light grey RAL 7035,
- Upholstery: black, electrically conductive
as well as the additional accessories and equipment components:
- Central locking castor system, Article No.: LR/Z-50.
MF-1050/EEE, LR/Z-50
MF-1050/EEE, LR/Z-50
AGA-MULTI-MAT MF-1050/EEE, LR/Z-50
MF-1050/EEE, LR/Z-50
MF-1050/EEE, LR/Z-50
MF-1050/EEE, LR/Z-50
MF-1050/EEE, LR/Z-50
MF-1050/EEE, LR/Z-50
MF-1050/EEE, LR/Z-50
MF-1050/EEE, LR/Z-50
Accessories & additional options
To attach additional equipment components (accessories), equipment rails (dimensions 25 x 10 mm, made of CrNi steel), also known as standard surgical rails, are found on the outside of the frame of the back, seat and leg sections.
Article No. | Description |
|---|---|
| A-2047 | Arm support, swivel-mounted, black PU-foam arm shell, dimensions approx. 400 x 120 mm (L x W), with 2 Velcro fasteners to secure the arm to the shell, chrome-plated holder with attachment for standard rail. |
| AHT-3065 | Arm and hand surgery table, made of CrNi steel, height adjustable approx. 700 - 1,135 mm, with floor support, black conductive upholstery, dimensions approx. 650 x 250 mm (L x W), with fastening clamp for standard rail. |
| BEFE-60 | Leg restraints (pair), with Velcro fastenings around the leg section(s) of the table, fixation of the legs using straps with Velcro closures. |
| BHG-600 | Göpel leg rests (pair), with spherical joints, rods with two 90° bends, chrome-plated, Ø 18 mm, black PU-foam shells. A pair of fastening clamps for standard rails is required. |
| BKG-600 | Göpel fastening clamps (pair), adjustable, chrome-plated, for standard rails. |
| IT-3060 | Instrument table, made of CrNi steel, dimensions approx. 600 x 400 mm (L x W), side raised edge 15 mm, mounting rod Ø 18 mm. A fastening clamp for standard rail is required. |
| NB-30640 | Anesthesia pole, made of CrNi steel, pole length 640 mm, Ø 18 mm. A fastening clamp for standard rail is required. |
| SG-1000/BK | Side guard, removable, dimensions approx. 800 x 250 mm (L x H), with fastening clamp for standard rail. |
The equipment components mentioned above are just a small excerpt. The following accessories are also available for the multi-function tables: hand restraints, ring armrests, body belt, side or shoulder holder, side support, IV stand and leg holders.
Product variants
As a manufacturer, we are able to adapt our products to your individual needs. Below, you will find examples of customer-specific requests we have implemented.
It is possible to outfit the multi-function table, for example, with a leg section in one piece or a different coloured synthetic leather cover. We will be pleased to provide further pricing information upon request.
Questions? Contact us today!
Do you have questions about our products or services? Would like to get to know us? Contact us today, we will be pleased to provide expert advice tailored to your needs.
Product videos
Illustration of the standard surgical rails, Article No.: OPS-170/A.
Illustration and operation of the continuous headrest adjustment by clamping rod mechanism, Article No.: EKA-1065/AA.
Illustration of the electric height adjustment of the examination table, Article No.: H-U 1065/E. The adjustment system has a button lock that is deactivated with a double tap.
Illustration of the electric pelvic elevation of the urology examination chair AGA-URO-MAT, Article No.: UUS-3060/EEE, equipped with a pair of ring armrests, Article No.: RL-2060. The parallel gyroscopic sink, which ensures a high level of splash protection even in the uppermost position, can also be seen here.
