MRI Tables with hydraulic height adjustment and side guards
The hydraulic height-adjustable MRI patient transport tables from AGA Sanitätsartikel for safer patient transport.
MRI Patient transport tables up to 7 Tesla - with hydraulic height adjustment and side guards for flexibility of use
These hydraulic height-adjustable tables with side guards were also developed specifically for use in magnetic resonance (MRI or MR). The frames are made of slightly magnetic stainless steel or aluminium and brass components. The low level of residual magnetism does not affect the imaging process, nor are the MRI patient transport tables attracted by the magnetic field of the MR system. They can be used safely for MR systems up to 7 Tesla.
The two side guards included in the scope of delivery ensure safer patient transport and fall protection.
Due to the mobility of the hydraulic height-adjustable MRI patient transport tables and the associated flexibility of use, the hydraulics, which are independent of the power supply (compared to an electric motor) and can therefore be operated anywhere and at any time, are operated via a foot pump. The advantage of these hydraulic height-adjustable MRI patient transport tables is that they are suitable for MR systems with different patient table heights and make it easier for patients to get on and off.
The hydraulic height-adjustable MRI patient transport tables can be used safely under the following conditions:
- Static magnetic field of a maximum of 7 Tesla or less,
- With an additional spatial gradient of a maximum of 10 T/m or less,
- The table must not exceed the limit line of 10 T/m with the head end/foot end in the direction of movement towards the magnet.
Features
- The hydraulic height-adjustable MRI patient transport tables are equipped with swivel castors, Ø 100 mm. All four can be totally locked in turning and running directions.
- They are available in two widths:
- Width 650 mm, Article No.: H-AWL 3065/Y 980VA,
- Width 800 mm, Article No.: H-AWL 3080/Y 980VA.
- Two side guards are supplied with these MRI tables for safer patient transport.
- The side guards, dimensions approx. 800 x 250 mm (L x H), can be lowered to the upholstery height using a pivot mechanism and secured using spring-loaded handwheels with fixing bolts.
- Please take into account the complete table widths including the side guards:
- The MRI table, Article No.: H-AWL 3065/Y 980VA, is 795 mm wide,
- The MRI table, Article No.: H-AWL 3080/Y 980VA, is 975 mm wide.
- The tubular steel frame of the hydraulic height-adjustable MRI tables is made of stainless steel, with a low residual magnetism.
- The hydraulic height adjustment is operated using a foot pump. The foot pump can be mounted on both sides (please specify the desired side when placing your order). A second foot pump is also available for an additional charge (Article No.: FPH-30).
- The height-adjustable MRI tables can be used with a static magnetic field of a maximum of 7 Tesla or less.
- The thickness of the two upholstered segments (headrest and main surface) is 64 mm.
- The headrest can be adjusted continuously up to +40°. It is locked in place with a clamping handle using a clamping rod mechanism.
Technical data
| MRI Patient transport tables with hydraulic height adjustment and side guards | ||
|---|---|---|
| Article number | H-AWL 3065/Y 980VA | H-AWL 3080/Y 980VA |
| Frame | Stainless steel | |
| Length Headrest / main section | 1,900 mm 500 / 1,400 mm | |
| Width | 650 mm (795 mm with side guards) | 800 mm (975 mm with side guards) |
| Side guards | 800 x 250 mm (L x H), pivoting | |
| Height adjustment | 620 - 980 mm (hydraulic) | |
| Upholstery segments | 2 sections | |
| Upholstery thickness | 64 mm | |
| Headrest adjustment | +40° (clamping rods) | |
| Load capacity | 200 kg | |
| Castors | Ø 100 mm, all 4 with locking function | |
The standard configuration includes:
- A set of castor, consisting of four swivel castors, Ø 100 mm. All four castors are lockable.
- Two side guards, dimensions 800 x 250 mm (L x H). So that these MRI patient transport tables can also be used from both sides, the side guards can be adjusted to point up or down with a simple pivot mechanism and fixed with spring-loaded handwheels.
The synthetic leathers we use are characterised by their tear resistance, durability, longevity and good cleaning properties as well as their resistance to disinfectants.
We use a (colour) selection of synthetic leather covers from VOWAled Pisa (Vowalon). You can find the colour selection card here.
Synthetic leather covers (e.g. Skai and Stamskin Top) from other manufacturers can also be used. Please let us know the desired manufacturer, the collection and the exact colour number. We will tell you the corresponding additional costs. Would you like to procure the cover yourself and make it available to us? No problem. We will let you know the required quantity in advance. Please bear in mind that products with third-party covers are type variants and therefore cannot be returned.
Downloads
Image galleries
H-AWL 3065/Y 980VA
H-AWL 3065/Y 980VA
H-AWL 3065/Y 980VA
H-AWL 3065/Y 980VA
H-AWL 3065/Y 980VA
H-AWL 3065/Y 980VA

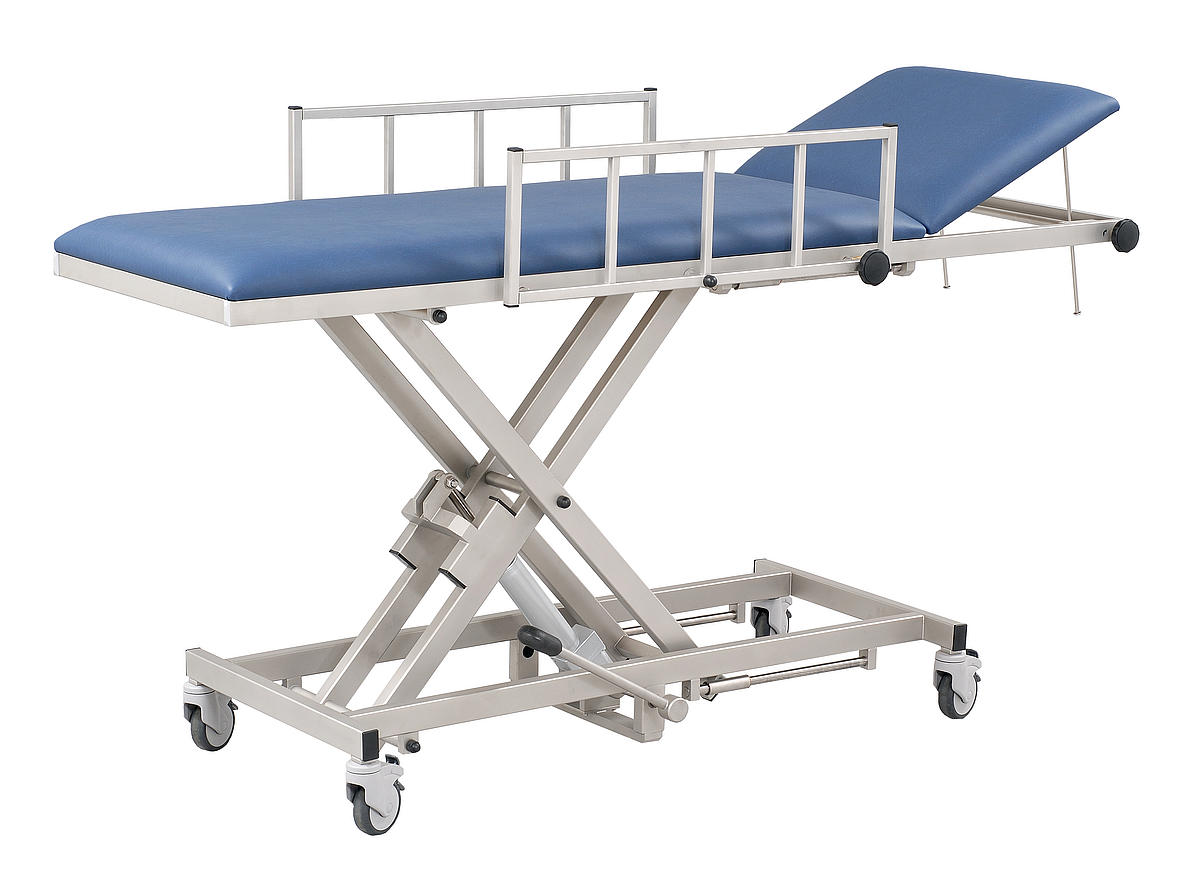

The photos show the MRI patient transport table with hydraulic height adjustment with side guards, Article No.: H-AWL 3065/Y 980VA, in the colours:
- Frame: glass bead blasted stainless steel,
- Upholstery: atoll.
H-AWL 3080/Y 980VA
H-AWL 3080/Y 980VA
H-AWL 3080/Y 980VA
H-AWL 3080/Y 980VA
The photos show the MRI patient transport table with hydraulic height adjustment with side guards, Article No.: H-AWL 3080/Y 980VA, in the colours:
- Frame: glass bead blasted stainless steel,
- Upholstery: atoll.
Accessories & additional options
Article No. | Description |
|---|---|
| FPH-30 | Foot pedal, MR-compatible, with transmission shaft and connecting piece. This allows the hydraulic height adjustment to be operated from both sides. |
| INF-1720/VA | Infusion holder, CrNi steel, bottle cross with 4 hooks, infusion rod 1,700 mm long, Ø 18 mm, includes a screw-on fastening clamp, which is fixed on the left or right side of the upholstery frame (please specify when placing the order). Retrofitting is only possible to a limited extent. |
| P-3050/A P-3070/A | Paper roll holder, for table width 650 mm. Paper roll holder, for table width 800 mm. With mounting hardware, made of CrNi steel, consisting of two mounting kits (square steel tube 30 x 30 x 2 mm, length approx. 150 mm) and a paper roll holder bar (length 515 / 690 mm, round Ø 8 mm), for mounting at the foot end of the upholstered frame. |
PG-220 | Patient belt, dimensions 2,200 x 250 mm (L x W), for 650 mm wide tables. Patient belt, dimensions 2,600 x 250 mm (L x W), for 800 mm wide tables. Sewn from synthetic leather, with Velcro fastener (hook and loops straps), see upholstery colours. |
| ULKRS-4022 | All-around edge protection/impact protection, black, dimensions approx. 40 x 22 mm, with aluminium insert, mounted on the upholstery frame (and on the side rails). Retrofitting is not possible. |
Product variants
As a manufacturer, we are able to adapt our products to your individual needs. Below, you will find examples of customer-specific requests we have implemented.
H-AWL 3065/Y 980VA, ULKRS-4022, INF-1720/VA
H-AWL 3065/Y 980VA, ULKRS-4022, INF-1720/VA
H-AWL 3065/Y 980VA, ULKRS-4022, INF-1720/VA
H-AWL 3065/Y 980VA, ULKRS-4022, INF-1720/VA
H-AWL 3065/Y 980VA, ULKRS-4022, INF-1720/VA
H-AWL 3065/Y 980VA, ULKRS-4022, INF-1720/VA
H-AWL 3065/Y 980VA, ULKRS-4022, INF-1720/VA
H-AWL 3065/Y 980VA, ULKRS-4022, INF-1720/VA
The photos show the hydraulic height-adjustable MRI patient transport table with side guards, Article No.: H-AWL 3065/Y 980VA, in the colours:
- Frame: glass bead blasted stainless steel,
- Upholstery: grey
as well as the additional accessories and equipment components:
- All-around edge/impact protection, Article No.: ULKRS-4022,
- Infusion stand, Article No.: INF-1720/VA.
H-AWL 3065/Y 980VA, ULKRS-4022
H-AWL 3065/Y 980VA, ULKRS-4022
H-AWL 3065/Y 980VA, ULKRS-4022
H-AWL 3065/Y 980VA, ULKRS-4022
H-AWL 3065/Y 980VA, ULKRS-4022
H-AWL 3065/Y 980VA, ULKRS-4022
H-AWL 3065/Y 980VA, ULKRS-4022

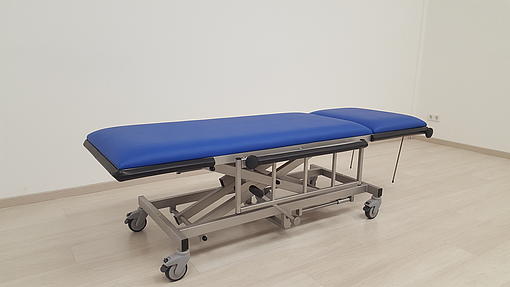

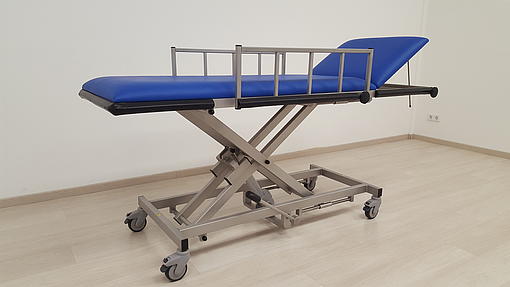

The photos show the hydraulic height-adjustable MRI patient transport table, Article No.: H-AWL 3065/Y 980VA, in the colours:
- Frame: glass bead blasted stainless steel,
- Upholstery: atoll
as well as the additional accessories and equipment components:
- All-around edge/impact protection, Article No.: ULKRS-4022.
Questions? Contact us today!
Do you have questions about our products or services? Would like to get to know us? Contact us today, we will be pleased to provide expert advice tailored to your needs.
Product videos
Illustration and operation of the hydraulic height adjustment on the MRI patient transport table, Article No.: H-AWL 3065/Y 980VA, equipped with infusion stand, Article No.: INF-1720/VA, and paper roll holder, Article No.: P-3050/A, as well as the handling of the side guard using the rotating mechanism and the manoeuvrability of the table.
Illustration and operation of the continuous headrest adjustment by clamping rod mechanism, Article No.: EKA-1065/AA.
Handling of the pivot mechanism on the side guard, Article No.: SG-3000/1, seen on the MRI patient transport table, Article No.: H-AWL 3065/Y 980VA.
