Accessories for operating and multi-function tables

Arm support
Swivel-mounted, black PU-foamed arm shell, dimensions approx. 400 x 120 mm (L x W), with 2 Velcro fasteners to secure the arm to the shell, chrome-plated holder with attachment for standard rail.

Arm and hand surgery table
Made of CrNi steel, height adjustable approx. 700 - 1,135 mm, with floor support, black conductive upholstery, dimensions approx. 650 x 250 mm (L x W), removable, tabletop adjustable using ball joints, with fastening clamp for standard rail.

Leg restraints (pair)
With Velcro fastenings around the leg section(s) of the operating or multi-function table, fixation of the legs using straps with Velcro fasteners, width of the strap 50 mm.

Leg rests (pair)
With plastic shells, rods with a 90° bend, chrome-plated, round Ø 18 mm, with Velcro closures to secure the legs to the shells. A pair of fastening clamps for standard rails is required.

Göpel leg rests (pair)
With spherical joints, rods with two 90° bends, chrome-plated, round Ø 18 mm, black PU-foam shells, includes the straps sewn from synthetic leather with Velcro closure to secure the legs to the shells.  A pair of fastening clamps for standard rails is required.

Göpel fastening clamps (pair)
For standard rails (dimensions 25 x 10 mm), chrome-plated, for leg holder rods Ø 18 mm. The leg holders can be adjusted in height and tilt using toothed rings and secured with a clamping mechanism.

Fastening clamps (pair)
For standard rails (dimensions 25 x 10 mm), chrome-plated, holders for Ø 18 mm, the leg rests can be secured at the desired height with a clamping handle.

Footswitch
Surcharge for control of the electromotive height adjustment by foot switch (instead of the standard manual switch)

Hand restraint
Holder Ø 18 mm made of CrNi steel, black webbing strap, dimensions 500 x 50 mm (L x W), with lever clamp, fastening clamp for standard rail required.

Infusion holder
Made of CrNi steel, infusion rod 1,700 mm long, round tube Ø 18 mm, bottle cross with 4 hooks, with fastening clamp for standard rail.

Instrument table
Made of CrNi steel, dimensions approx. 600 x 400 mm (L x W), side raised edge 15 mm, mounting rod Ø 18 mm, fastening clamp for standard rail required.

Body belt
Dimensions 2,250 x 50 mm (L x W), mounting bolts Ø 18 mm, made of CrNi steel, fixation with Velcro fastener. A pair of fastening clamps for standard rails is required.

Headrest adjustment via gas pressure spring (instead of clamping rod mechanism)
Can be operated with just one hand, release button located directly on the headboard cushion. Retrofitting is not possible.

Mobile base with central locking castor system
Welded into the base frame (dimensions approx. 1,000 x 450 mm), consisting of 2 swivel and 2 fixed castors, Ø 50 mm, foot pedal with black cap located towards the head end. Retrofitting is not possible.

Leg plates
Split, removable and vertically/laterally adjustable via gas pressure springs -90°/0°, lateral adjustment via clamping mechanisms 0°/90°. Retrofitting is not possible.

Flat upholstery pads for the tabletop
Thickness 40 mm, colour black, antistatic according to ISO 2882, with seamless top sides. They are attached with fleece straps to the hook straps (Velcro fasteners), which are located on the 15 mm thick radiolucent support plates. Retrofitting is not possible.

Compartment for x-ray cassette
Arranged under the pelvic section, dimensions approx. 435 x 305 mm (W x D). Retrofitting is not possible.

Anesthesia pole, pole length 560 mm.
Anesthesia pole, pole length 640 mm.
Made of CrNi steel, round tube Ø 18 x 2 mm, with a 90° bend, fastening clamp for standard rail required.

Fixation belt
Length approx. 1,800 mm, width 47 mm, each with two belt locks and mounting brackets for standard rails.

Paper roll holder
Chrome-plated, consisting of two angles and a paper roll holder bar (length 515 mm, Ø 20 x 1 mm), for mounting (from below) on the upholstered headboard.

Ring armrests (pair)
Black, dimensions approx. 270 x 340 x 45 mm (L x W x H), with fastening clamps for standard rails.

Side guard, plastic coated.
Side guard, chrome-plated.
Side guard, made of CrNi steel.
Removable, dimensions approx. 800 x 250 mm (L x H), can be lowered to upholstery height along the fastening clamp. The fastening clamp for standard rail is included.

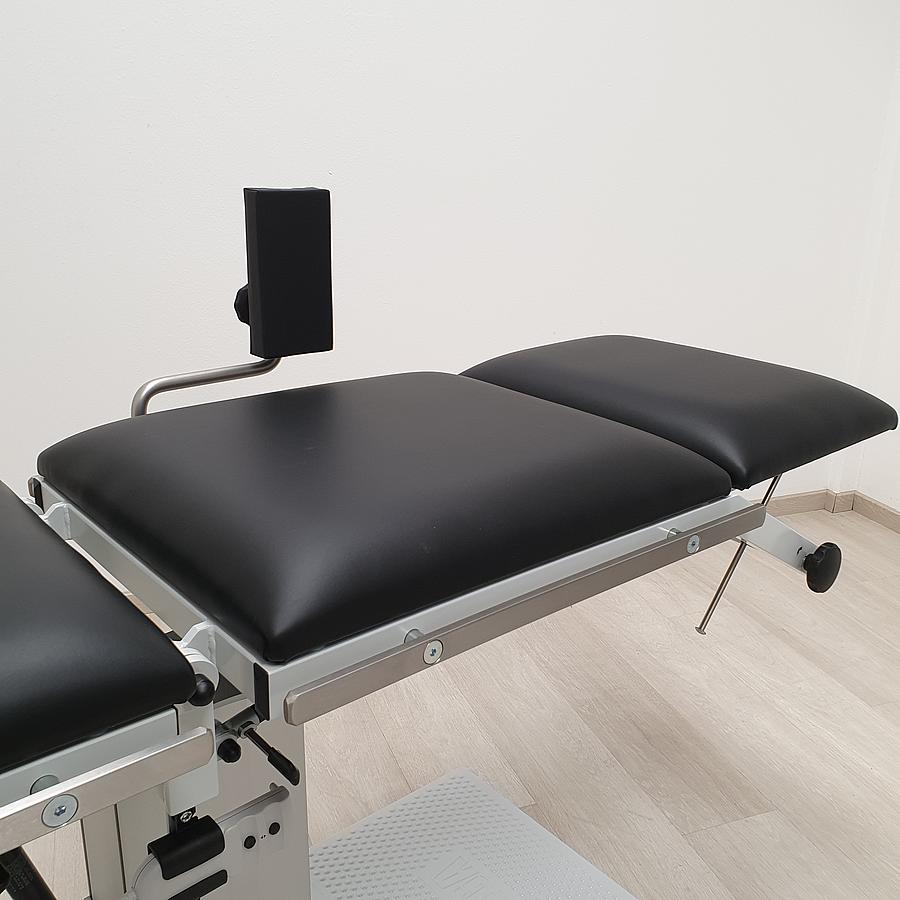

Shoulder/side supports (pair)
Rod with two 90° bends, made of CrNi steel, round Ø 18 mm, black, electrically conductive padding (Dartex® cover), dimensions approx. 200 x 100 mm, upholstery thickness approx. 40 mm, height adjustable and rotating. A pair of fastening clamps for standard rails is required.

Side support
Made of CrNi steel, black, conductive upholstery (Dartex® conductive cover), removable, dimensions approx. 180 x 80 x 30 mm (H x W x D), with fastening clamp for standard rail.

Stainless steel bowl
With holder, dimensions approx. 250 x 190 x 45 mm, located directly under the seat section. Retrofitting is not possible.
