Wall-mounted folding tables
The wall-mounted folding examination tables can be set up quickly and are ideal for rooms with little space.
Wall-mounted folding tables as a space-saving alternative
The wall-mounted folding tables have been developed for rooms in which an assembled table is not permanently needed or in which space is limited. After being mounted on the wall, the folding wall tables are always ready for use quickly, with just a few simple steps.
The wall-mounted folding tables are available in a crosswise or lengthwise mounted version and can be folded up or down. They allow patients to be positioned just as comfortably and safely and offer ergonomic and fatigue-free practice as “standard” examination tables.
The wall-mounted folding tables from AGA Sanitätsartikel are available in three frame finishes (lacquered, chrome-plated and stainless steel) as well as two widths (650 mm and 800 mm).
Features
The 2-section examination tables are the basic models of all our table series in terms of the upholstered segments, the structure, the dimensions and the drilling pattern. The 2-section examination tables stand out with their functionality and are used in many medical fields.
- They are available in two widths:
- Width 650 mm, Article No.: WKL-1065, WKL-2065 and WKL-3065,
- Width 800 mm, Article No.: WKL-1080, WKL-2080 and WKL-3080.
- The stability and robustness is achieved by the gusset plates in the frame corners.
- The tubular steel frames are made of:
- Lacquered blank steel for Article No.: WKL-1065 and WKL-1080,
- Chrome-plated blank steel for Article No.: WKL-2065 and WKL-2080,
- Stainless steel for Article No.: WKL-3065 and WKL-3080.
- The two legs, which can be folded individually apart from each other, are equipped with anti-kinking protection to prevent them from collapsing inadvertently and have floor protectors (impact caps) at the end.
- The thickness of the two upholstery segments (headrest and main surface) are each 64 mm.
- If no height dimension is specified when placing the order for the 650 mm wide wall-mounted folding tables, they will be delivered in a standard height of 700 mm (also available in heights of 750 and 800 mm, at no extra charge).
- The 800 mm wide wall-mounted folding tables are only available in 900 mm height.
- The scope of delivery includes a multi-reinforced wall mount. The complete length is 2,014 mm.
- In the standard version, the cushion is always folded down from the horizontal after use. This means the eye is drawn to the sleek upholstered tabletop (and not to the underside of the table with the frame). The distance from the cushion to the wall is 190 mm.
- The position (right or left side) of the headrest must be specified when placing the order.
- The headrest can be adjusted continuously up to +40° and locked using a clamping handle using a clamping rod mechanism.
Technical data
| Table width 650 mm | ||||
|---|---|---|---|---|
| Article number | WKL-1065 | WKL-2065 | WKL-3065 | |
Frame | Lacquered | Chrome | Stainless steel | |
Length | 1,900 mm | |||
| Width | 650 mm | |||
| Heights (no extra charge) | 700 / 750 / 800 mm | |||
| Upholstery segments | 2 sections | |||
| Upholstery thickness | 64 mm | |||
| Headrest adjustment | +40° (clamping rods) | |||
| Load capacity | 200 kg | |||
| Table width 800 mm | |||
|---|---|---|---|
| Article number | WKL-1080 | WKL-2080 | WKL-3080 |
Frame | Lacquered | Chrome | Stainless steel |
| Length Headrest/main section With wall brackets | 1,900 mm 500 / 1,400 mm 2,014 mm | ||
| Width | 800 mm | ||
| Height | 900 mm | ||
| Upholstery segments | 2 sections | ||
| Upholstery thickness | 64 mm | ||
| Headrest adjustment | +40° (clamping rods) | ||
| Load capacity | 200 kg | ||
The standard configuration includes:
- A multi-reinforced wall attachment.
- Table legs with floor protectors (impact caps).
We offer the coloured lacquer coating of the frames as standard in the following three shades (see frame colour selection card):
- light grey (RAL 7035)
- white aluminum (RAL 9006)
- pure white (RAL 9010).
The high quality finish has a glossy look. It is disinfectant resistant and easy to clean.
Other colours are of course also available. Please let us know the desired RAL colour so that we can find out the corresponding additional costs. Please note, however, that these products are then considered type variants with no right of return.
The artificial leather covers we use are characterized by their tear resistance, durability, longevity and their good cleaning properties as well as their resistance to disinfectants.
We use a (colour) selection from the synthetic leather covers VOWAled Pisa (Vowalon). The colour selection card can be found here.
In addition, we offer you the service of manufacturing the upholstery in other colours or from other synthetic leather manufacturers (type variant). After prior agreement, please send us the relevant references.
The black electrically conductive synthetic leather cover (with equipotential bonding socket on the frame) is available at an additional cost. It is already included in the price of the operating tables and multifunction tables.
Downloads
Image galleries
WKL-2065

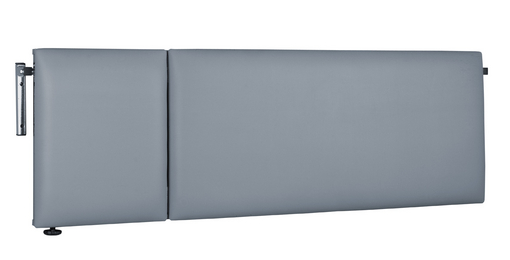

The photo shows the wall-mounted folding table, Article No.: WKL-2065, with the headboard on the left side, in the colours:
- Frame: chrome,
- Upholstery: grey.
WKL-1065

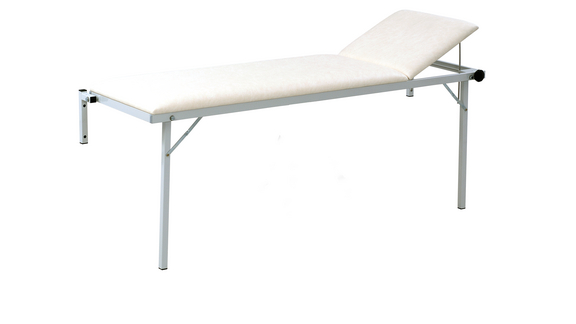

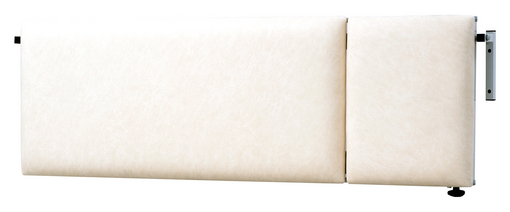

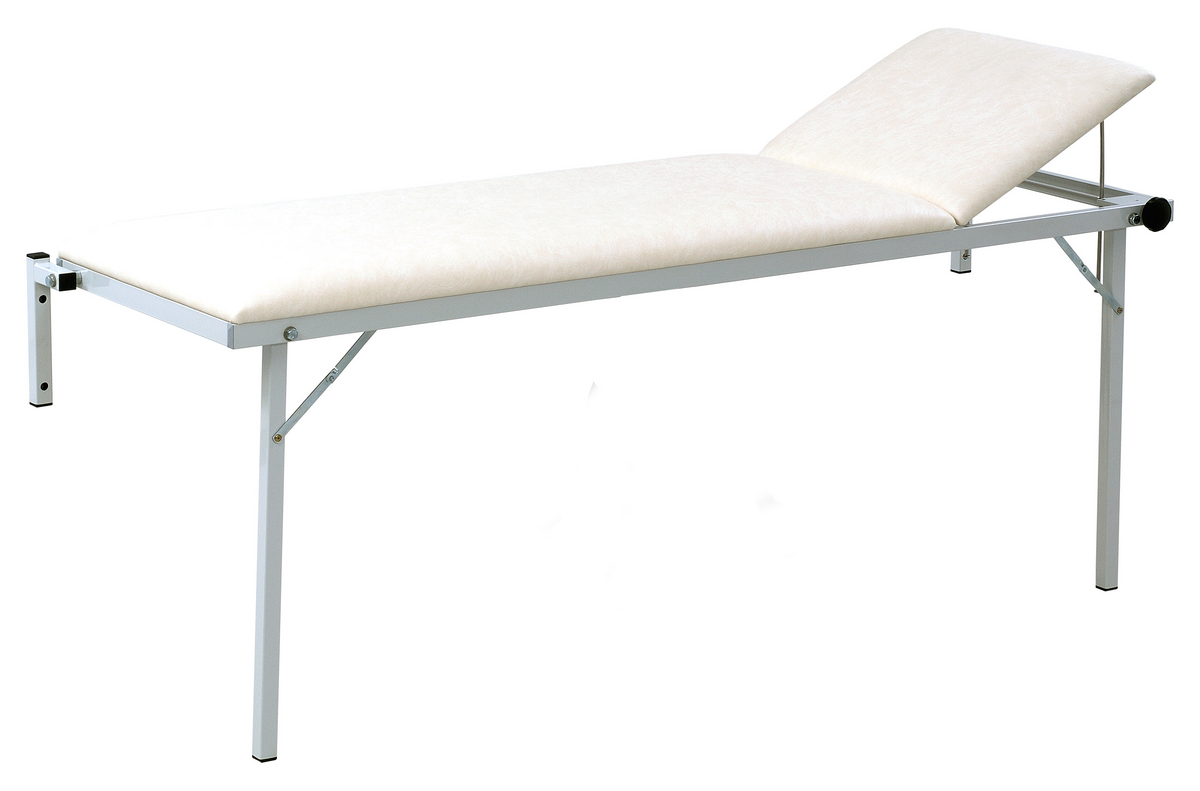

The photo shows the wall-mounted folding table, Article No.: WKL-1065, with the headboard on the right side, in the colours:
- Frame: light grey RAL 7035,
- Upholstery: birch.
Accessories & additional options
Article No. | Description |
|---|---|
GS-1710 | Face cutout in the headrest, oval, dimensions approx. 205 x 105 mm (L x W). Retrofitting is not possible. Upholstered insert for closing the face opening, oval, dimensions approx. 200 x 100 mm (L x W). See upholstery colours. |
HRM-14 | Semi-circular roll, foam filling, dimensions Ø 200 x 400 mm, sewn from synthetic leather, with zipper, see upholstery colours. |
HRM-14/Klett | Semi-circular roll with Velcro fastener (hook and loop straps), foam filling, dimensions Ø 200 x 400 mm, sewn from synthetic leather, with zipper, see upholstery colours. |
| KKM-16 | Head wedge, foam filling, dimensions 450 x 400 x 80 / 10 mm (L x W x H), synthetic leather upholstery, with zipper, see upholstery colours. |
PU-6000 | Paper roll holder, chrome-plated, consisting of two brackets and a paper roll holder rod (length 615 mm, Ø 20 x 1 mm), for wall-mounting. |
RLM-20 | Knee roll, dimensions Ø 180 x 560 mm. Neck roll, dimensions Ø 140 x 400 mm. Round roll, foam filling, sewn from synthetic leather, with zipper, see upholstery colours. |
Product variants
As a manufacturer, we are able to adapt our products to your individual needs. Below, you will find examples of customer-specific requests we have implemented.
Since the folding wall-mounted tables should adapt to your specific premises, they are also available in the following versions:
- Folding upwards horizontally along the wall (headboard: left or right side),
- Folding upwards vertically (headboard: to the wall or towards the middle of the room),
- With an upholstered underside covered with synthetic leather,
- With a one-piece, continuous tabletop,
- With wall brackets all the way down to the floor.
We will be please to provide information about the additional costs on request.
Questions? Contact us today!
Do you have questions about our products or services? Would like to get to know us? Contact us today, we will be pleased to provide expert advice tailored to your needs.
Product videos
Illustration and operation of the continuous headrest adjustment by clamping rod mechanism, Article No.: EKA-1065/AA.
