Treatment tables with an elegant complete design
These treatment tables are a must-have for every practice and every medical health centre.
Treatment tables RU-, RUL- with design and comfort
The treatment tables are used in every doctor's office, clinic and medical facility. Giving patients a comfortable feeling before, during and after the examination is the top priority.
The treatment tables from AGA Sanitätsartikel meet the highest standards. We see Made in Germany not only as a designation of origin, but also as a quality feature. In the area of “simple” examination tables, we offer models that stand out with their clear contours (shown and described on the next pages) and those that meet the highest demands in terms of design.
On this page we present the treatment tables, Article No.: RU-1062 and RUL-6000, which impress with their elegant, complete design. The upholstery frames and couch legs are made from flat oval steel tube profiles. The upholstered tabletop, which are separated from the indented frame, appear to be floating thanks to the spacers.
Features
- The stability and robustness is achieved by the gusset plates in the frame corners.
- The flat oval steel tube frame components of the treatment tables are made of lacquered blank steel.
- The thickness of the two upholstered segments (headrest and main surface) with strongly rounded corners and floating-look are:
- 64 mm, Article No.: RU-1062,
- 47 mm, Article No.: RUL-6000.
- The headrest is adjusted:
- Continuously to -25°/ +30° via gas pressure spring, Article No.: RU-1062.
- Per grid, to +30°, Article No.: RUL-6000.
- The four legs, which are equipped with levelling feet as standard, ensure high stability.
RU-1062
The treatment table, Article No.: RU-1062, is particularly suitable for longer and more time-consuming therapies and examinations thanks to its 64 mm comfort padding.
Compared to other models, the headrest can also be adjusted downwards into the negatives using a gas pressure spring. This makes it particularly popular in physiotherapy and enables, for example, supported hyperextension of the cervical spine.
RUL-6000
The treatment table, Article No.: RUL-6000, has an upholstery thickness of 47 mm. The headboard cushion can be adjusted upwards using a grid.
Technical data
| Treatment tables | ||||||||
|---|---|---|---|---|---|---|---|---|
Article number | RU-1062 | RUL-6000 | ||||||
| Frame | Lacquered | |||||||
| Length Headrest/main section | 1,920 mm | 1,900 mm 500 / 1,400 mm | ||||||
| Width | 620 mm | |||||||
| Height | 700 mm | 680 mm | ||||||
| Upholstery segments | 2 sections | |||||||
| Upholstery thickness | 64 mm | 47 mm | ||||||
| Headrest adjustment | -25° / +30° (gas pressure spring) | +30° (grid) | ||||||
| Load capacity | 150 kg | |||||||
| Levelling feet | ✓ | |||||||
The standard configuration includes:
- Table legs equipped with levelling feet.
We offer the coloured lacquer coating of the frames as standard in the following three shades (see frame colour selection card):
- light grey (RAL 7035)
- white aluminum (RAL 9006)
- pure white (RAL 9010).
The high quality finish has a glossy look. It is disinfectant resistant and easy to clean.
Other colours are of course also available. Please let us know the desired RAL colour so that we can find out the corresponding additional costs. Please note, however, that these products are then considered type variants with no right of return.
The artificial leather covers we use are characterized by their tear resistance, durability, longevity and their good cleaning properties as well as their resistance to disinfectants.
We use a (colour) selection from the synthetic leather covers VOWAled Pisa (Vowalon). The colour selection card can be found here.
In addition, we offer you the service of manufacturing the upholstery in other colours or from other synthetic leather manufacturers (type variant). After prior agreement, please send us the relevant references.
The black electrically conductive synthetic leather cover (with equipotential bonding socket on the frame) is available at an additional cost. It is already included in the price of the operating tables and multifunction tables.
Downloads
pdf | 2 MB
Image galleries
RU-1062

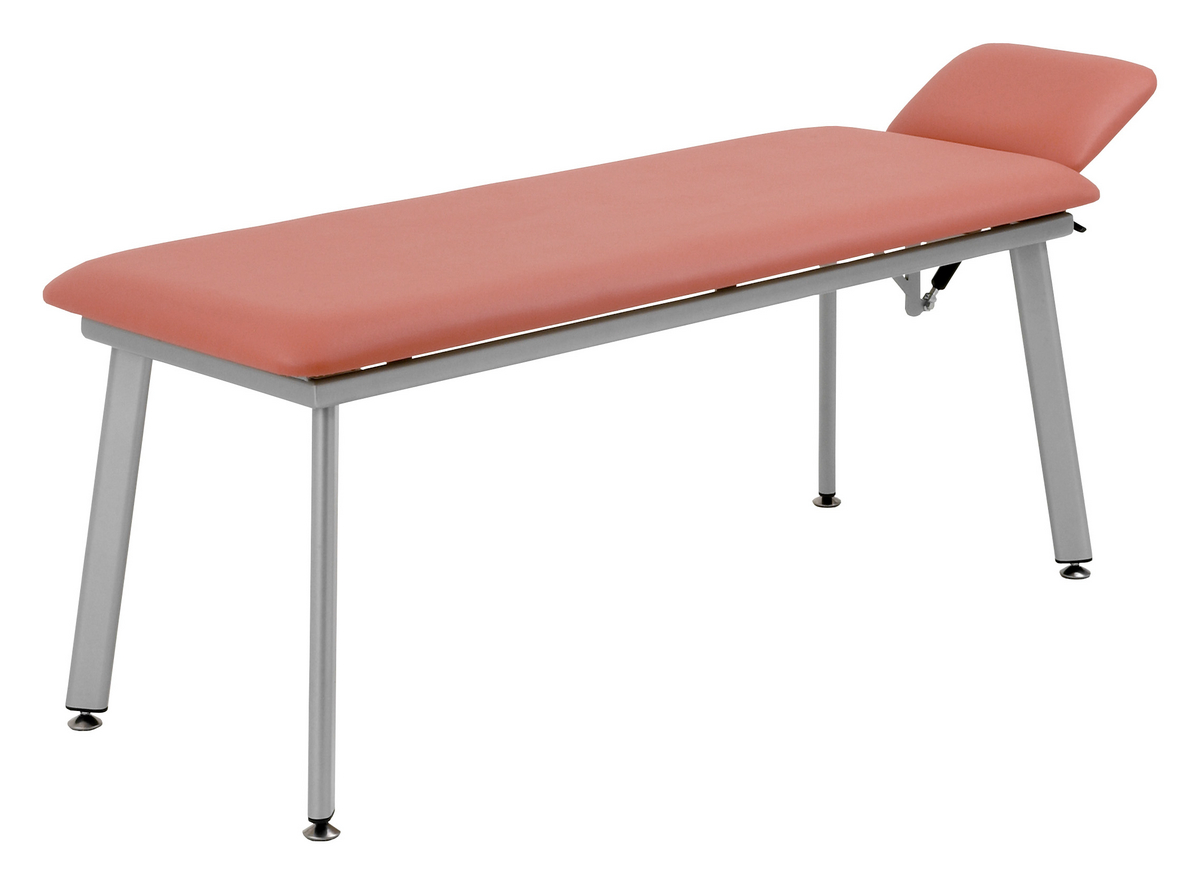

The photo shows the treatment table, Article No.: RU-1062, in the colours:
- Frame: white aluminium RAL 9006,
- Upholstery: rosewood.
RUL-6000
RUL-6000
RUL-6000

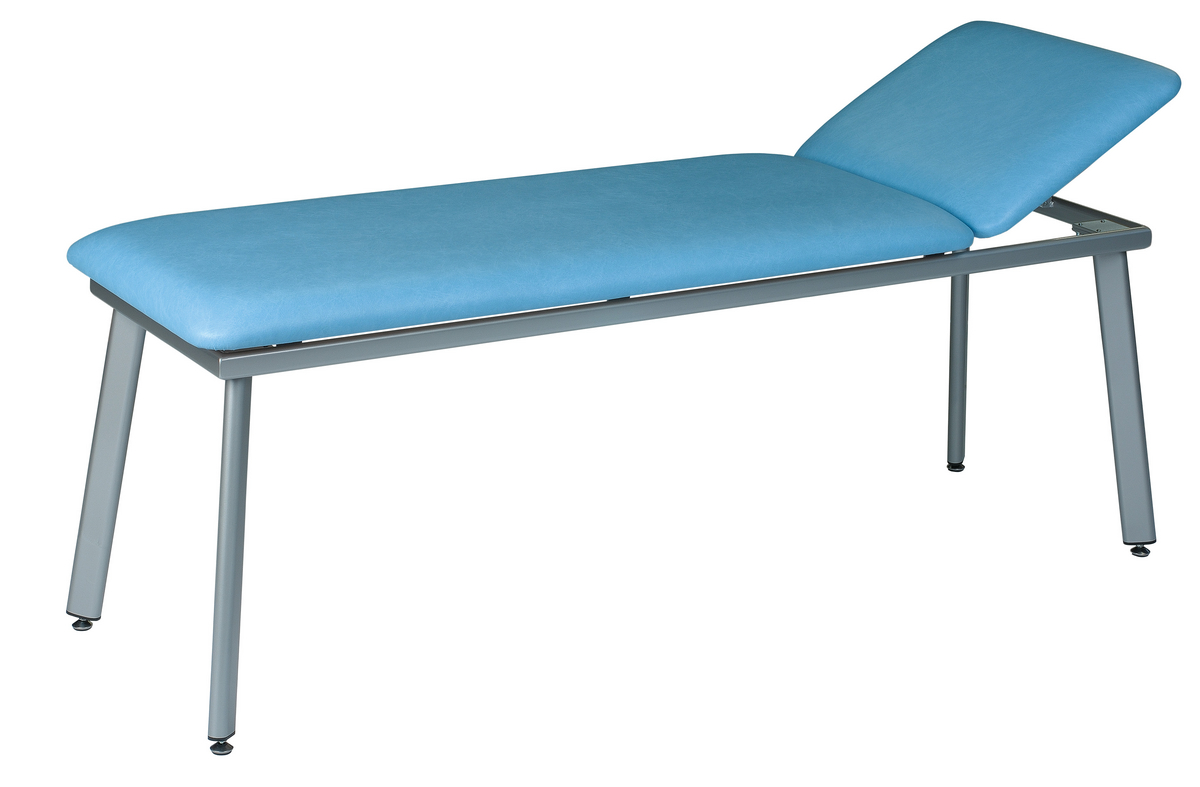

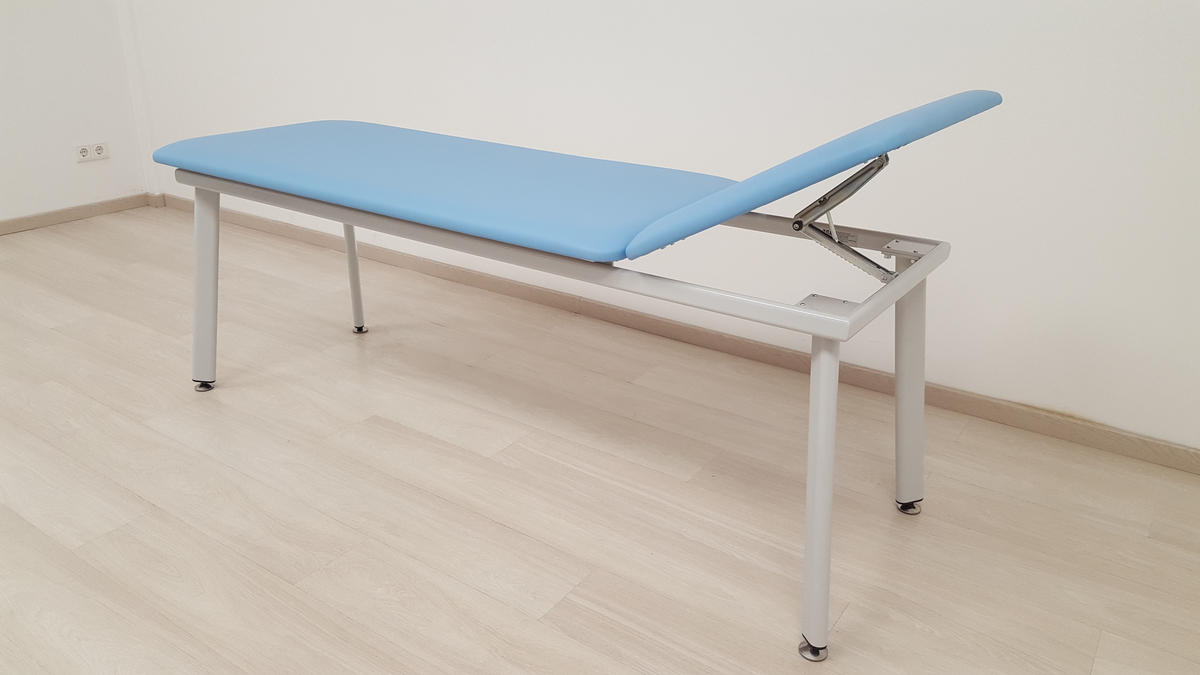

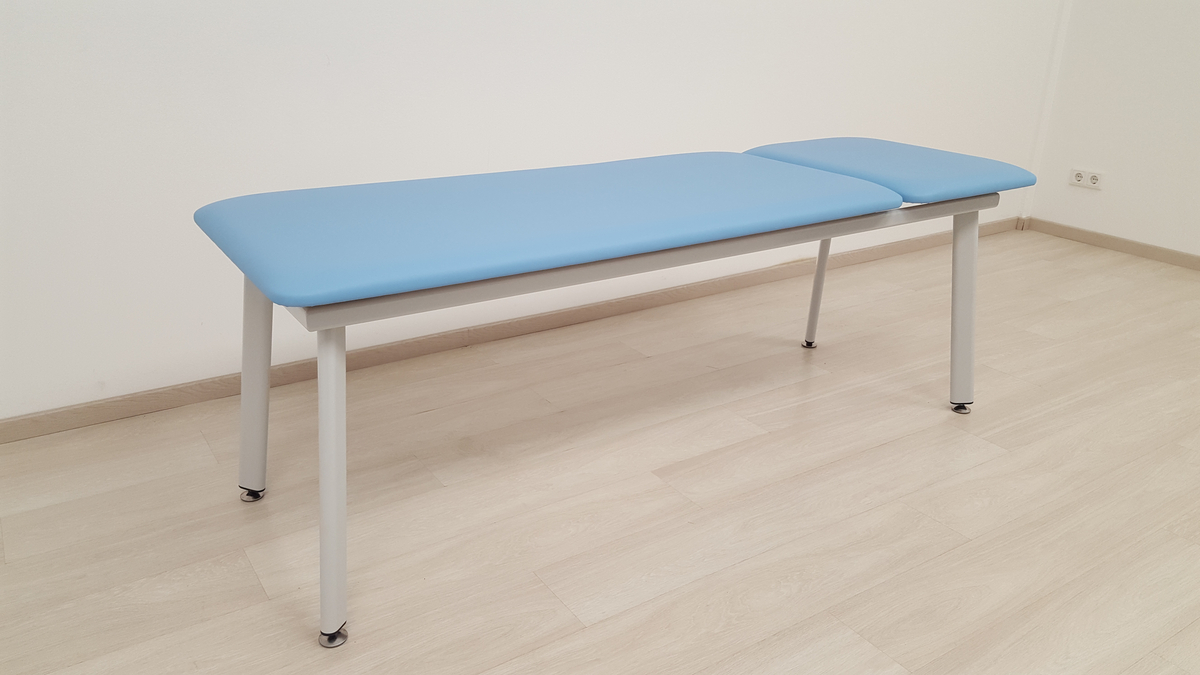

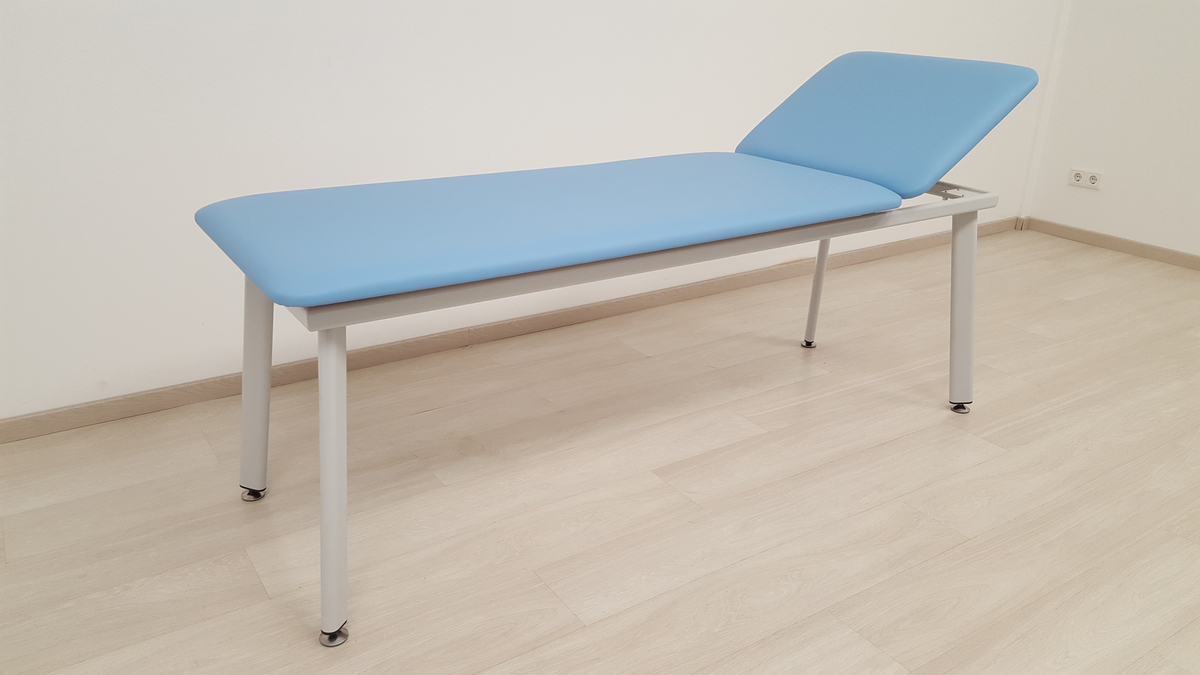

The photos show the treatment table, Article No.: RUL-6000, in the colours:
- Frame: light grey RAL 7035,
- Upholstery: light blue.
Accessories & additional options
Article No. | Description |
|---|---|
HRM-14 | Semi-circular roll, foam filling, dimensions Ø 200 x 400 mm, sewn from synthetic leather, with zipper, see upholstery colours. |
HRM-14/Klett | Semi-circular roll, foam filling, dimensions Ø 200 x 400 mm, Velcro fastener (hook and loop straps), sewn from synthetic leather, with zipper, see upholstery colours. |
| KKM-16 | Head wedge, foam filling, dimensions 450 x 400 x 80 / 10 mm (L x W x H), sewn from synthetic leather, with zipper, see upholstery colours. |
| KVG | Headrest adjustment via gas pressure spring (instead of clamping rod mechanism), can be operated with just one hand, release button located directly on the headboard cushion. Retrofitting is not possible. |
| PG-220 PG-260 | Patient belt, dimensions 2,200 x 250 mm (L x W), for 650 mm wide tables. Patient belt, dimensions 2,600 x 250 mm (L x W), for 800 mm wide tables. Sewn from synthetic leather, with Velcro fastener (hook and loops straps), see upholstery colours. |
PU-5500 | Paper roll holder, chrome-plated, consisting of two brackets and a paper roll holder bar (length 545 mm, Ø 20 x 1 mm), for mounting (from below) on the upholstered headboard. |
RLM-20 | Knee roll, dimensions Ø 180 x 560 mm. Neck roll, dimensions Ø 140 x 400 mm. Round roll, foam filling, sewn from synthetic leather, with zipper, see upholstery colours. |
Product variants
As a manufacturer, we are able to adapt our products to your individual needs. Below, you will find examples of customer-specific requests we have implemented.
RU-1062
RU-1062
RU-1062
RU-1062
RU-1062
RU-1062

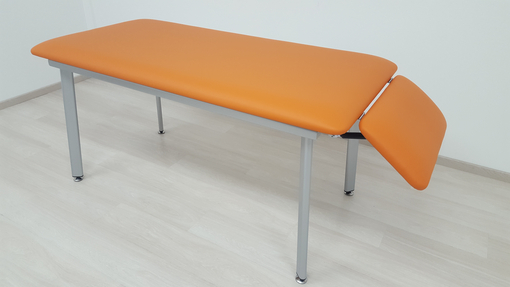

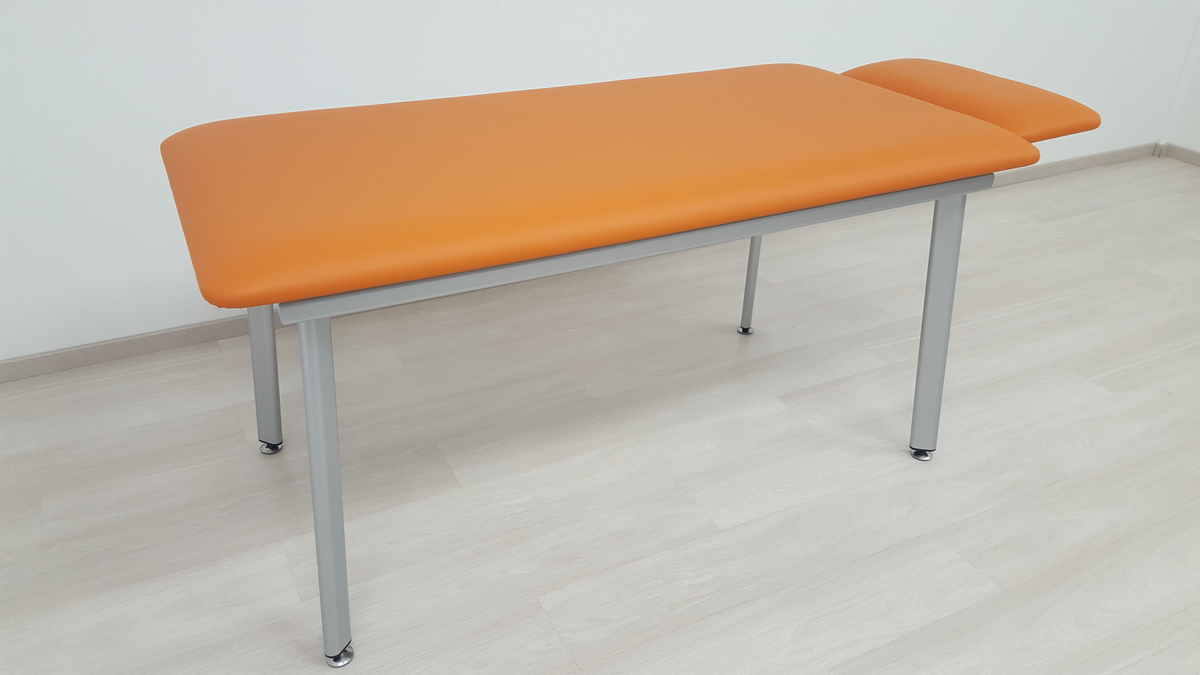

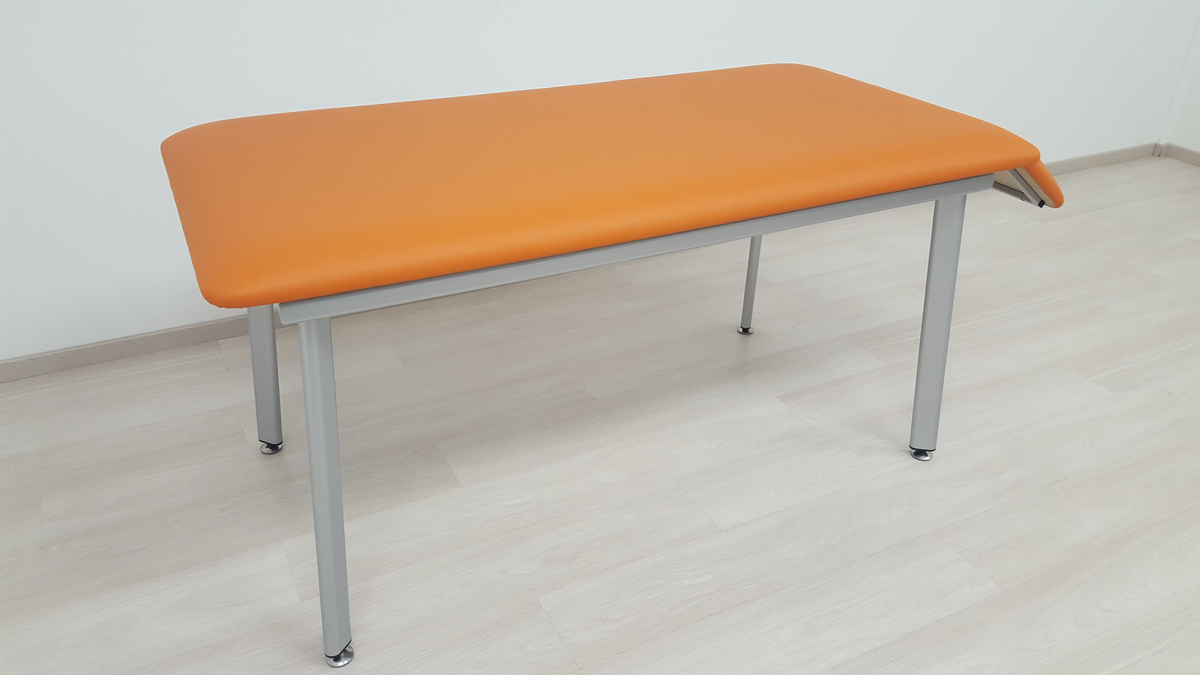

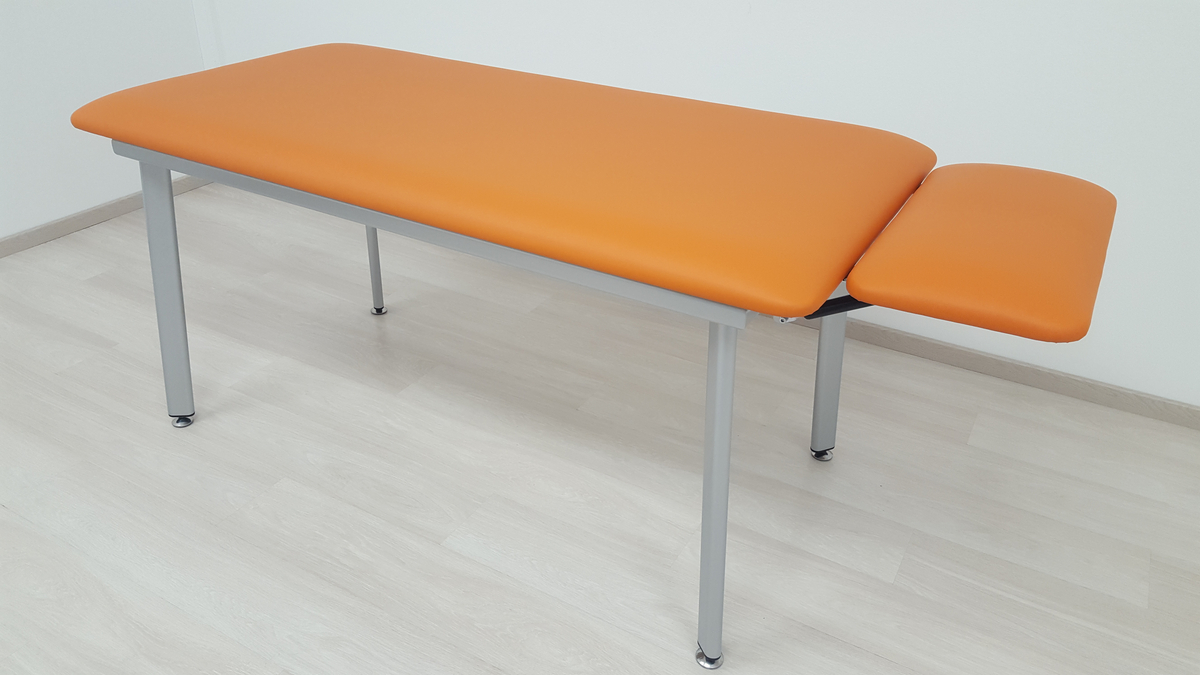

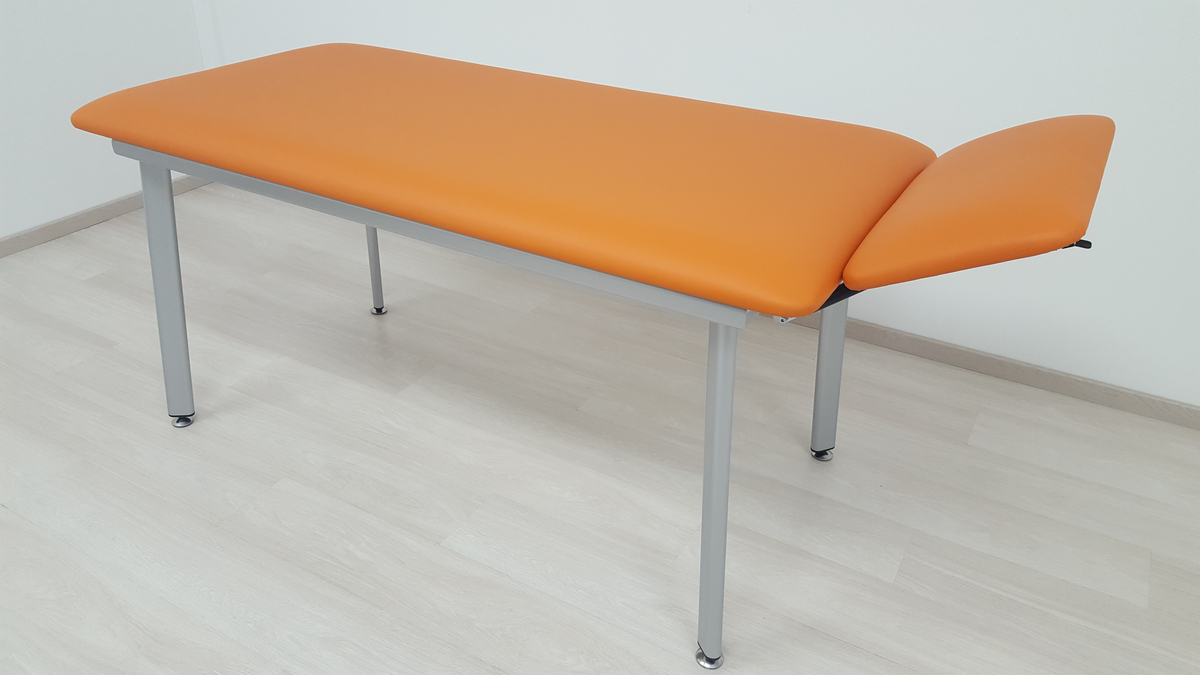

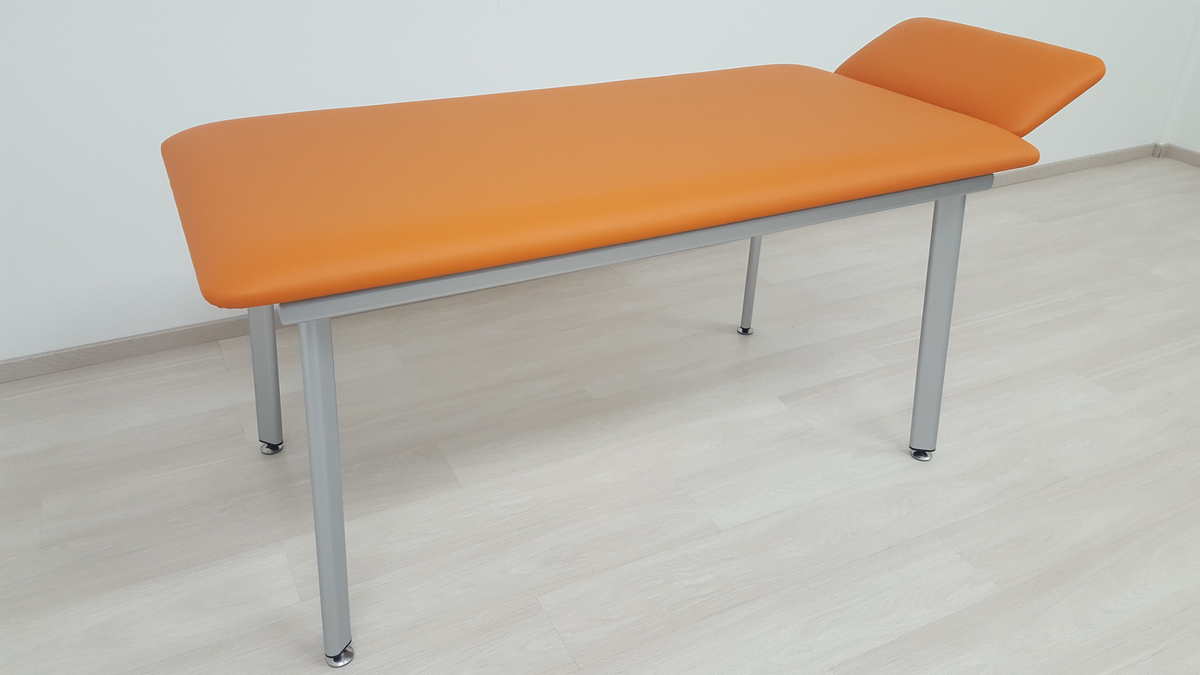

The photos show the treatment table, Article No.: RU-1062, with upholstery width 800 mm and table height 800 mm, in the colours:
- Frame: white aluminium RAL 9006,
- Upholstery: tangerine.
RULI-6000
RULI-6000
RULI-6000

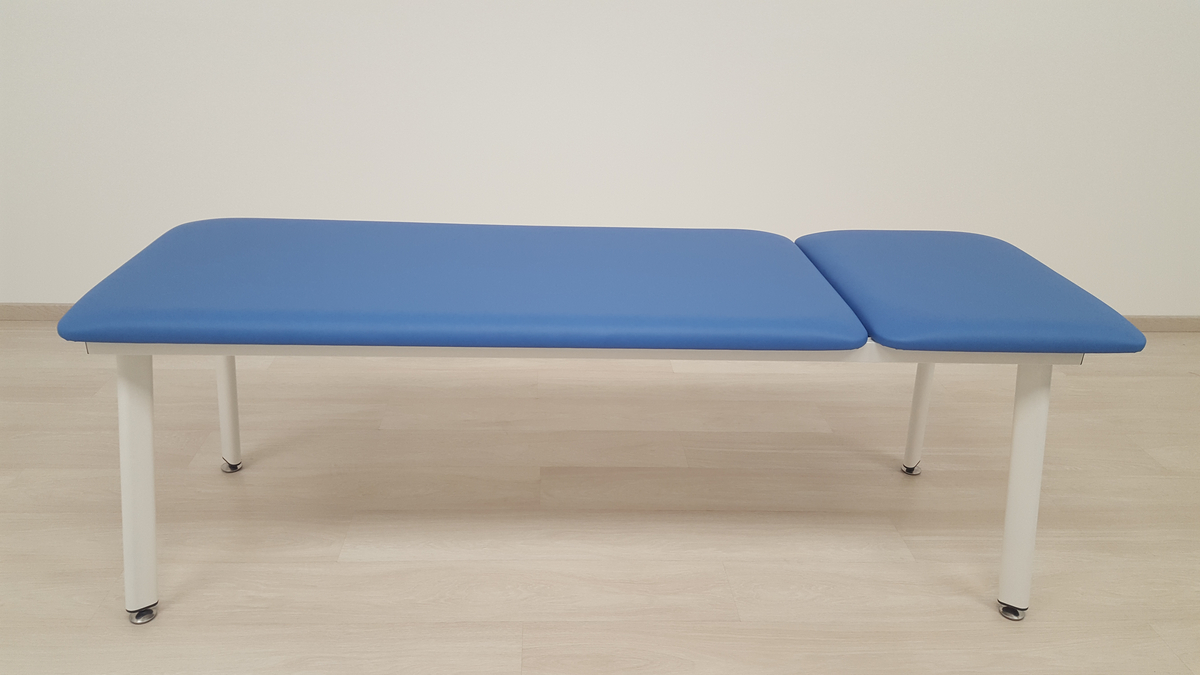

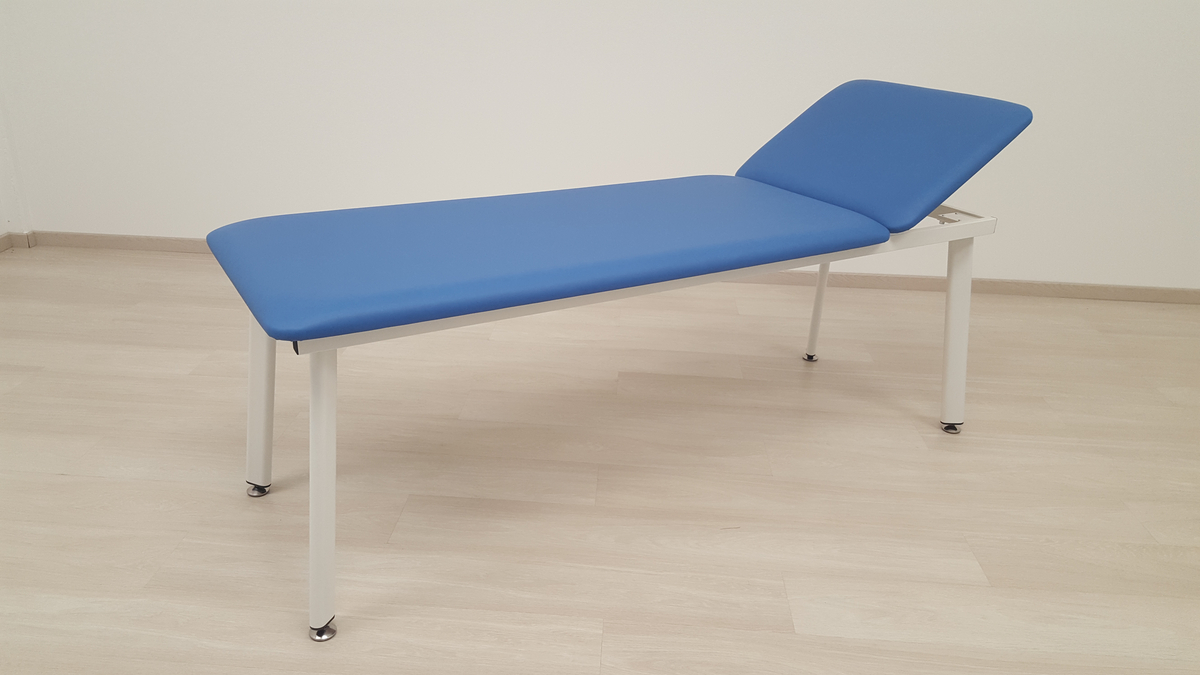

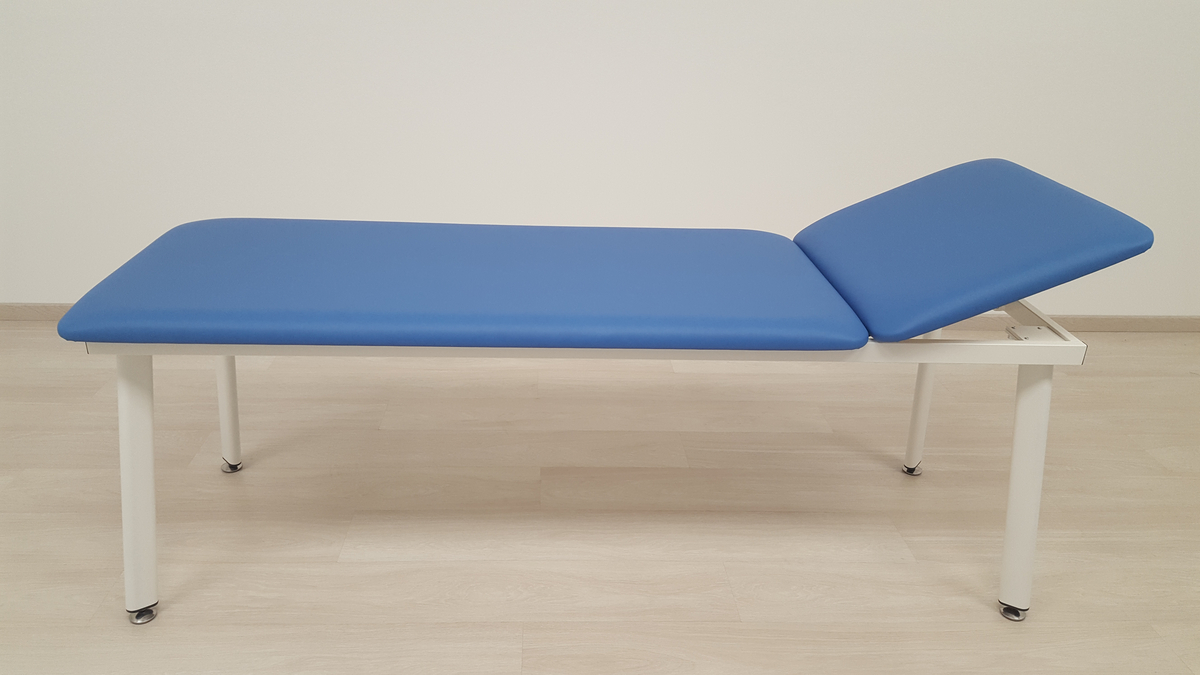

The photos show the treatment table, Article No.: RUL-6000, with the upholstery screwed to the upholstery frame (without spacers), in the colours:
- Frame: light grey RAL 7035,
- Cushion: atoll.
