Sono-Echo-Cardiography table - 4-section table top with removable cushion insert

Sono-echocardiography tables

The sono-echocardiography tables combine the requirements for patient positioning for sonography and echocardiography examinations in one product. These sono-echocardiography tables also have a cutout in the main surface for cardiac examinations.

Sono-echocardiography tables with removable cushion insert

The sono-echocardiography tables are available with a 4-section tabletop and fixed height. The adjustable roof position allows the spine to be relieved, for example. Ultrasound can also be used to visualize nerves and the structure of the spine. Sonographically guided injections into vertebral joints or nerve roots can reduce pain and thus enable further forms of treatment such as physiotherapy. The head-down position adjustment is preferred for sonographic assessments of the soft tissues of the neck, for example the thyroid gland. The cutout in the lying surface is specially designed for cardiac examinations using a transducer.

The sono-echocardiography tables from AGA Sanitätsartikel are available in three versions:

  • Article No.: SO-ZEKA 1065, whereby the two halves of the table can be adjusted using gas pressure springs. The required examination position must be set beforehand, i.e. without the patient.

  • Article No.: SO-ZEKA 1065/E, whereby the most heavily loaded half of the table (head/back section) is electrically adjustable. The leg section is adjusted using a gas pressure spring.

  • Article No.: SO-ZEKA 1065/EE, whereby the two halves of the table are electrically adjustable. The required examination position can be adjusted with the patient.

Sono-Echo-Kardiographieliege mit Ausschnitt - SO-ZEKA 1065
Sono-echocardiography table with gas pressure spring adjustment of the table halves, Article No.: SO-ZEKA 1065
Sono-echocardiography table with electric adjustment of the table halves, Article No.: SO-ZEKA 1065/EE

Features

  • As the upholstery sections can be controlled separately, a horizontal upholstery position can be set from the roof position via the Trendelenburg or anti-Trendelenburg positions. There is a cutout in the back section for cardiac examination using a transducer. The corresponding padding insert (slide-in) is included with every sono-echocardiography table.
  • The wide base frame ensures high stability. The four adjustable feet are fitted with floor protectors (impact caps).
  • The thickness of each of the three upholstery segments is 64 mm.
  • The sono-echocardiography tables have a height of 700 mm (with the upholstery in the horizontal position).
  • The headrest can be adjusted continuously +40°/-30°. It is locked in place by a handle with a clamping rod mechanism.


SO-ZEKA 1065

  • The reclining halves, head/back and leg sections can be continuously adjusted positively and negatively (+20°/-17°) by means of gas pressure springs and locked by clamping handles using clamping rod mechanisms. The required examination positions must be set beforehand, i.e. without the patient.

SO-ZEKA 1065/E

  • The most heavily loaded half of the table, the head/back section, can be continuously adjusted positively and negatively (+20°/-17°) using an electric motor. It is controlled by a foot switch (alternatively - at no extra charge - by hand switch). This adjustment can of course also be made with heavier patients (up to 200 kg). The adjustment system is equipped with a button lock. Motor connection values: 230V, 50/60 Hz, 3.7A, 850W, IPX4, v=11mm/s, 10,000N. The other half of the table, the foot section, is equipped with a continuous (+20°/-17°) gas pressure spring adjustment. It is locked in place by a clamping handle with a clamping rod mechanism.

SO-ZEKA 1065/EE

  • The reclining halves, head/back and leg sections, are each continuously adjustable positively and negatively (+20°/-17°) by an electric motor. They are controlled by foot switches (alternatively - at no extra charge - by hand switch). These adjustments can of course also be made with heavy patients (up to 200 kg). The adjustment systems are equipped with button locks. Motor connection values (each motor): 230V, 50/60 Hz, 3.7A, 850W, IPX4, v=11mm/s, 10,000N.

Technical details

 Sono-echocardiography tables
Article numberSO-ZEKA 1065SO-ZEKA 1065/ESO-ZEKA 1065/EE
FrameLacquered
Length
Head to leg sections

1,900 mm
350 / 600 / 950 mm

Width650 mm
Height700 mm
Upholstery segments4 sections
Upholstery thickness64 mm
Head section adjustment-30°/+40° (clamping rods)
Cutout405 x 300 (L x W)
Head/back section adjustment-17°/+20°
(gas pressure spring)

-17°/+20°

(electric motor)

-17°/+20°

(electric motor)
Leg section adjustment

-17°/+20°
(gas pressure spring)

-17°/+20°
(gas pressure spring)		-17°/+20°
(electric motor)
Trendelenburg adjustment17°
Anti-Trendelenburg adjustment17°
Load capacity200 kg
The standard version includes:
  • Slide-in cushion insert for closing the echo cutout.
  • Floor protectors (impact caps) on the four adjustable feet.

We offer the coloured lacquer coating of the frames as standard in the following three shades (see frame colour selection card):

  • light grey (RAL 7035)
  • white aluminum (RAL 9006)
  • pure white (RAL 9010).

The high quality finish has a glossy look. It is disinfectant resistant and easy to clean.

Other colours are of course also available. Please let us know the desired RAL colour so that we can find out the corresponding additional costs. Please note, however, that these products are then considered type variants with no right of return.

The artificial leather covers we use are characterized by their tear resistance, durability, longevity and their good cleaning properties as well as their resistance to disinfectants.

We use a (colour) selection from the synthetic leather covers VOWAled Pisa (Vowalon). The colour selection card can be found here.

In addition, we offer you the service of manufacturing the upholstery in other colours or from other synthetic leather manufacturers (type variant). After prior agreement, please send us the relevant references.

The black electrically conductive synthetic leather cover (with equipotential bonding socket on the frame) is available at an additional cost. It is already included in the price of the operating tables and multifunction tables.

Image gallery

The photos show the sono-echocardiography table, Article No.: SO-ZEKA 1065/EE, in the colours:

  • Frame: light grey RAL 7035,
  • Upholstery: birch.

Accessories & additional options

Article No.

Description
HRM-14
KKM-16

Semi-circular roll, foam filling, dimensions Ø 200 x 400, sewn from synthetic leather, with zipper, see upholstery colours.
Head wedge, foam filling, dimensions 450 x 400 x 80 / 10 mm (L x W x H), sewn from synthetic leather, with zipper, see upholstery colours.

LR-75
LR-125		Set of castors, castors Ø 75 mm.
Set of castors, castors Ø 125 mm.
Four swivel castors, two castors are completely lockable.
LR/Z-125Central locking castor system, double swivel castors Ø 125 mm, all four castors offer excellent rolling properties and are connected to each other by rods, foot pedals are arranged diagonally at the head and foot end, easy to operate and with coloured markings (green = table ready for moving, red = table locked in place). Retrofitting is not possible.
NF-30

Levelling feet, set (4 pieces), impact caps with levelling feet, for square steel tube 30 x 30 mm.

OPS-40/A
OPS-60/A

Standard rails (pair), approx. length 400 mm.
Standard rails (pair), approx. length 600 mm.
Made of CrNi steel, dimensions approx. 25 x 10 mm, for mounting on the upholstery frame, approx. 13.5 mm away from the upholstery/upper frame with 2 spacers each. Retrofitting is not possible.

PU-6000

Paper roll holder, chrome-plated, consisting of two brackets and a paper roll holder rod (length 615 mm, Ø 20 x 1 mm), for mounting (from below) on the upholstered headboard.

RLM-20
RM-12

Knee roll, dimensions Ø 180 x 560 mm.
Neck roll,Dimensions Ø 140 x 400 mm.
Round roll, foam filling, sewn from synthetic leather, with zipper, see upholstery colours.

Product variants

As a manufacturer, we are able to adapt our products to your individual needs. Below, you will find examples of customer-specific requests we have implemented.

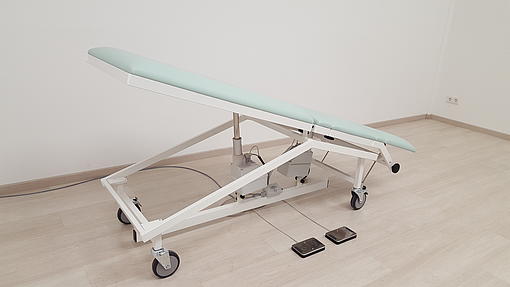

The photos show the sono-echocardiography table, Article No.: SO-ZEKA 1065/EE, in the colours:

  • Frame: pure white RAL 9010,
  • Upholstery: ice

as well as the additional accessories and equipment components:

  • Set of castors, Ø 125 mm, Article No.: LR-125, for table height 700 mm.

The photos show the sono-echocardiography table, Article No.: SO-ZEKA 1065, with a second echo cutout in the leg section - echo cutouts are arranged diagonally - and in the colours:

  • Frame: light grey RAL 7035,
  • Upholstery: atoll

as well as the additional accessories and equipment components:

  • Set of castors, Ø 75 mm, Article No.: LR-75, for table height 700 mm.
