AGA-RE-PRO-LIFT and AGA-RE-PRO-MED Examination chairs for proctology and rectoscopy
AGA-RE-PRO-LIFT and AGA-RE-PRO, user-friendly and durable chairs for proctology and rectoscopy for examination in the knee-elbow position. Thanks to their adjustment options and equipment components, they offer the best possible examination basis for every user.
AGA-RE-PRO-LIFT and AGA-RE-PRO-MED proctology & rectoscopy examination chairs with electric adjustments
The AGA-RE-PRO-LIFT, Article No.: RPL-1060/EE, and AGA-RE-PRO-MED, Article No.: RP-1058/E, examination chairs have been specially developed for proctology and rectoscopy. They are each equipped with an electric motor for seat section adjustment.
In addition to the electric seat adjustment, the AGA-RE-PRO-LIFT also has an electric height adjustment (650 - 850 mm), while the AGA-RE-PRO-MED has a raised seat position (865 mm).
The working height can be adjusted continuously using the full motorized adjustment range up to 1,160 mm / 1,175 mm (measured at the front edge of the seat).
The ergonomically shaped seat cushions and backrest cushions ensure a very high level of comfort. The integration of a foam wedge in the back section eliminates the need for an additional neck roll. A cutout is incorporated in the seat section.
Article No.: BKO-2522, and a rectoscopy roll, Article No.: RRH-65
Features
- The AGA-RE-PRO-LIFT examination chair is equipped with electric height adjustment (650 - 850 mm). Thanks to the precision double square guides, the height adjustment takes place without lateral offset.
- The seat cushions on the AGA-RE-PRO-MED can be easily reached via a foot step mounted on the floor frame. The tread of the footrest is made of polyethylene and has an anti-slip surface. The foot step can simply be folded back towards the column so that it does not interfere with examinations.
- A Trendelenburg position of 30° can be achieved with the help of the electric seat elevation and the adjustable back section.
- The backrest section can be adjusted up to + 54° using a gas pressure spring.
- The maintenance-free and extremely quiet electric drives used are controlled by foot switches (alternatively - at no extra charge - by hand switches). The adjustment systems are equipped with key locks. Motor connection values (each): 230V, 50/60 Hz, 3.7A, 850W, IPX4, v=11mm/s, 10,000N.
- The floor frame, which is fitted with levelling feet, ensures a secure stand.
- The impact- and scratch-resistant covers of the column and base frame, like all other components, are easy to clean and keep hygienically clean.
- The different upholstery thicknesses of the seat (85 mm) and backrest (85 - 135 mm) provide very pleasant seating comfort. This is achieved through the use of different, coordinated foam densities.
- There is a cutout in the seat cushion.
- A pair of standard rails, made of stainless steel, dimensions 25 x 10 mm, length 350 mm, are attached to the side of the seat section to accommodate the rector roll and leg support systems.
- The holder of the stainless steel tray included in the scope of delivery, dimensions 300 x 200 x 65 mm (L x W x H), is fixed to the upper cover. To the right and left of it are three Allen screws for attaching a colposcope holder.
- An earthed socket is integrated into the back of the column, for example for connecting a colposcope.
Technical details
| AGA-RE-PRO-LIFT | AGA-RE-PRO-MED | |||
|---|---|---|---|---|
| Article number | RPL-1060/EE | RP-1058/E | ||
| Frame | Lacquered | |||
Length | 1,150 mm 800 / 350 mm | |||
| Widths | 580 mm (640 mm with standard rails) | |||
| Height adjustment | 650 - 850 mm (electric motor) | - | ||
| Height adjustment | - | 865 mm | ||
| Upholstery segments | 2 sections | |||
| Upholstery thickness seat section | 85 mm | |||
| Upholstery thickness back section | 85 - 135 mm | |||
| Seat section adjustment | +30° (electric motor) | |||
| Backrest adjustment | 0°/+54° (gas pressure spring) | |||
| Trendelenburg adjustment | 30° | |||
| Foot step | - | 490 x 320 x 250 mm (W x D x H) | ||
| Load capacity | 200 kg | |||
The standard version includes:
- A pair of standard rails attached to the side of the seat.
- Supports (right / left side) for a colposcope holder.
- An earthed socket on the back of the column.
- A cutout in the seat cushion.
- A stainless steel tray with holder.
- A paper roll holder attached to the back section.
- A floor frame with levelling feet.
- The foot switch(es).
- A fold-away footrest (only for the AGA-RE-PRO-MED).
- A knee plate (only for the AGA-RE-PRO-MED).
We offer the coloured lacquer coating of the frames as standard in the following three shades (see frame colour selection card):
- light grey (RAL 7035)
- white aluminum (RAL 9006)
- pure white (RAL 9010).
The high quality finish has a glossy look. It is disinfectant resistant and easy to clean.
Other colours are of course also available. Please let us know the desired RAL colour so that we can find out the corresponding additional costs. Please note, however, that these products are then considered type variants with no right of return.
The artificial leather covers we use are characterized by their tear resistance, durability, longevity and their good cleaning properties as well as their resistance to disinfectants.
We use a (colour) selection from the synthetic leather covers VOWAled Pisa (Vowalon). The colour selection card can be found here.
In addition, we offer you the service of manufacturing the upholstery in other colours or from other synthetic leather manufacturers (type variant). After prior agreement, please send us the relevant references.
The black electrically conductive synthetic leather cover (with equipotential bonding socket on the frame) is available at an additional cost. It is already included in the price of the operating tables and multifunction tables.
Downloads
pdf | 1 MB
Image galleries

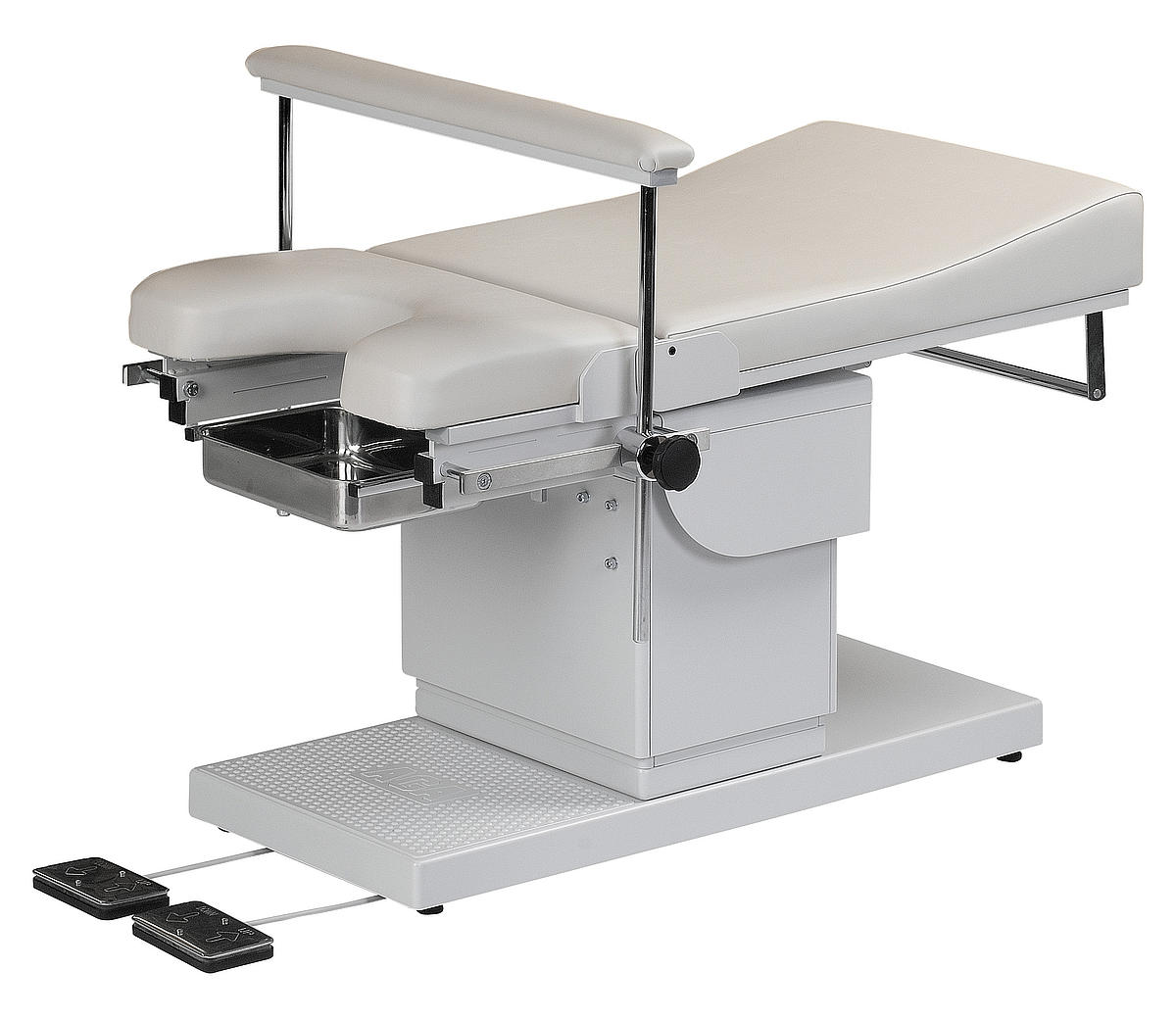

RPL-1060/EE, BKO-2522, RRH-65
The photo shows the proctology and rectoscopy examination chair AGA-RE-PRO-LIFT, Article No.: RPL-1060/EE, in the colours:
- Frame: light grey RAL 7035,
- Upholstery: light grey
as well as the additional accessories and equipment components:
- Pair of fastening clamps, Article No.: BKO-2522,
- Rectoscopy roll, Article No.: RRH-65.
RP-1058/E, BKO-2522, RRH-65, RL-2060
The photo shows the proctology and rectoscopic examination chair AGA-RE-PRO-MED, Article No.: RP-1058/E, in the colours:
- Frame: light grey RAL 7035,
- Upholstery: atoll
as well as the additional accessories and equipment components:
- Pair of fastening clamps, Article No.: BKO-2522,
- Rectoscopy roll, Article No.: RRH-65,
- Pair of ring armrests, Article No.: RL-2060.
Accessories & additional options
Article No. | Description |
|---|---|
| BH-2511 | Leg rests (pair), with plastic shells, rods with a 90° bend, chrome-plated, holder for fastening clamps Ø 18 mm, with Velcro fasteners to secure the legs to the leg shells. A pair of fastening clamps for standard rails is required. |
| BHG-600 | Göpel leg rests (pair), with spherical joints, rods with two 90° bends, chrome-plated, Ø 18 mm, black PU-foam supports, includes straps sewn from synthetic leather with Velcro closure to secure the legs to the shells. A pair of fastening clamps for standard rails is required. |
| BKG-600 | Göpel fastening clamps (pair), for standard rails (dimensions 25 x 10 mm), chrome-plated, for leg holder rods Ø 18 mm. The leg holders can be adjusted in height and tilt using toothed rings and secured with a clamping mechanism. |
| BKO-2522 | Fastening clamps (pair), for standard rails (dimensions 25 x 10 mm), chrome-plated, for leg rest holders Ø 18 mm, the leg rests can be secured at the desired height with a clamping handle. |
BP-460 | Leg plate, to insert under the seat section of the proctology examination chairs, chrome-plated insertion guides (square steel tube 25 x 25 x 2 mm), lacquered upholstery frame, cushion dimensions 580 x 350 mm (W x D), thickness 64 mm, upholstered with synthetic leather, see upholstery colours. |
ERV | Electric backrest adjustment instead of gas pressure spring. The maintenance-free and extremely quiet electric drive used is controlled by a foot switch (alternatively - at no extra charge - by hand switch). The adjustment system is equipped with a key lock. Motor connection values: 230V, 50/60 Hz, 1.5A, 350W, IPX4, v=6mm/s, 4,000N. |
FES-2000 | Heel supports (pair), rods with a 90° bend and half-round loop, chrome-plated, holder for fastening clamps Ø 18 mm. A pair of fastening clamps (Article No.: BKG-600) for standard rails is required. |
| FUS-2000 | Footrests (pair), slightly curved rod, Ø 30 x 2 mm, holder for fastening clamp Ø 18 mm, chrome-plated, synthetic leather cover with Velcro closure, with adjustable footrests and non-slip coating. A pair of fastening clamps (Article No.: BKG-600) for standard rails is required. |
| GBH-2000 | Göpel leg holders (pair), with ball joints, rods (Ø 30 x 2 mm) with two bends, holder for fastening clamps Ø 18 mm, chrome-plated, synthetic leather cover with Velcro Velcro closure, black PU-foam pads, includes straps sewn from synthetic leather with Velcro closures to secure the legs to the leg shells. A pair of fastening clamps (Article No.: BKG-600) for standard rails is required. |
KP-1058 | Knee plate, to insert under the seat cushion of the examination chairs, chrome-plated insertion guides (square steel tube 25 x 25 x 2 mm), lacquered upholstery frame, cushion dimensions 520 x 170 mm (W x D), thickness 64 mm, upholstered with synthetic leather, see upholstery colours. |
RRH-65 | Rectoscopy roll, height-adjustable, dimensions 740 x 65 x 550 mm (W x D x H), holder for fastening clamps Ø 18 mm, chrome-plated rods, upholstered with synthetic leather, see upholstery colours. |
The components listed above are only a small selection. The following accessories are also available: infusion stand, colposcope holder, positioning aids, mobile base with central locking castor system, standard rails, rectoscopy roll, ring armrests.
Product variants
As a manufacturer, we are able to adapt our products to your individual needs. Below, you will find examples of customer-specific requests we have implemented.
The examination chairs can be fitted with a synthetic leather cover in a different colour or a seat cushion without a cutout. We will be pleased to provide further pricing information upon request.
