Examination units

Examination units, consisting of an examination table in combination with mobile and hanging cabinets for storing equipment for daily practice needs, as well as appropriate seating furniture.

Examination units

Examination units ensure that examinations run smoothly by keeping frequently used materials and aids always quickly at hand. For this reason, AGA Sanitätsartikel offers examination tables in combination with mobile and hanging cabinets. Seating furniture, such as examination stools or swivel stools, can round off the examination unit.

We present three variants of these units on this page. The respective components are of course also individually available for purchase.

Features

AGA Untersuchungsheinheit BUD-6265
Examination unit, Article No.: BUD-6265

BUD-6265

The examination unit, Article No.: BUD-6265, consists of:

  • The treatment table, Article No.: ULI-6000, with
  • The paper roll holder rod between the table legs, Article No.: P-30530,
  • The mobile drawer unit with three drawers, Article No.: HB-580/3, but with synthetic leather covered panels,
  • The swivel stool, Article No.: DH-2000.
AGA Untersuchungseinheit SSL-6558
Examination unit, Article No.: SSL-6558

SSL-6558

The examination unit, Article No.: SSL-6558, consists of:

  • The examination table, Article No.: U-1065,
  • The base cabinet with two drawers, Article No.: HB-580/2, for hanging,
  • The base cabinet with three drawers, Article No.: HB-580/3, also for hanging.
AGA Untersuchungseinheit UEH-5865
Examination unit, Article No.: UEH-5865

UEH-5865

The examination unit, Article No.: UEH-5865, consists of:

  • The examination table, Article No.: U-1065,
  • The base cabinet with three drawers, Article No.: US-580/3,
  • The base cabinet with two drawers, Article No.: US-580/2.

Technical data

 Examination units
Article numberBUD-6265SSL-6558UEH-5865
FrameLacquered

Length
Headrest/main section

1,900 mm

500 / 1,400 mm
Width650 mm
Heights (no extra charge)650 mm650 / 700 / 750 / 800 mm

Upholstery segments

2 sections

Upholstery thickness

47 mm64 mm

Headrest adjustment

+30° (grid)+40° (clamping rods)

Load capacity

150 kg200 kg

Paper roll holder

✓-
Drawer units12

Drawer fronts

Covered with synthetic leather

Melamine-coated

Covered with synthetic leather

Swivel stool✓-

We offer the coloured lacquer coating of the frames as standard in the following three shades (see frame colour selection card):

  • light grey (RAL 7035)
  • white aluminum (RAL 9006)
  • pure white (RAL 9010).

The high quality finish has a glossy look. It is disinfectant resistant and easy to clean.

Other colours are of course also available. Please let us know the desired RAL colour so that we can find out the corresponding additional costs. Please note, however, that these products are then considered type variants with no right of return.

The artificial leather covers we use are characterized by their tear resistance, durability, longevity and their good cleaning properties as well as their resistance to disinfectants.

We use a (colour) selection from the synthetic leather covers VOWAled Pisa (Vowalon). The colour selection card can be found here.

In addition, we offer you the service of manufacturing the upholstery in other colours or from other synthetic leather manufacturers (type variant). After prior agreement, please send us the relevant references.

The black electrically conductive synthetic leather cover (with equipotential bonding socket on the frame) is available at an additional cost. It is already included in the price of the operating tables and multifunction tables.

Image galleries

The photo shows the examination unit, Article No.: BUD-6265, equipped with an examination table including a paper roll holder rod, a drawer unit and a swivel stool, in the colours:

  • Frame: light grey RAL 7035,
  • Upholstery: tangerine.

The photo shows the examination unit, Article No.: UEH-5865, with an examination table and two drawer cabinets, in the colours:

  • Frame: pure white RAL 9010,
  • Upholstery: turquoise.

Accessories & additional options

Article No.

Description

HRM-14

Semi-circular roll, foam filling, dimensions Ø 200 x 400 mm, sewn from synthetic leather, with zipper, see upholstery colours.

HRM-14/Klett

Semi-circular roll, foam filling, dimensions Ø 200 x 400 mm, Velcro fastener (hook and loop straps), sewn from synthetic leather, with zipper, see upholstery colours.
KKM-16Head wedge, foam filling, dimensions 450 x 400 x 80 / 10 mm (L x W x H), sewn from synthetic leather, with zipper, see upholstery colours.
KVGHeadrest adjustment via gas pressure spring, can be operated with just one hand, release button located directly on the headboard. Retrofitting is not possible.
NF-25
NF-30		Levelling feet, for square steel tube 25 x 25 mm.
Levelling feet, for square steel tube 30 x 30 mm.
Set (4 pieces) impact caps with levelling feet.
OPS-40/A
OPS-60/A
OPS-100/A
OPS-140/A
OPS-170/A 		Standard rails (pair), approx. length 400 mm.
Standard rails (pair), approx. length 600 mm.
Standard rails (pair), approx. length 1,000 mm.
Standard rails (pair), approx. length 1,400 mm.
Standard rails (pair), approx. length 1,700 mm.
Made of CrNi steel, dimensions approx. 25 x 10 mm, for mounting on the upholstery frame, approx. 13.5 mm away from the upholstery/upper frame with 2 (or 3) spacers. Retrofitting is not possible.

P-2065

Paper roll holder, chrome-plated, consisting of two brackets, two clamps and a paper roll holder bar (length 615 mm, Ø 20 x 1 mm), for mounting on the table legs.

PG-220


Patient belt, dimensions 2,200 x 250 mm (L x W), for 650 mm wide tables, sewn from synthetic leather, with Velcro fastener (hook and loops straps), see upholstery colours.

RLM-20
RM-12

Knee roll, dimensions Ø 180 x 560 mm.
Neck roll, dimensions Ø 140 x 400 mm.
Round roll, foam filling, sewn from synthetic leather, with zipper, see upholstery colours.

More accessories

Product variants

As a manufacturer, we are able to adapt our products to your individual needs. Below, you will find examples of customer-specific requests we have implemented.

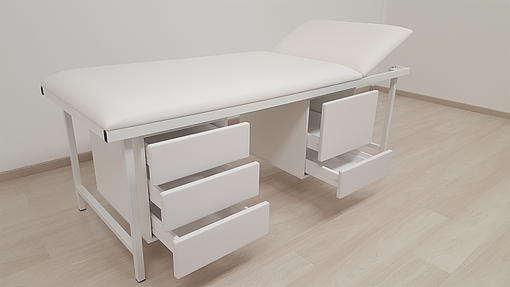

The two photos show the examination unit, Article No.: UEH-5865, with a table width of 800 mm, upholstery thickness of 80 mm, table height of 750 mm, in the colours:

  • Frame: pure white RAL 9010,
  • Upholstery: white

as well as the additional accessories and equipment components:

  • Headrest adjustment via gas pressure spring, Article No.: KVG.



The photos show the examination unit, Article No.: SSL-6558, with a tabletop in three sections (second headrest around the foot end), in the colours:

  • Frame: pure white RAL 9010,
  • Upholstery: grey.

The photos show the examination unit, Article No.: UEH-5865, in the colours:

  • Frame: stainless steel,
  • Upholstery: anthracite

as well as the additional accessories and equipment components:

  • Headrest adjustment via gas pressure spring, Article No.: KVG,
  • Set of castors, Ø 125 mm, Article No.: LR-125, for table height 800 mm.

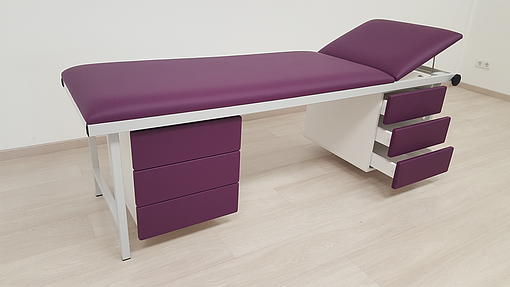

The photos show the examination unit, Article No.: UEH-5865, both cabinets with 3 drawers each, in the colours:

  • Frame: pure white RAL 9010,
  • Upholstery: VOWAled Pisa Orchid 003343 (special colour).
