Examination tables with hydraulic height adjustment (scissor mechanism)
Hydraulic examination tables with extra large adjustment range via a scissor mechanism
Examination tables with hydraulic height adjustment (larger stroke with scissor mechanism)
The 2 section examination tables with hydraulic height adjustment are also available with an extra large stroke. The adjustment range of 480 mm is achieved by a scissor mechanism.
The hydraulics, which can be used independently of the power supply, are operated by the built-in foot pump. By stepping down the lever, the pad frame can be adjusted upwards. To lower it, the treadle must be lifted with the foot.
The examination table can be lowered to wheelchair height. In the lowest position, the upper edge of the upholstery is at about 500 mm. This makes these hydraulic height-adjustable examination tables from AGA Sanitätsartikel particularly suitable for older, frail or disabled people.
The examination tables are available in two frame finishes (lacquered and chrome-plated) as well as three widths (650 mm, 800 mm and 1,000 mm).
Features
- The hydraulics are operated by the built-in foot pump. Height adjustment can, of course, also be carried out with heavier patients (up to 200 kg) without any major effort. To be able to operate the hydraulics from both sides, it is possible to install an additional foot lever. This is available at an extra charge (Article No.: FPH-10).
- The examination tables with the large adjustment range (500 - 980 mm) are available in three widths:
- Width 650 mm, Article No.: H-U 1065/Y 980 and H-U 2065/Y 980,
- Width 800 mm, Article No.: H-EKG 1080/Y 980 and H-EKG 2080/Y 980,
- Width 1,000 mm, Order No.: H-GYMK 10100/Y 980 and H-GYMK 20100/Y 980.
- The stability and robustness is achieved by the gusset plates in the frame corners.
- The frame diagonals and the bottom frame are made of lacquered blank steel.
- The profiles of the upholstered frame are made of:
- Lacquered blank steel, Article No.: H-U 1065/Y 980, H-EKG 1080/Y 980 and H-GYMK 10100/Y 980,
- Chrome-plated blank steel, Article No.: H-U 2065/Y 980, H-EKG 2080/Y 980 and H-GYMK 20100/Y 980.
- The two upholstery segments (headrest and main surface) each have a thickness of 64 mm.
- The headrest can be adjusted continuously up to +40° and locked in place by a handle with a clamping rod mechanism.
Technical details
| Table width 650 m | ||||||||
|---|---|---|---|---|---|---|---|---|
| Article number | H-U 1065/Y 980 | H-U 2065/Y 980 | ||||||
| Frame | Lacquered | Chrome | ||||||
| Length Headrest/main section | 1,900 mm 500 / 1,400 mm | |||||||
| Width | 650 mm | |||||||
| Height adjustment | 500 - 980 mm (hydraulic) | |||||||
| Upholstery segments | 2 sections | |||||||
| Upholstery thickness | 64 mm | |||||||
| Headrest adjustment | +40° (clamping rods) | |||||||
| Load capacity | 200 kg | |||||||
| Table width 800 mm | ||||||||
|---|---|---|---|---|---|---|---|---|
| Article number | H-EKG 1080/Y 980 | H-EKG 2080/Y 980 | ||||||
| Frame | Lacquered | Chrome | ||||||
| Length Headrest/main section | 1,900 mm 500 / 1,400 mm | |||||||
| Width | 800 mm | |||||||
| Height adjustment | 500 - 980 mm (hydraulic) | |||||||
| Upholstery segments | 2 sections | |||||||
| Upholstery thickness | 64 mm | |||||||
| Headrest adjustment | +40° (clamping rods) | |||||||
| Load capacity | 200 kg | |||||||
In the above tables, the term 'frame' only refers to the upholstered tabletop frame. The base frame and diagonals are only available in lacquered finish.
The standard version includes:
- Floor protectors (clip-on caps) on the four adjustable feet.
We offer the coloured lacquer coating of the frames as standard in the following three shades (see frame colour selection card):
- light grey (RAL 7035)
- white aluminum (RAL 9006)
- pure white (RAL 9010).
The high quality finish has a glossy look. It is disinfectant resistant and easy to clean.
Other colours are of course also available. Please let us know the desired RAL colour so that we can find out the corresponding additional costs. Please note, however, that these products are then considered type variants with no right of return.
The artificial leather covers we use are characterized by their tear resistance, durability, longevity and their good cleaning properties as well as their resistance to disinfectants.
We use a (colour) selection from the synthetic leather covers VOWAled Pisa (Vowalon). The colour selection card can be found here.
In addition, we offer you the service of manufacturing the upholstery in other colours or from other synthetic leather manufacturers (type variant). After prior agreement, please send us the relevant references.
The black electrically conductive synthetic leather cover (with equipotential bonding socket on the frame) is available at an additional cost. It is already included in the price of the operating tables and multifunction tables.
Downloads
pdf | 2 MB
Image galleries
H-U 1065/Y 980
H-U 1065/Y 980

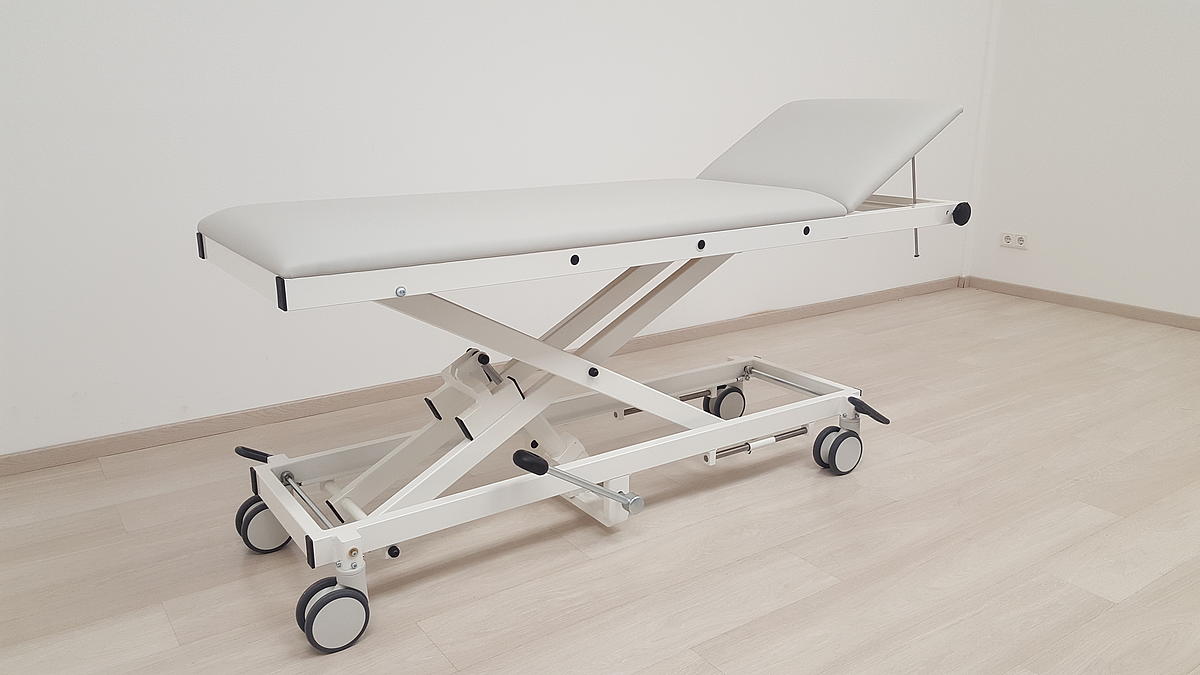

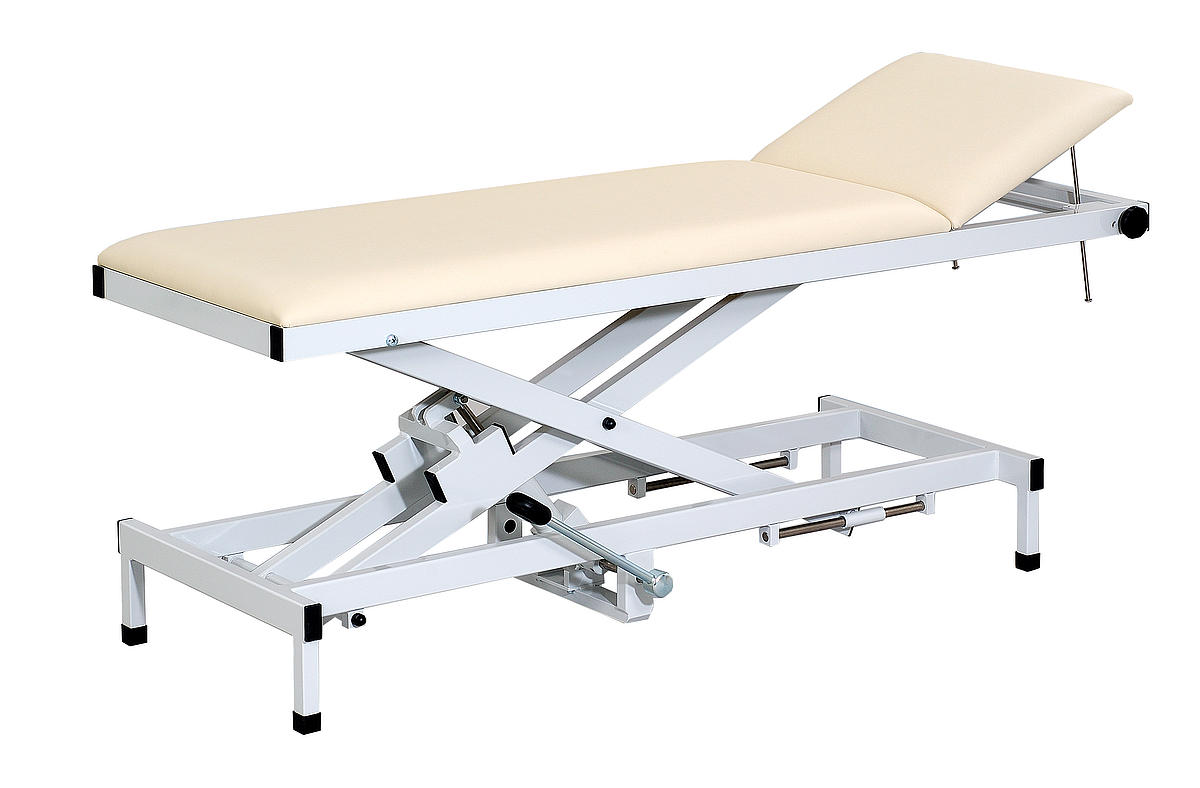

The photos show the examination table with hydraulic height adjustment, Article No.: H-U 1065/Y 980, in the colours:
- Frame: light grey RAL 7035,
- Upholstery: birch.
H-U 1065/Y 980, LR/Z-125
H-U 1065/Y 980, LR/Z-125
H-U 1065/Y 980, LR/Z-125

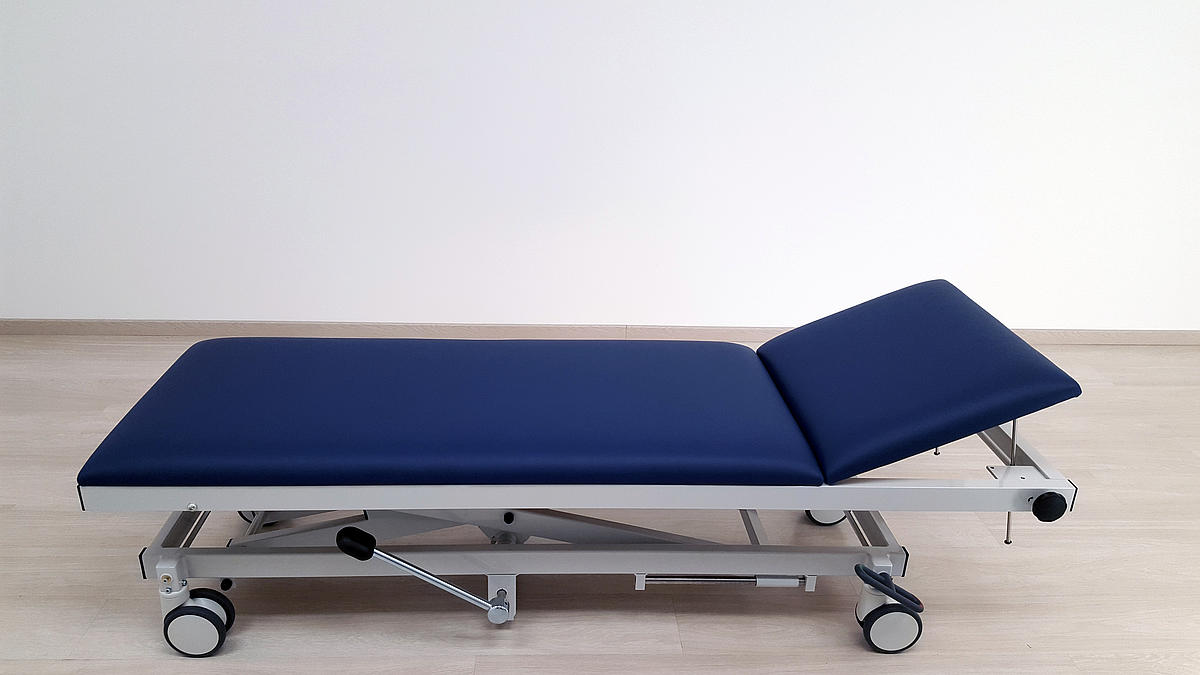

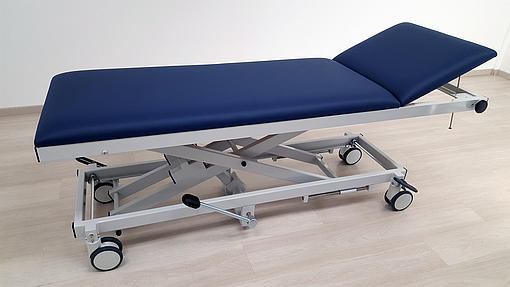

The photos show the examination table with hydraulic height adjustment, Article No.: H-U 1065/Y 980, in the colours:
- Frame: light grey RAL 7035,
- Upholstery: blue
as well as the additional accessories and equipment components:
- Central locking castor system, castors Ø 125 mm, Article No.: LR/Z-125.
Accessories & additional options
Article No. | Description |
|---|---|
| FPH-10 | Foot lever with transmission shaft and connecting piece. This allows operation of the hydraulic height adjustment from both sides. |
| GS-1710 EfGS | Face cutout in the headrest, oval, dimensions approx. 205 x 105 mm (L x W). Retrofitting is not possible. Upholstered insert for closing the face opening, oval, dimensions approx. 200 x 100 mm (L x W). See upholstery colours. |
| KVG | Headrest adjustment via gas pressure spring (instead of clamping rod mechanism), can be operated with just one hand, release button located directly on the headboard cushion. Retrofitting is not possible. |
| LR-75 LR-125 | Set of castors, Ø 75 mm. Set of castors, Ø 125 mm. Four swivel castors, two of which are completely lockable. |
| LR/Z-125 | Central locking castor system, double swivel castors Ø 125 mm. Mobility in the form of a central locking system, all four castors offer excellent rolling properties and are connected to each other by rods, foot pedals are arranged diagonally at the head and foot end, easy to operate and with coloured markings (green = table ready for moving, red = table locked in place). Retrofitting is not possible. |
| OPS-40/A OPS-60/A OPS-100/A OPS-140/A OPS-170/A | Standard rails (pair), approx. length 400 mm. Standard rails (pair), approx. length 600 mm. Standard rails (pair), approx. length 1,000 mm. Standard rails (pair), approx. length 1,400 mm. Standard rails (pair), approx. length 1,700 mm. Made of CrNi steel, dimensions approx. 25 x 10 mm, for mounting on the upholstery frame, approx. 13.5 mm away from the upholstery/upper frame with 2 (or 3) spacers each. Retrofitting is not possible. |
P-2065/A | Paper roll holder, for table width 650 mm. Paper roll holder, for table width 800 mm. Chrome-plated, consisting of two brackets, two clamps and a paper roll holder bar (length 615 / 795 mm, Ø 20 x 1 mm), for mounting on the upholstery frame. |
The components mentioned above are just a small excerpt. The following accessories are also available: infusion stand, all-around edge/impact protection, positioning aids, mobile base on castors, patient belts, removable or pivoting side guards, shock position/trendelenburg adjustment, wall deflector rings in the four corners of the table.
Product variants
As a manufacturer, we are able to adapt our products to your individual needs. Below, you will find examples of customer-specific requests we have implemented.
H-U 1065/Y 980, LR/Z-125
H-U 1065/Y 980, LR/Z-125
H-U 1065/Y 980, LR/Z-125
H-U 1065/Y 980, LR/Z-125
H-U 1065/Y 980, LR/Z-125
H-U 1065/Y 980, LR/Z-125
H-U 1065/Y 980, LR/Z-125
H-U 1065/Y 980, LR/Z-125

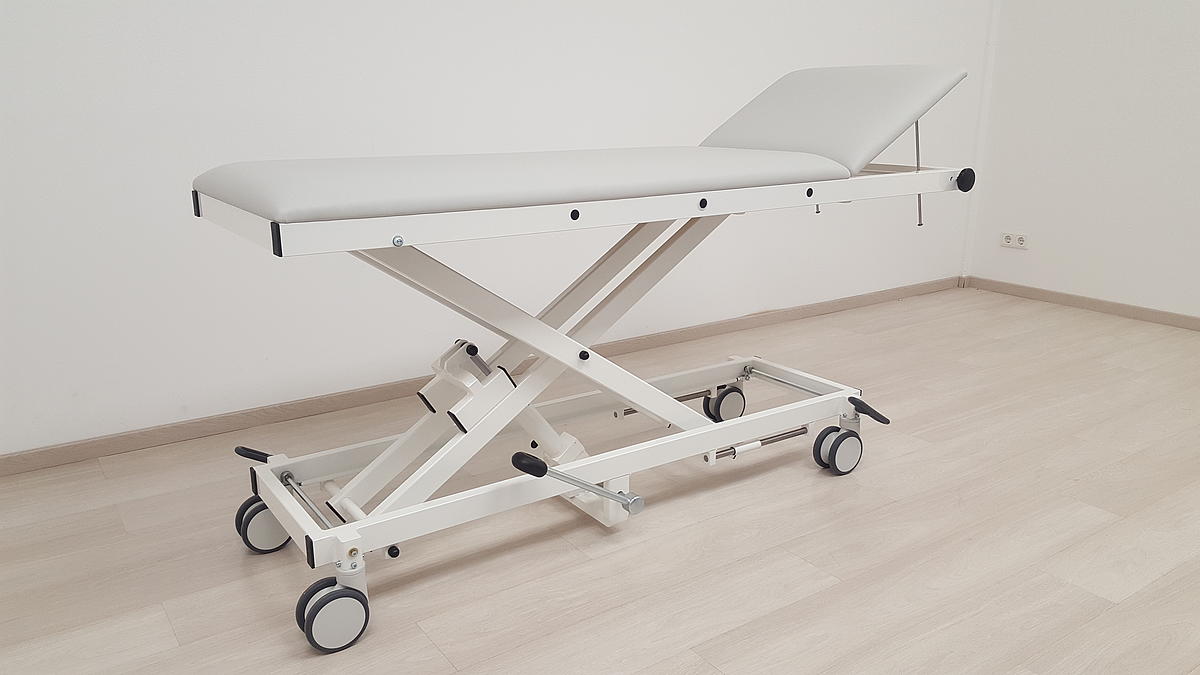

The photos show the examination table with hydraulic height adjustment, Article No.: H-U 1065/Y 980, in the colours:
