Examination tables with hydraulic height adjustment and higher load capacity
Hydraulic height-adjustable examination table, with a load capacity of up to 300 kg, particularly suitable for obese patients.
Examination tables with hydraulic height adjustment - load capacity up to 300 kg
The 2 sections hydraulic height-adjustable examination tables are also available with higher load capacity of up to 300 kg. This examination table from AGA Sanitätsartikel has been manufactured with larger tubular steel profile dimensions with thicker walls, as well as additional cross-bracing welded into the upholstery frame.
This makes this hydraulic height-adjustable examination table particularly suitable for obesity patients. Obesity is a nutritional and metabolic disease involving severe overweight.
The hydraulics are operated by the centrally installed foot pump. When adjusting the upholstered frame upward, the lever should be stepped down with the foot, and to lower the upholstered frame, the step lever should be lifted with the foot.
Features
- In order to avoid rocking and swinging movements of the table surface, this hydraulic height-adjustable examination table is manufactured with precision double square guides. As a result, the height adjustment takes place without lateral offset.
- The hydraulics are operated by the centrally installed foot pump. The height adjustment can of course also be carried out with heavier patients (up to 300 kg). To be able to operate the hydraulics from both sides, it is possible to install an additional foot lever. This is available at extra cost (Article No.: FPH-10).
- Stability and robustness are achieved by the gusset plates in the frame corners. In addition, larger tubular steel sections with thicker walls have been used, and further cross-bracing has been welded into the upholstery frame.
- The two upholstery segments (headrest and main surface) each have a thickness of 64 mm.
- The levelling feet on the base frame ensure high stability of the table.
- The headrest can be adjusted continuously up to +40° and locked in place by a handle with a clamping rod mechanism.
Technical details
| Examination tables for bariatric patients | ||||||||
|---|---|---|---|---|---|---|---|---|
| Article number | H-XXL 1080/Y | |||||||
| Frame | Lacquered | |||||||
| Length Headrest/main section | 1,900 mm | |||||||
| Width | 800 mm | |||||||
| Height adjustment | 650 - 850 mm (hydraulic) | |||||||
| Upholstery segments | 2 sections | |||||||
| Upholstery thickness | 64 mm | |||||||
| Headrest adjustment | +40° (clamping rods) | |||||||
| Load capacity | 300 kg | |||||||
The standard version includes:
- Floor frame with levelling feet.
We offer the coloured lacquer coating of the frames as standard in the following three shades (see frame colour selection card):
- light grey (RAL 7035)
- white aluminum (RAL 9006)
- pure white (RAL 9010).
The high quality finish has a glossy look. It is disinfectant resistant and easy to clean.
Other colours are of course also available. Please let us know the desired RAL colour so that we can find out the corresponding additional costs. Please note, however, that these products are then considered type variants with no right of return.
The artificial leather covers we use are characterized by their tear resistance, durability, longevity and their good cleaning properties as well as their resistance to disinfectants.
We use a (colour) selection from the synthetic leather covers VOWAled Pisa (Vowalon). The colour selection card can be found here.
In addition, we offer you the service of manufacturing the upholstery in other colours or from other synthetic leather manufacturers (type variant). After prior agreement, please send us the relevant references.
The black electrically conductive synthetic leather cover (with equipotential bonding socket on the frame) is available at an additional cost. It is already included in the price of the operating tables and multifunction tables.
Downloads
pdf | 2 MB
Image galleries
H-XXL 1080/Y
H-XXL 1080/Y
H-XXL 1080/Y
H-XXL 1080/Y
H-XXL 1080/Y
The photos show the hydraulic height-adjustable examination table for bariatric patients, Article No.: H-XXL 1080/Y, in the colours:
- Frame: light grey RAL 7035,
- Upholstery: birch.
H-XXL 1080/Y
H-XXL 1080/Y
H-XXL 1080/Y
H-XXL 1080/Y
H-XXL 1080/Y
H-XXL 1080/Y
The photos show the hydraulic height-adjustable examination table for obese patients, Article No.: H-XXL 1080/Y, in the colours:
- Frame: light grey RAL 7035,
- Upholstery: blue.
Accessories & additional options
Article No. | Description |
|---|---|
| FPH-10 | Foot lever with transmission shaft and connecting piece. This allows operation of the hydraulic height adjustment from both sides. |
| GS-1710 EfGS | Face cutout in the headrest, oval, dimensions approx. 205 x 105 mm (L x W). Retrofitting is not possible. Upholstered insert for closing the face opening, oval, dimensions approx. 200 x 100 mm (L x W). See upholstery colours. |
| KVG | Headrest adjustment via gas pressure spring (instead of clamping rod mechanism), can be operated with just one hand, release button located directly on the headboard cushion. Retrofitting is not possible. |
| LR/Z-125 | Central locking castor system, double swivel castors Ø 125 mm. Mobility in the form of a central locking system, all four castors offer excellent rolling properties and are connected to each other by rods, foot pedals are arranged diagonally at the head and foot end, easy to operate and with coloured markings (green = table ready for moving, red = table locked in place). As a result, this examination table can only be loaded up to 250 kg. Retrofitting is not possible. |
OPS-40/A | Standard rails (pair), approx. length 400 mm. Standard rails (pair), approx. length 600 mm. Standard rails (pair), approx. length 1,000 mm. Standard rails (pair), approx. length 1,400 mm. Standard rails (pair), approx. length 1,700 mm. Made of CrNi steel, dimensions approx. 25 x 10 mm, for mounting on the upholstery frame, approx. 13.5 mm away from the upholstery/upper frame with 2 (or 3) spacers. Retrofitting is not possible. |
P-2080/A | Paper roll holder, for 800 mm width, chrome-plated, consisting of two mounting kits, two brackets, two clamps and a paper roll holder rod (length 795 mm, Ø 20 x 1 mm), for mounting on the upholstery frame. |
The components mentioned above are just a small excerpt. The following accessories are also available: infusion stand, positioning aids, patient belt, removable or pivoting side guards, wall deflector rings in the four corners of the table.
Product variants
As a manufacturer, we are able to adapt our products to your individual needs. Below, you will find examples of customer-specific requests we have implemented.
H-XXL 1080/Y, LR/Z-125, FPH-10
H-XXL 1080/Y, 1-piece, FPH-10, LR/Z-125
H-XXL 1080/Y, LR/Z-125, FPH-10
H-XXL 1080/Y, LR/Z-125, FPH-10
H-XXL 1080/Y, LR/Z-125, FPH-10

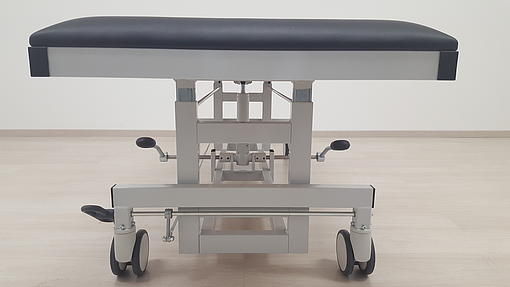

The photos show the hydraulic height-adjustable examination table for obese patients, Article No.: H-XXL 1080/Y, with one-piece, continuous tabletop surface, in the colours:
- Frame: light grey RAL 7035,
- Upholstery: black
as well as the additional accessories and equipment components:

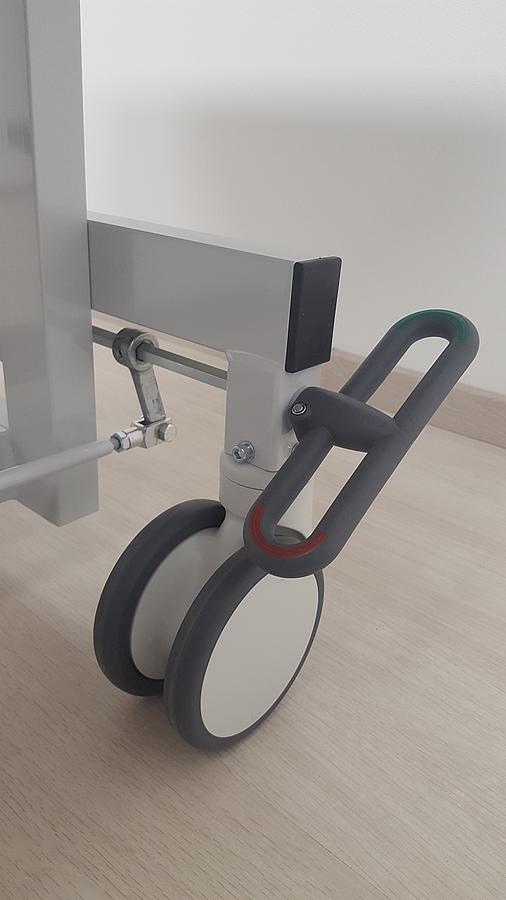

- Central locking castor system, castors Ø 125 mm, Article No.: LR/Z-125, for table height 650 - 850 mm,

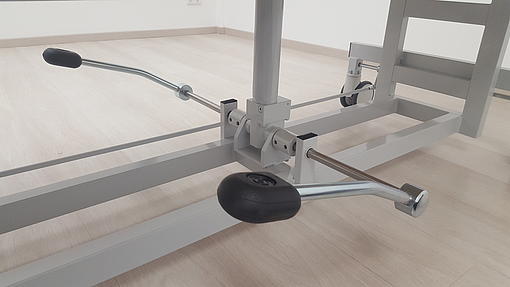

- Second foot pump lever, Article No.: FPH-10.
