AGA examination table H-EKG 1080/Y with hydraulic height adjustment

Examination tables with hydraulic height adjustment

Looking for an examination table with height adjustment independent from a power source? Hydraulic examination tables are the solution.

Examination tables with hydraulic height adjustment

Examination tables that can be adjusted in height independently from the power supply are a frequently requested product. This possibility is offered by the examination tables with hydraulic height adjustment and also the variation with manual height adjustment.

The hydraulic system is operated by the built-in foot pump. To adjust the upholstered frame upwards, the lever is to be stepped down with the foot, and to lower the upholstered frame, the stepping lever is to be lifted with the foot.

The examination tables with hydraulic height adjustment are available in three frame finishes (lacquered, chrome-plated and stainless steel) as well as two widths (650 mm and 800 mm).



Examination table with hydraulic height adjustment, Article No.: H-U 1065/Y

Features

The examination tables with 2 sections are the basic models of all our couch series in terms of upholstery, structure, dimensions and drilling pattern.

  • In order to avoid rocking and swinging movements of the tabletop, the hydraulically height-adjustable examination tables are manufactured with precision double square guides. As a result, the height adjustment takes place without lateral offset.
  • The hydraulics are operated by the centrally installed foot pump. Height adjustment can, of course, also be carried out with heavier patients (up to 200 kg) without any major effort. To be able to operate the hydraulics from both sides, it is possible to install an additional foot lever. This is available at an extra charge (Article No.: FPH-10).
  • The examination tables with hydraulic height adjustment are available in two widths:
    • Width 650 mm, Article No.: H-U 1065/Y, H-U 2065/Y and H-U 3065/Y,
    • Width 800 mm, Article No.: H-EKG 1080/Y, H-EKG 2080/Y and H-EKG 3080/Y.
  • The stability and robustness is achieved by the gusset plates in the frame corners.
  • The height adjustment mechanism is made of lacquered blank steel.
  • The profiles of the upholstered frame are made of:
    • Lacquered blank steel, Article No.: H-U 1065/Y and H-EKG 1080/Y,
    • Chrome-plated blank steel, Article No.: H-U 2065/Y and H-EKG 2080/Y,
    • Stainless steel, Article No.: H-U 3065/Y and H-EKG 3080/Y.
  • The two upholstery segments (headrest and main surface) each have a thickness of 64 mm.
  • The crossbars of the flat base construction, which are chrome-plated and equipped with levelling feet, are more resistant to external influences (e.g. vacuum cleaner knocks, etc.) than a plastic-coated version.
  • The headrest can be adjusted continuously up to +40° and locked in place by a handle with a clamping rod mechanism.

Technical details

 Table width 650 m
Article numberH-U 1065/YH-U 2065/YH-U 3065/Y
FrameLacqueredChromeStainless steel
Length
Headrest/main section		1,900 mm
500 / 1,400 mm
Width650 mm
Height adjustment650 - 850 mm (hydraulic)
Upholstery segments2 sections
Upholstery thickness64 mm
Headrest adjustment+40° (clamping rods)
Load capacity200 kg
 Table width 800 mm
Article numberH-EKG 1080/YH-EKG 2080/YH-EKG 3080/Y
FrameLacqueredChromeStainless steel
Length
Headrest/main section		1,900 mm
500 / 1,400 mm
Width800 mm
Height adjustment650 - 850 mm (hydraulic)
Upholstery segments2 sections
Upholstery thickness64 mm
Headrest adjustment+40° (clamping rods)
Load capacity200 kg

In the above tables, the term 'frame' only refers to the upholstered tabletop frame. The height adjustment mechanism is only available in lacquered finish and the crossbars (with levelling feet) in chrome-plated finish.

The standard version includes:
  • Levelling feet on the chrome-plated crossbars.

We offer the coloured lacquer coating of the frames as standard in the following three shades (see frame colour selection card):

  • light grey (RAL 7035)
  • white aluminum (RAL 9006)
  • pure white (RAL 9010).

The high quality finish has a glossy look. It is disinfectant resistant and easy to clean.

Other colours are of course also available. Please let us know the desired RAL colour so that we can find out the corresponding additional costs. Please note, however, that these products are then considered type variants with no right of return.

The artificial leather covers we use are characterized by their tear resistance, durability, longevity and their good cleaning properties as well as their resistance to disinfectants.

We use a (colour) selection from the synthetic leather covers VOWAled Pisa (Vowalon). The colour selection card can be found here.

In addition, we offer you the service of manufacturing the upholstery in other colours or from other synthetic leather manufacturers (type variant). After prior agreement, please send us the relevant references.

The black electrically conductive synthetic leather cover (with equipotential bonding socket on the frame) is available at an additional cost. It is already included in the price of the operating tables and multifunction tables.

Image galleries

The photos show the examination tables with hydraulic height adjustment, Article No.: H-U 1065/Y, in the colours:

  • Frame: light grey RAL 7035,
  • Upholstery: rosewood

as well as the additional accessories and equipment components:

  • Second foot pump lever, for operating the hydraulic height adjustment from both sides, Article No.: FPH-10.



The photos show the examination table with hydraulic height adjustment, Article No.: H-U 2065/Y, in the colours:

  • Upholstery frame: chrome,
  • Frame: light grey RAL 7035,
  • Upholstery: ice

as well as the additional accessories and equipment components:

  • Paper roll holder, Article No.: P-2065/A, partly with a paper roll.

Accessories & additional options

Article No.

Description
FPH-10

Foot lever with transmission shaft and connecting piece. This allows operation of the hydraulic height adjustment from both sides.

GS-1710
EfGS		Face cutout in the headrest, oval, dimensions approx. 205 x 105 mm (L x W). Retrofitting is not possible.
Upholstered insert for closing the face opening, oval, dimensions approx. 200 x 100 mm (L x W). See upholstery colours.
KVGHeadrest adjustment via gas pressure spring (instead of clamping rod mechanism), can be operated with just one hand, release button located directly on the headboard cushion. Retrofitting is not possible.
LR-75
LR-125		Set of castors, Ø 75 mm.
Set of castors, Ø 125 mm.
Four swivel castors, two of which are completely lockable.
LR/Z-125Central locking castor system, double swivel castors Ø 125 mm.
Mobility in the form of a central locking system, all four castors offer excellent rolling properties and are connected to each other by rods, foot pedals are arranged diagonally at the head and foot end, easy to operate and with coloured markings (green = table ready for moving, red = table locked in place). Retrofitting is not possible.
OPS-40/A
OPS-60/A
OPS-100/A
OPS-140/A
OPS-170/A		Standard rails (pair), approx. length 400 mm.
Standard rails (pair), approx. length 600 mm.
Standard rails (pair), approx. length 1,000 mm.
Standard rails (pair), approx. length 1,400 mm.
Standard rails (pair), approx. length 1,700 mm.
Made of CrNi steel, dimensions approx. 25 x 10 mm, for mounting on the upholstery frame, approx. 13.5 mm away from the upholstery/upper frame with 2 (or 3) spacers each. Retrofitting is not possible.

P-2065/A
P-2080/A

Paper roll holder, for table width 650 mm.
Paper roll holder, for table width 800 mm.
Chrome-plated, consisting of two brackets, two clamps and a paper roll holder rod (length 615 / 795 mm, Ø 20 x 1 mm), for mounting on the upholstery frame.

The components mentioned above are just a small excerpt. The following accessories are also available: infusion stand, all-around edge/impact protection, positioning aids, mobile base on castors, patient belts, removable or pivoting side guards, shock position/trendelenburg adjustment, wall deflector rings in the four corners of the table.

More accessories

Product variants

As a manufacturer, we are able to adapt our products to your individual needs. Below, you will find examples of customer-specific requests we have implemented.

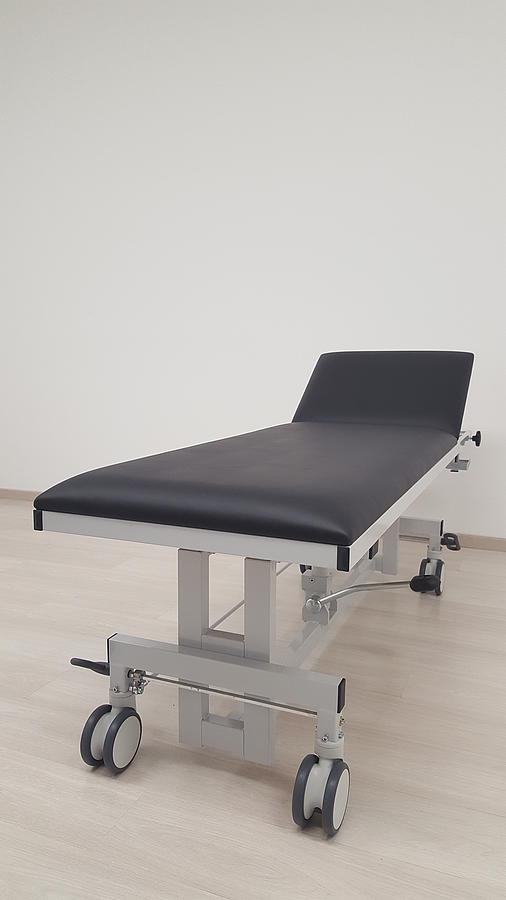

The photos show the examination tables with hydraulic height adjustment, Article No.: H-U 1065/Y, in the colours:

  • Frame: light grey RAL 7035,
  • Upholstery: black

as well as the additional accessories and equipment components:

  • Central locking castor system, castors Ø 125 mm, Article No.: LR/Z-125, for table height approx. 650 - 850 mm,
  • Paper roll holder, Article No.: P-2065/A.

The photos show the examination table with hydraulic height adjustment, Article No.: H-EKG 1080/Y, in the colours:

  • Frame: light grey RAL 7035,
  • Upholstery: baltic

as well as the additional accessories and equipment components:

  • Castors, Ø 75 mm, Article No.: LR-75, for table height 650 - 850 mm,
  • Side guard (2 pc.), pivoting, Article No.: SG-1000/1.
