AGA Untersuchungsliege H-U 1065/E mit Zubehör

Examination tables with electric height adjustment

The height adjustment by electric motor offers convenience and ease of use.

Examination tables with electric height adjustment

Examination tables with height adjustment by electric motor offers a third adjustment type, in addition to manual height adjustment and hydraulic height adjustment, manufactured by AGA Sanitätsartikel.

The control of the motor, by hand or foot switch, is the easiest and most convenient way of operation. A power outlet (preferably a floor outlet) for connection is desirable in close proximity of the examination table.

The examination tables with electromotive height adjustment are available in three frame finishes (lacquered, chrome-plated and stainless steel) as well as two widths (650 mm and 800 mm).

AGA Untersuchungsliege H-U 1065/E
Examination table with electric height adjustment, Article No.: H-U 1065/E

Features

The 2 sections examination tables are the basic models of all our table series in terms of upholstery, structure, dimensions and drilling pattern.

  • In order to avoid rocking and swinging movements of the lying surface, the electric height-adjustable examination tables are manufactured with precision double square guides. As a result, the height adjustment takes place without lateral offset.
  • The smooth-running electric motor is maintenance-free and splash-proof. It is controlled by a hand switch (alternatively - without surcharge - by foot switch). The height adjustment (650 - 850 mm) can also be operated by heavier patients (up to 200 kg). The adjustment system is equipped with a key lock. Motor connection values: 230V, 50/60 Hz., 3.7A, 850W, IPX4, v=11mm/s, 10,000N.
  • The examination tables with electric height adjustment are available in two widths:
    • Width 650 mm, Article No.: H-U 1065/E, H-U 2065/E and H-U 3065/E,
    • Width 800 mm, Article No.: H-EKG 1080/E, H-EKG 2080/E and H-EKG 3080/E.
  • Stability and robustness are achieved by the gusset plates in the frame corners.
  • The height adjustment mechanism is made of lacquered blank steel.
  • The profiles of the upholstered frame are made of:
    • Lacquered blank steel, Article No.: H-U 1065/E and H-EKG 1080/E,
    • Chrome-plated blank steel, Article No.: H-U 2065/E and H-EKG 2080/E,
    • Stainless steel, Article No.: H-U 3065/E and H-EKG 3080/E.
  • The two upholstery segments (headrest and main surface) each have a thickness of 64 mm.
  • The crossbars of the flat foot construction, which are chrome-plated and fitted with levelling feet, are more resistant to external influences (e.g. vacuum cleaner knocks, etc.) than a plastic-coated version.
  • The headrest can be adjusted continuously up to +40° and locked in place by a handle with a clamping rod mechanism.

Technical details

 Table width 650 m
Article numberH-U 1065/EH-U 2065/EH-U 3065/E
FrameLacqueredChromeStainless steel
Length
Headrest/main section		1,900 mm
500 / 1,400 mm
Width650 mm
Height adjustment650 - 850 mm (electric motor)
Upholstery segments2 sections
Upholstery thickness64 mm
Headrest adjustment+40° (clamping rods)
Load capacity200 kg
 Table width 800 mm
Article numberH-EKG 1080/EH-EKG 2080/EH-EKG 3080/E
FrameLacqueredChromeStainless steel
Length
Headrest/main section		1,900 mm
500 / 1,400 mm
Width800 mm
Height adjustment650 - 850 mm (electric motor)
Upholstery segments2 sections
Upholstery thickness64 mm
Headrest adjustment+40° (clamping rods)
Load capacity200 kg

In the above tables, the term 'frame' only refers to the upholstered tabletop frame. The height adjustment mechanism is only available in lacquered finish and the crossbars (with levelling feet) in chrome-plated finish.

The standard version includes:
  • Levelling feet on the chrome-plated crossbars.

We offer the coloured lacquer coating of the frames as standard in the following three shades (see frame colour selection card):

  • light grey (RAL 7035)
  • white aluminum (RAL 9006)
  • pure white (RAL 9010).

The high quality finish has a glossy look. It is disinfectant resistant and easy to clean.

Other colours are of course also available. Please let us know the desired RAL colour so that we can find out the corresponding additional costs. Please note, however, that these products are then considered type variants with no right of return.

The artificial leather covers we use are characterized by their tear resistance, durability, longevity and their good cleaning properties as well as their resistance to disinfectants.

We use a (colour) selection from the synthetic leather covers VOWAled Pisa (Vowalon). The colour selection card can be found here.

In addition, we offer you the service of manufacturing the upholstery in other colours or from other synthetic leather manufacturers (type variant). After prior agreement, please send us the relevant references.

The black electrically conductive synthetic leather cover (with equipotential bonding socket on the frame) is available at an additional cost. It is already included in the price of the operating tables and multifunction tables.

Image galleries

The photos show the examination table with electric height adjustment, Article No.: H-U 1065/E, in the colours

  • Frame: pure white RAL 9010
  • Upholstery: light grey.

The photos show the examination table with electric height adjustment, Article No.: H-U 2065/E, in the colours:

  • Upholstery frame: chrome,
  • Frame: light grey RAL 7035,
  • Upholstery: yellow.



Accessories & additional options

Article No.

Description
GS-1710
EfGS		Face cutout in the headboard upholstery, oval, dimensions approx. 205 x 105 mm (L x W). Retrofitting is not possible.
Upholstered insert for closing the face cutout, oval, dimensions approx. 200 x 100 mm (L x W). See upholstery colours.
KVGHeadrest adjustment via gas pressure spring (instead of clamping rod mechanism), can be operated with just one hand, release button located directly on the headboard cushion. Retrofitting is not possible.
LR-75
LR-125		Set of castors, Ø 75 mm.
Set of castors, Ø 125 mm.
Four swivel castors, two of which are completely lockable.
LR/Z-125Central locking castor system, double swivel castors Ø 125 mm.
Mobility in the form of a central locking system, all four castors offer excellent rolling properties and are connected to each other by rods, foot pedals are arranged diagonally at the head and foot end, easy to operate and with coloured markings (green = table ready for moving, red = table locked in place). Retrofitting is not possible.
OPS-40/A
OPS-60/A
OPS-100/A
OPS-140/A
OPS-170/A		Standard rails (pair), approx. length 400 mm.
Standard rails (pair), approx. length 600 mm.
Standard rails (pair), approx. length 1,000 mm.
Standard rails (pair), approx. length 1,400 mm.
Standard rails (pair), approx. length 1,700 mm.
Made of CrNi steel, dimensions approx. 25 x 10 mm, for mounting on the upholstery frame, approx. 13.5 mm away from the upholstery/upper frame with 2 (or 3) spacers. Retrofitting is not possible.

P-2065/A
P-2080/A

Paper roll holder, for table width 650 mm.
Paper roll holder, for table width 800 mm.
Chrome-plated, consisting of two brackets, two clamps and a paper roll holder bar (length 615 / 795 mm, Ø 20 x 1 mm), for mounting on the upholstery frame.

The components mentioned above are just a small excerpt. The following accessories are also available: infusion stand, all-around edge/impact protection, positioning aids, mobile base on castors, patient belts, removable or pivoting side guards, shock position/trendelenburg adjustment, wall deflector rings in the four corners of the table.

More accessories

Product variants

As a manufacturer, we are able to adapt our products to your individual needs. Below, you will find examples of customer-specific requests we have implemented.

The photos show the examination table with electric height adjustment, Article No.: H-EKG 1080/E, in the colours:

  • Frame: white aluminium RAL 9006,
  • Upholstery: blue

as well as the additional accessories and equipment components:

  • Castors, Ø 75 mm, Article No.: LR-75, for table height 650 - 850 mm,
  • All-around edge/impact protection, Article No.: ULKRS-4022.

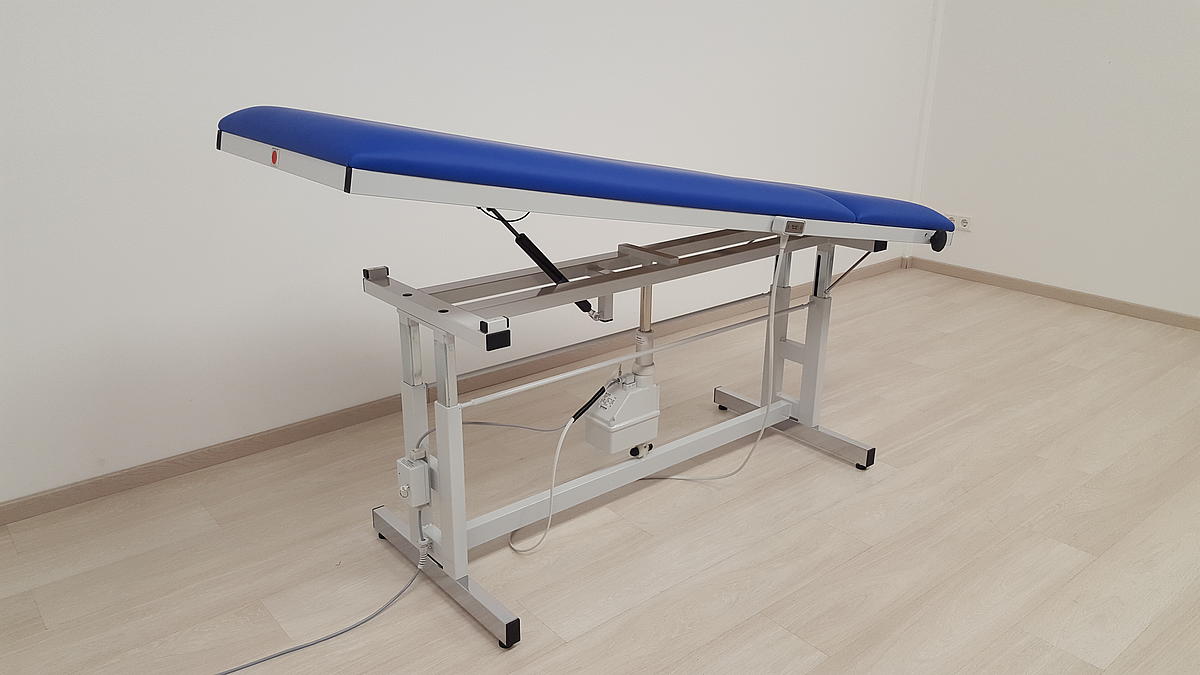

The photos show the examination table with electric height adjustment, Article No.: H-U 1065/E, in the colours:

  • Frame: light grey RAL 7035,
  • Upholstery: atoll

as well as the additional accessories and equipment components:

  • Shock position/Trendelenburg adjustment, Article No.: SL-AWL.

Questions? Contact us today!

Do you have questions about our products or services? Would like to get to know us? Contact us today, we will be pleased to provide expert advice tailored to your needs.

CONTACT AGA

Product videos

elektromotorische Höhenverstellung bei der Untersuchungsliege
Height adjustment up and downExternal Video (youtube)

Illustration of the electric height adjustment of the examination table, Article No.: H-U 1065/E. The adjustment system has a button lock that is deactivated with a double tap.

stufenlose Kopfteilverstellung bei einer Echo-Kardiographieliege
Echocardiography table EKA-1065/AAExternal Video (youtube)

Illustration and operation of the continuous headrest adjustment by clamping rod mechanism, Article No.: EKA-1065/AA.
