Examination tables with electric height adjustment (scissor mechanism)
Electric height-adjustable examination tables with extra large adjustment range via a scissor mechanism
Examination tables with electric height adjustment (larger stroke with scissor mechanism)
The 2-section electric height-adjustable examination tables are also available with an extra large stroke. The adjustment range of 430 mm is achieved by a scissor mechanism.
Controlling the motor, by hand or foot switch, is the easiest and most convenient way to trigger and operate a height adjustment. A socket (preferably a floor socket) for power connection would be desirable in the area of the examination table.
The examination table can be lowered to wheelchair height. In the lowest position, the upper edge of the upholstery is at approx. 500 mm. This makes these electromotive height-adjustable examination tables from AGA Sanitätsartikel particularly suitable for older, frail or disabled people.
The examination tables with electromotive height adjustment are available in two frame finishes,
Lacquered and chrome-plated,
and in three widths:
650 mm, 800 mm and 1,000 mm.
Features
- The height adjustment (500 - 930 mm) is performed by a smooth-running, maintenance-free and splash-proof electric motor, which is controlled via a hand switch (alternatively - without surcharge - via foot switch). The adjustment system is equipped with a key lock. Motor connection values: 230V, 50/60 Hz., 3.7A, 850W, IPX4, v=11mm/s, 10,000N.
- The examination tables with electromotive height adjustment are available in three widths:
- 650 mm, Article No.: H-U 1065/E 930 and H-U 2065/E 930.
- 800 mm, Article No.: H-EKG 1080/E 930 and H-EKG 2080/E 930.
- 1,000 mm, Article No.: H-GYMK 10100/E 930 and H-GYMK 20100/E 930.
- The stability and robustness is achieved by the gusset plates in the frame corners.
- The frame diagonals and the bottom frame are made of lacquered blank steel.
- The profiles of the upholstered frame are made of
- Lacquered blank steel, Article No.: H-U 1065/E 930, H-EKG 1080/E 930 and H-GYMK 10100/E 930.
- Chrome-plated blank steel, Article No.: H-U 2065/E 930, H-EKG 2080/E 930 and H-GYMK 20100/E 930.
- The two upholstery segments (headrest and main surface) each have a thickness of 64 mm.
- The headrest can be adjusted continuously up to +40° and locked in place by a handle with a clamping rod mechanism.
Technical details
| Table width 650 m | ||||||||
|---|---|---|---|---|---|---|---|---|
| Article number | H-U 1065/E 930 | H-U 2065/E 930 | ||||||
| Frame | Lacquered | Chrome | ||||||
| Length Headrest/main section | 1,900 mm 500 / 1,400 mm | |||||||
| Width | 650 mm | |||||||
| Height adjustment | 500 - 930 mm (electric motor) | |||||||
| Upholstery segments | 2 sections | |||||||
| Upholstery thickness | 64 mm | |||||||
| Headrest adjustment | +40° (clamping rods) | |||||||
| Load capacity | 200 kg | |||||||
| Table width 800 mm | ||||||||
|---|---|---|---|---|---|---|---|---|
| Article number | H-EKG 1080/E 930 | H-EKG 2080/E 930 | ||||||
| Frame | Lacquered | Chrome | ||||||
| Length Headrest/main section | 1,900 mm 500 / 1,400 mm | |||||||
| Width | 800 mm | |||||||
| Height adjustment | 500 - 930 mm (electric motor) | |||||||
| Upholstery segments | 2 sections | |||||||
| Upholstery thickness | 64 mm | |||||||
| Headrest adjustment | +40° (clamping rods) | |||||||
| Load capacity | 200 kg | |||||||
In the above tables, the term 'frame' only refers to the upholstered tabletop frame. The base frame and diagonals are only available in lacquered finish.
The standard version includes:
- Floor protectors (clip-on caps) on the four adjustable feet.
We offer the coloured lacquer coating of the frames as standard in the following three shades (see frame colour selection card):
- light grey (RAL 7035)
- white aluminum (RAL 9006)
- pure white (RAL 9010).
The high quality finish has a glossy look. It is disinfectant resistant and easy to clean.
Other colours are of course also available. Please let us know the desired RAL colour so that we can find out the corresponding additional costs. Please note, however, that these products are then considered type variants with no right of return.
The artificial leather covers we use are characterized by their tear resistance, durability, longevity and their good cleaning properties as well as their resistance to disinfectants.
We use a (colour) selection from the synthetic leather covers VOWAled Pisa (Vowalon). The colour selection card can be found here.
In addition, we offer you the service of manufacturing the upholstery in other colours or from other synthetic leather manufacturers (type variant). After prior agreement, please send us the relevant references.
The black electrically conductive synthetic leather cover (with equipotential bonding socket on the frame) is available at an additional cost. It is already included in the price of the operating tables and multifunction tables.
Downloads
pdf | 2 MB
Image galleries
H-EKG 1080/E 930
H-EKG 1080/E 930
H-EKG 1080/E 930
H-EKG 1080/E 930
H-EKG 1080/E 930
H-EKG 1080/E 930
The photos show the examination table with electromotive height adjustment, Article No.: H-EKG 1080/E 930, in the colours:
- Frame: light grey RAL 7035,
- Upholstery: black.
H-U 1065/E 930, LR-75, P-2065/A
H-U 1065/E 930, LR-75, P-2065/A
H-U 1065/E 930, LR-75, P-2065/A
H-U 1065/E 930, LR-75, P-2065/A
H-U 1065/E 930, LR-75, P-2065/A

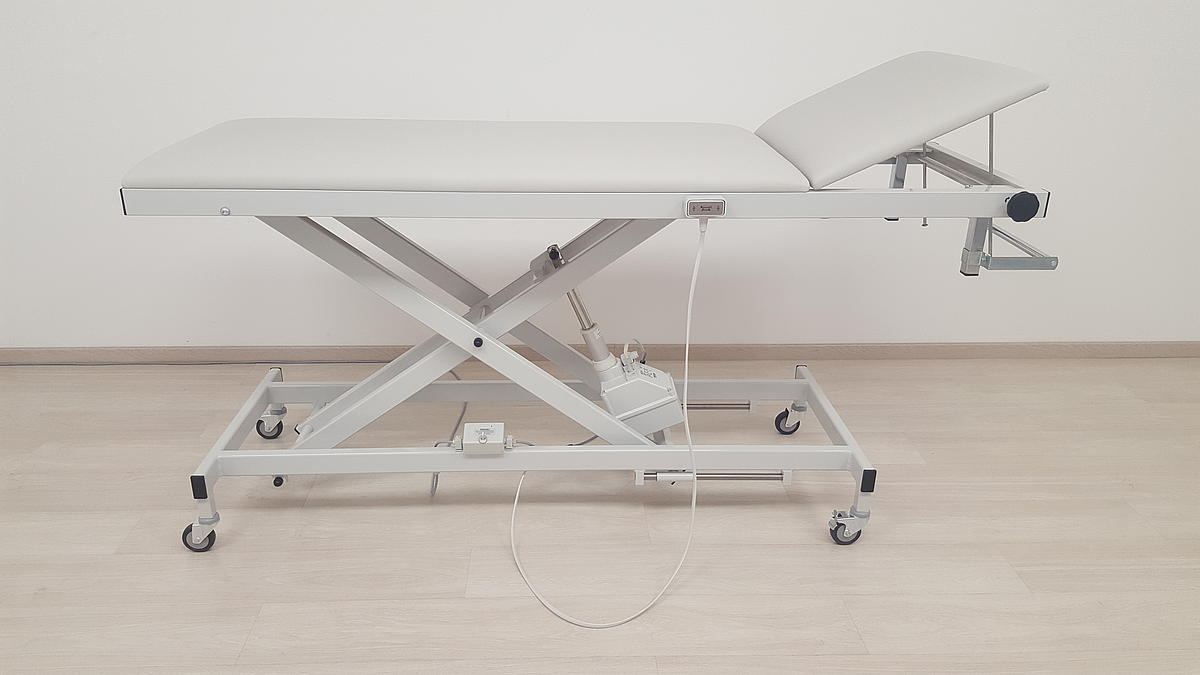

The photos show the examination table with electromotive height adjustment, Article No.: H-U 1065/E 930, in the colours:
- Frame: light grey RAL 7035,
- Upholstery: light grey
as well as the additional accessories and equipment components:
- Set of castors, Ø 75 mm, Article No.: LR-75,
- Paper roll holder, Article No.: P-2065/A.
Accessories & additional options
Article No. | Description |
|---|---|
| GS-1710 EfGS | Face cutout in the headrest, oval, dimensions approx. 205 x 105 mm (L x W). Retrofitting is not possible. Upholstered insert for closing the face opening, oval, dimensions approx. 200 x 100 mm (L x W). See upholstery colours. |
| KVG | Headrest adjustment via gas pressure spring (instead of clamping rod mechanism), can be operated with just one hand, release button located directly on the headboard cushion. Retrofitting is not possible. |
| LR-75 LR-125 | Set of castors, Ø 75 mm. Set of castors, Ø 125 mm. Four swivel castors, two of which are completely lockable. |
| LR/Z-125 | Central locking castor system, double swivel castors Ø 125 mm. Mobility in the form of a central locking system, all four castors offer excellent rolling properties and are connected to each other by rods, foot pedals are arranged diagonally at the head and foot end, easy to operate and with coloured markings (green = table ready for moving, red = table locked in place). Retrofitting is not possible. |
| OPS-40/A OPS-60/A OPS-100/A OPS-140/A OPS-170/A | Standard rails (pair), approx. length 400 mm. Standard rails (pair), approx. length 600 mm. Standard rails (pair), approx. length 1,000 mm. Standard rails (pair), approx. length 1,400 mm. Standard rails (pair), approx. length 1,700 mm. Made of CrNi steel, dimensions approx. 25 x 10 mm, for mounting on the upholstery frame, approx. 13.5 mm away from the upholstery/upper frame with 2 (or 3) spacers each. Retrofitting is not possible. |
P-2065/A | Paper roll holder, for table width 650 mm. Paper roll holder, for table width 800 mm. Chrome-plated, consisting of two brackets, two clamps and a paper roll holder bar (length 615 / 795 mm, Ø 20 x 1 mm), for mounting on the upholstery frame. |
The components mentioned above are just a small excerpt. The following accessories are also available: infusion stand, all-around edge/impact protection, positioning aids, mobile base on castors, patient belts, removable or pivoting side guards, shock position/trendelenburg adjustment, wall deflector rings in the four corners of the table.
Product variants
As a manufacturer, we are able to adapt our products to your individual needs. Below, you will find examples of customer-specific requests we have implemented.
H-U 2065/E 930, KVG, SL-AWL
H-U 2065/E 930, KVG, SL-AWL
H-U 2065/E 930, KVG, SL-AWL
H-U 2065/E 930, KVG, SL-AWL
H-U 2065/E 930, KVG, SL-AWL
H-U 2065/E 930, KVG, SL-AWL
H-U 2065/E 930, KVG, SL-AWL
H-U 2065/E 930, KVG, SL-AWL
The photos show the examination table with electric height adjustment, Article No.: H-U 2065/E 930, in the colours:
- Upholstery frame: chrome,
- Frame: light grey RAL 7035,
- Upholstery: black
as well as the additional accessories and equipment components:
- Headrest adjustment by gas pressure spring, Article No.: KVG,
- Shock position/trendelenburg adjustment, Article No.: SL-AWL.
H-EKG 2080/E 930, P-2080/A
H-EKG 2080/E 930, P-2080/A
H-EKG 2080/E 930, P-2080/A
H-EKG 2080/E 930, P-2080/A
H-EKG 2080/E 930, P-2080/A
H-EKG 2080/E 930, P-2080/A

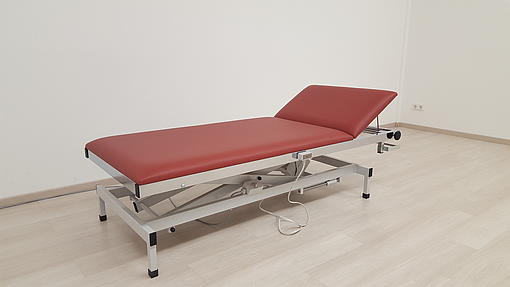

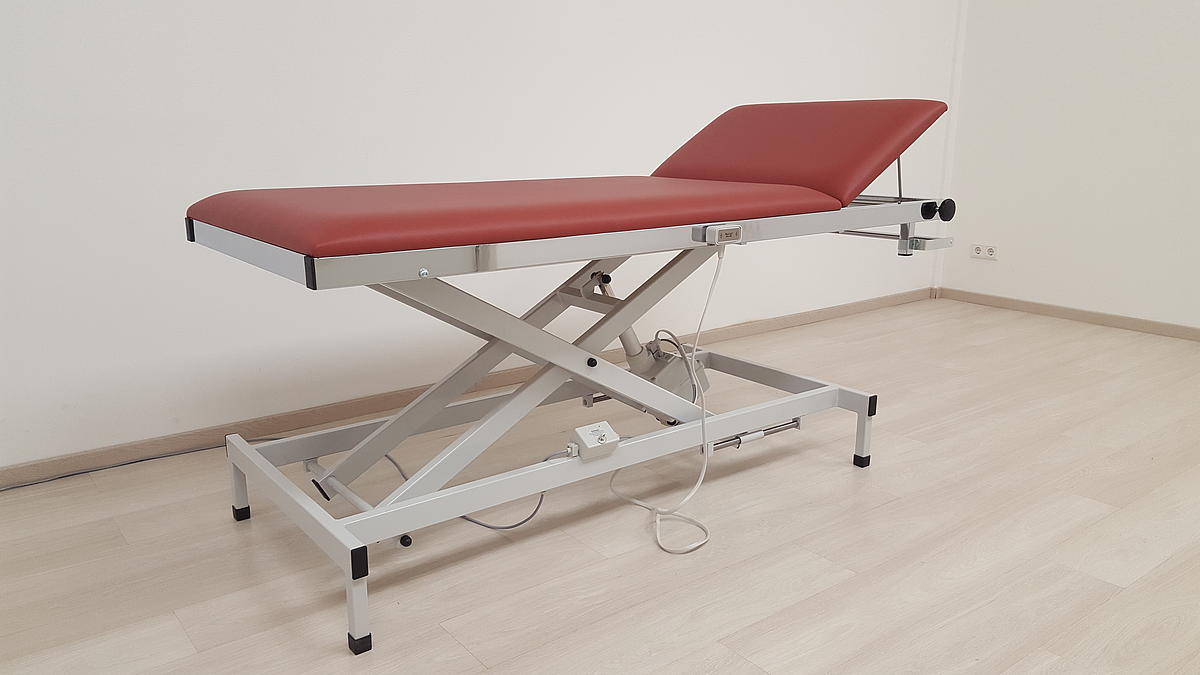

The photos show the examination table with electric height adjustment, Article No.: H-EKG 2080/E 930, in the colours:
- Upholstery frame: chrome,
- Frame: light grey RAL 7035,
- Upholstery: Parotega NF Marsala F6461765 (other brand upholstery, upon client's request)
as well as the additional accessories and equipment components:
- Paper roll holder, Article No.: P-2080/A.
H-U 1065/E 930, head-down position, SG-1000/1
H-U 1065/E 930, head-down position, SG-1000/1
H-U 1065/E 930, head-down position, SG-1000/1
H-U 1065/E 930, head-down position, SG-1000/1
H-U 1065/E 930, head-down position, SG-1000/1

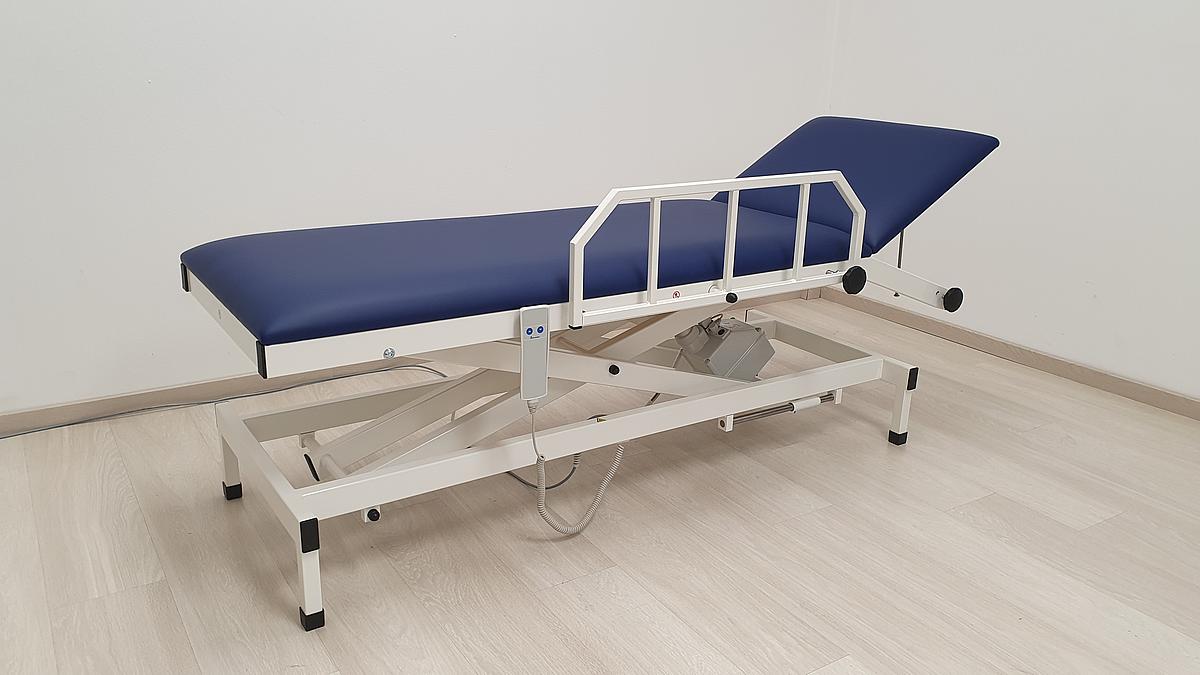

The photos show the examination table with electric height adjustment, Article No.: H-U 1065/E 930, in the colours:
- Frame: pure white RAL 9010,
- Upholstery: blue
as well as the additional accessories and equipment components:
- Headrest adjustment -20° to +40°
- Side guard, Article No.: SG-1000/1.
