AGA examination table H-SU 2065/E with electric height adjustment and head-down position

Examination tables with electric height adjustment and head-down position

Electric height-adjustable examination tables, equipped with a positively and negatively adjustable headrest.

Electric height-adjustable examination tables with head-down position

Examination tables with height adjustment by electric motor offers a third adjustment type, in addition to manual height adjustment and hydraulic height adjustment, manufactured by AGA Sanitätsartikel.The control of the motor, by hand or foot switch, is the easiest and most convenient way of operation. A power outlet (preferably a floor outlet) would be convenient in the surrounding area of the examination table.

These electromotive height-adjustable examination tables from AGA Sanitätsartikel are equipped with a positive and negative (below horizontal) adjustable headrest in addition to the positive (upward) adjustable headrest. The so-called head-down position is preferred for sonographic evaluations of the soft parts of the neck, for example the thyroid gland.

The examination tables with the head-down position are available in three frame finishes (lacquered, chrome-plated and stainless steel) as well as two widths (650 mm and 800 mm).

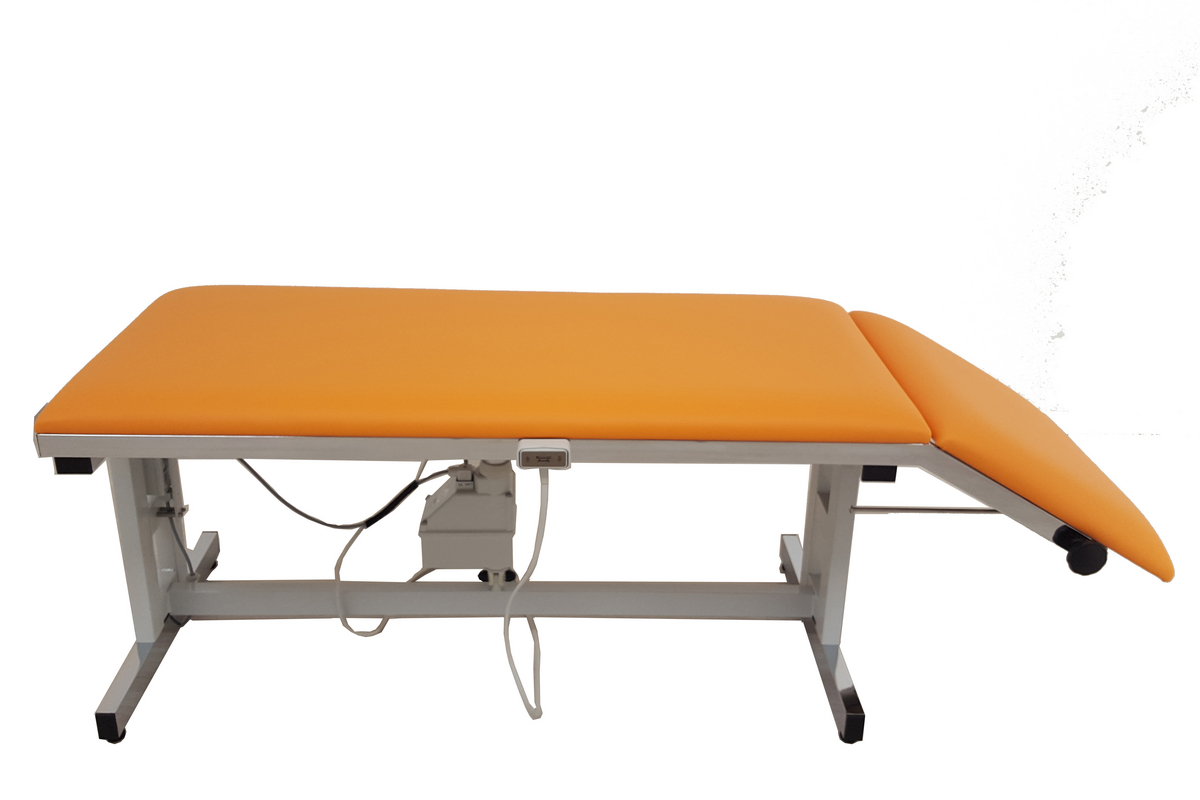

AGA Untersuchungsliege H-SU 2065/E
Examination table with electric height adjustment and head-down position, Article No.: H-SU 2065/E

Features

In terms of upholstery, structure, dimensions and drilling pattern, the examination tables with headrest are the base models of all our table series with positively and negatively adjustable headrest.

  • In order to avoid rocking and swinging movements of the tabletop surface, the electric height-adjustable examination tables are manufactured with precision double square guides. As a result, the height adjustment takes place without lateral offset.
  • The smooth-running electric motor is maintenance-free and splash-proof. It is controlled by a hand switch (alternatively - without surcharge - by foot switch). The height adjustment (650 - 850 mm) can also be operated by heavier patients (up to 200 kg). The adjustment system is equipped with a key lock. Motor connection values: 230V, 50/60 Hz., 3.7A, 850W, IPX4, v=11mm/s, 10,000N.
  • The examination tables with electric height adjustment are available in two widths:
    • Width 650 mm, Article No.: H-SU 1065/E, H-SU 2065/E and H-SU 3065/E,
    • Width 800 mm, Article No.: H-SU 1080/E, H-SU 2080/E and H-SU 3080/E.
  • The stability and robustness is achieved by the gusset plates in the frame corners.
  • The height adjustment mechanism is made of lacquered blank steel.
  • The profiles of the upholstered frame are made of:
    • Lacquered blank steel, Article No.: H-SU 1065/E and H-SU 1080/E,
    • Chrome-plated blank steel, Article No.: H-SU 2065/E and H-SU 2080/E,
    • Stainless steel, Article No.: H-SU 3065/E and H-SU 3080/E.
  • The two upholstery segments (headrest and main surface) each have a thickness of 64 mm.
  • The crossbars of the flat foot construction, which are chrome-plated and equipped with levelling feet, are more resistant to external influences (e.g. vacuum cleaner knocks, etc.) than a plastic-coated version.
  • The headrest can be adjusted continuously up to +/- 30° and locked in place by a handle with a clamping rod mechanism.

Technical details

 Table width 650 m
Article numberH-SU 1065/EH-SU 2065/EH-SU 3065/E
FrameLacqueredChromeStainless steel
Length
Headrest/main section		1,900 mm
500 / 1,400 mm
Width650 mm
Height adjustment650 - 850 mm (electric motor)
Upholstery segments2 sections
Upholstery thickness64 mm
Headrest adjustment+/- 30° (clamping rods)
Load capacity200 kg
 Table width 800 mm
Article numberH-SU 1080/EH-SU 2080/EH-SU 3080/E
FrameLacqueredChromeStainless steel
Length
Headrest/main section		1,900 mm
500 / 1,400 mm
Width800 mm
Height adjustment650 - 850 mm (electric motor)
Upholstery segments2 sections
Upholstery thickness64 mm
Headrest adjustment+/-30° (clamping rods)
Load capacity200 kg

In the above tables, the term 'frame' only refers to the upholstered tabletop frame. The height adjustment mechanism is only available in lacquered finish and the crossbars (with levelling feet) in chrome-plated finish.

The standard version includes:
  • Levelling feet on the chrome-plated crossbars.

We offer the coloured lacquer coating of the frames as standard in the following three shades (see frame colour selection card):

  • light grey (RAL 7035)
  • white aluminum (RAL 9006)
  • pure white (RAL 9010).

The high quality finish has a glossy look. It is disinfectant resistant and easy to clean.

Other colours are of course also available. Please let us know the desired RAL colour so that we can find out the corresponding additional costs. Please note, however, that these products are then considered type variants with no right of return.

The artificial leather covers we use are characterized by their tear resistance, durability, longevity and their good cleaning properties as well as their resistance to disinfectants.

We use a (colour) selection from the synthetic leather covers VOWAled Pisa (Vowalon). The colour selection card can be found here.

In addition, we offer you the service of manufacturing the upholstery in other colours or from other synthetic leather manufacturers (type variant). After prior agreement, please send us the relevant references.

The black electrically conductive synthetic leather cover (with equipotential bonding socket on the frame) is available at an additional cost. It is already included in the price of the operating tables and multifunction tables.

Image gallery

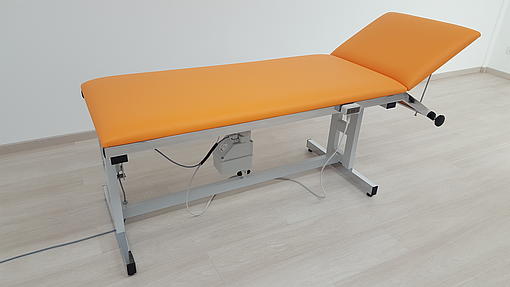

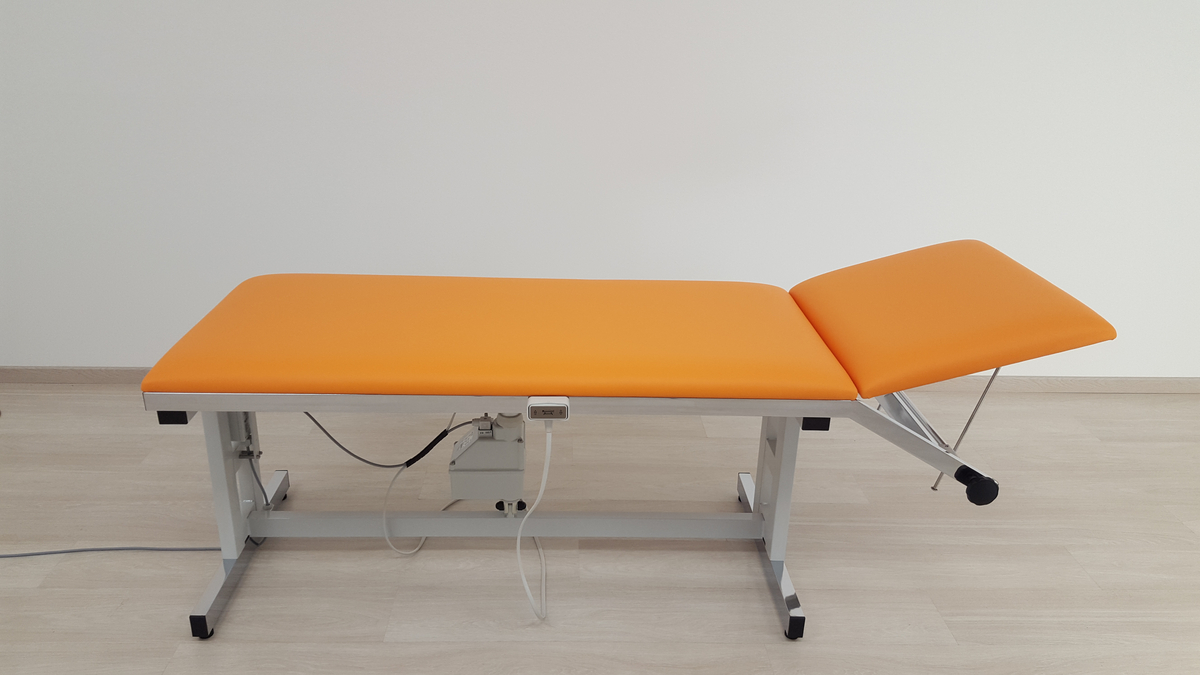

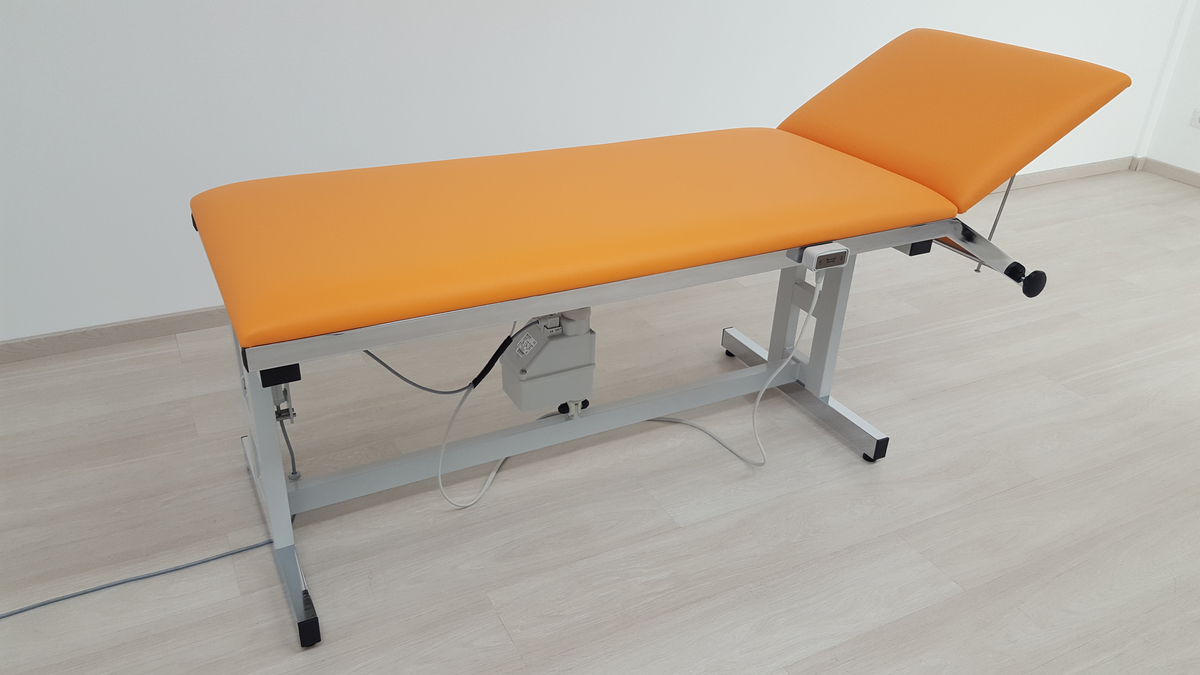

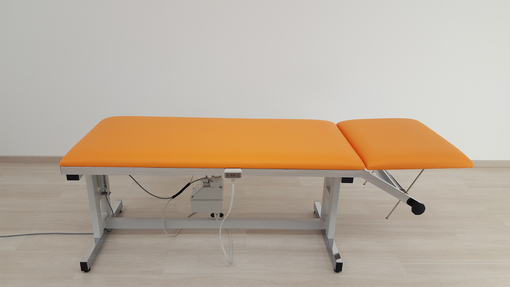

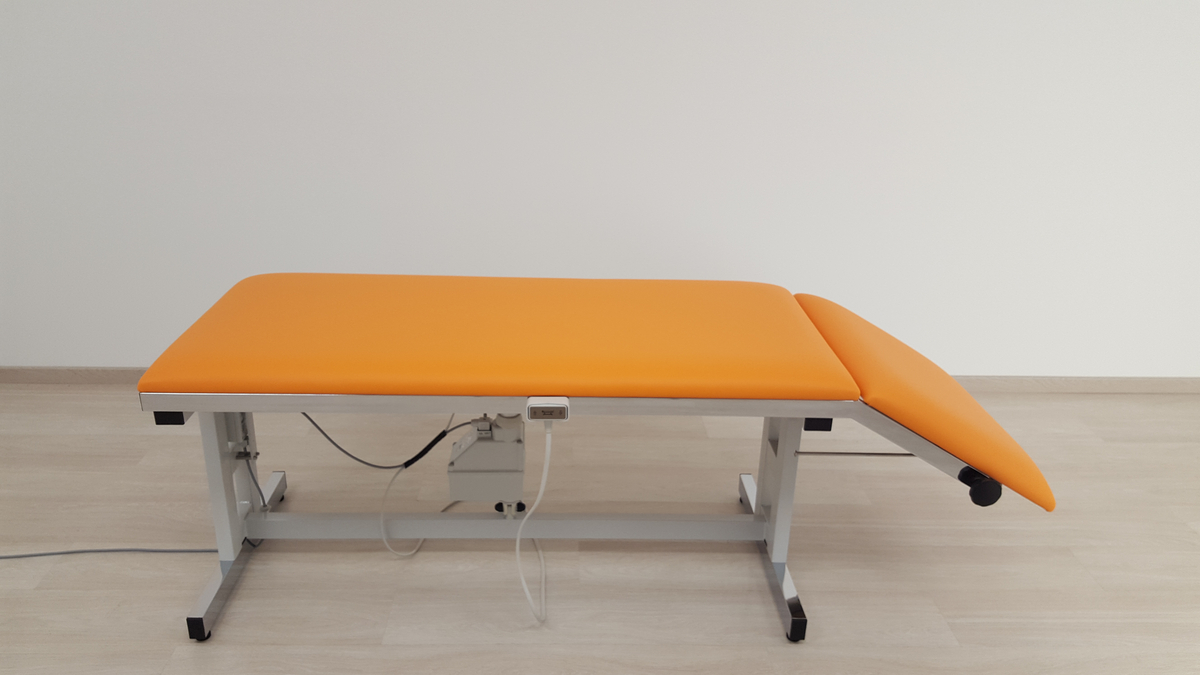

The photos show the examination table with electric height adjustment, Article No.: H-SU 2065/E, in the colours:

  • Upholstery frame: chrome,
  • Frame: light grey RAL 7035,
  • Upholstery: tangerine.



Accessories & additional options

Article No.

Description
GS-1710
EfGS		Face cutout in the headrest, oval, dimensions approx. 205 x 105 mm (L x W). Retrofitting is not possible.
Upholstered insert for closing the face opening, oval, dimensions approx. 200 x 100 mm (L x W). See upholstery colours.
KVGHeadrest adjustment via gas pressure spring (instead of clamping rod mechanism), can be operated with just one hand, release button located directly on the headboard. Retrofitting is not possible.
LR-75
LR-125		Set of castors, Ø 75 mm.
Set of castors, Ø 125 mm.
Four swivel castors, two of which are completely lockable.
LR/Z-125Central locking castor system, double swivel castors Ø 125 mm.
Mobility in the form of a central locking system, all four castors offer excellent rolling properties and are connected to each other by rods, foot pedals are arranged diagonally at the head and foot end, easy to operate and with coloured markings (green = table ready for moving, red = table locked in place). Retrofitting is not possible.
OPS-40/A
OPS-60/A
OPS-100/A
OPS-140/A

Standard rails (pair), approx. length 400 mm.
Standard rails (pair), approx. length 600 mm.
Standard rails (pair), approx. length 1,000 mm.
Standard rails (pair), approx. length 1,400 mm.
Made of CrNi steel, dimensions approx. 25 x 10 mm, for mounting on the upholstery frame, approx. 13.5 mm away from the upholstery/upper frame with 2 (or 3) spacers. Retrofitting is not possible.

PU-6000
PE-8000

Paper roll holder, for table width 650 mm.
Paper roll holder, for table width 800 mm.
Chrome-plated, consisting of two brackets and a paper roll holder bar (length 615 / 795 mm, Ø 20 x 1 mm), for mounting (from below) on the upholstered headboard.

The components mentioned above are just a small excerpt.  The following accessories are also available: infusion stand, all-around edge/ram protection, positioning aids, mobile base on castors, patient belts, removable or pivoting side guards, shock position/trendelenburg adjustment, wall deflector rings in the four corners of the table.

More accessories

Product variants

As a manufacturer, we are able to adapt our products to your individual needs. Below, you will find examples of customer-specific requests we have implemented.

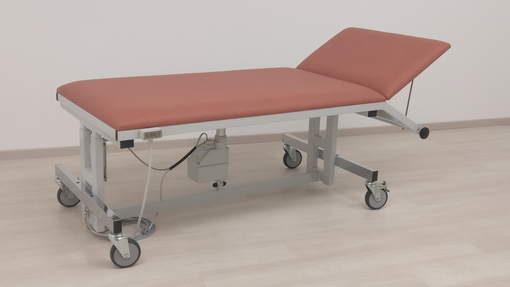

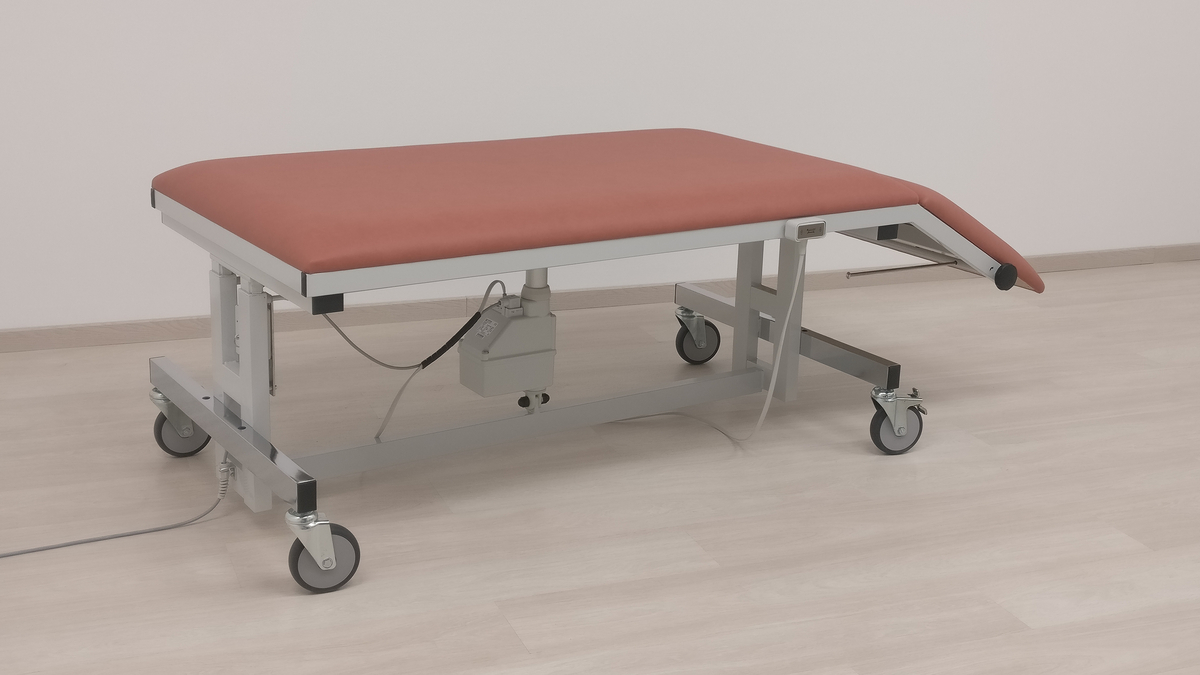

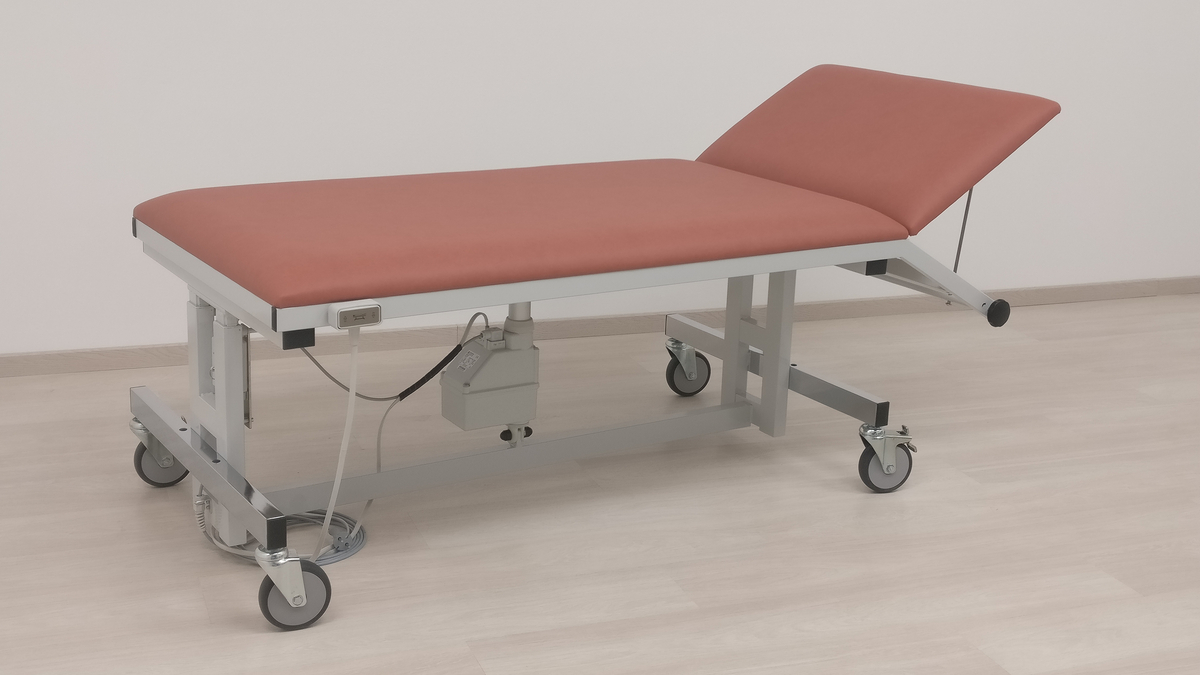

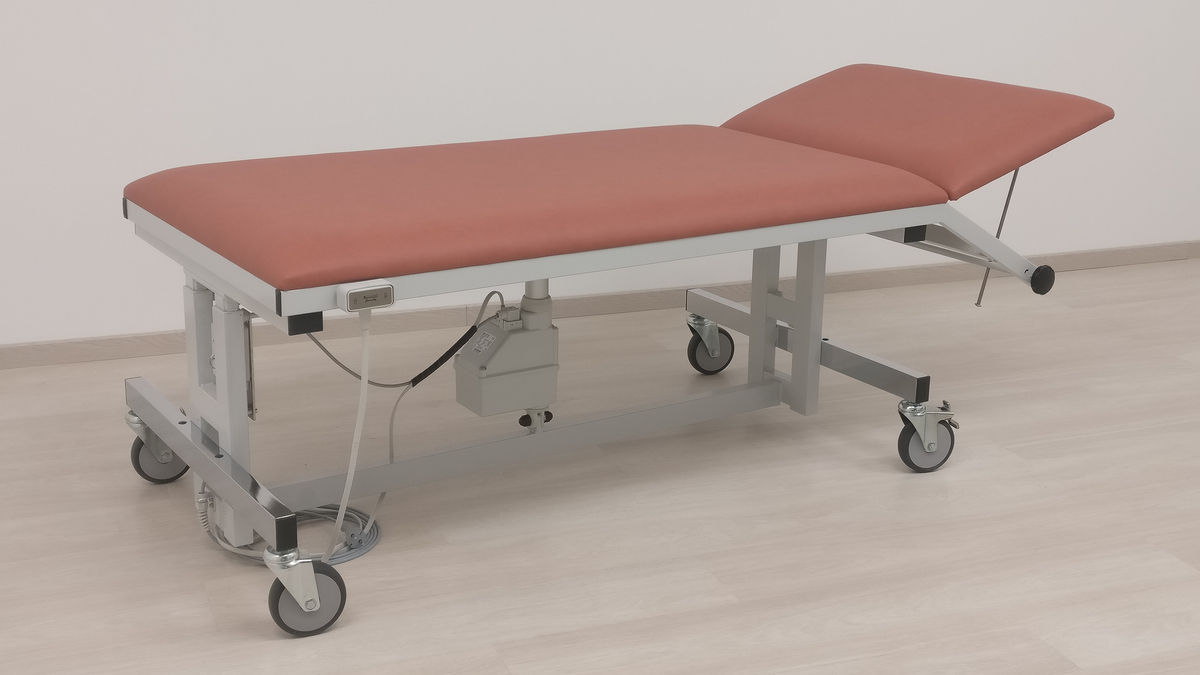

The photos show the examination table with electric height adjustment, Article No.: H-SU 1080/E, in the colours:

  • Frame: light grey RAL 7035,
  • Upholstery: rosewood

as well as the additional accessories and equipment components:

  • Set of castors, Ø 125 mm, Article No.: LR-125, for table height 650 - 850 mm.

Questions? Contact us today!

Do you have questions about our products or services? Would like to get to know us? Contact us today, we will be pleased to provide expert advice tailored to your needs.

CONTACT AGA

Product videos

elektromotorische Höhenverstellung bei der Untersuchungsliege
Height adjustment up and downExternal Video (youtube)

Illustration of the electric height adjustment of the examination table, Article No.: H-U 1065/E. The adjustment system has a button lock that is deactivated with a double tap.

stufenlose Kopfteilverstellung bei einer Echo-Kardiographieliege
Echocardiography table EKA-1065/AAExternal Video (youtube)

Illustration and operation of the continuous headrest adjustment by clamping rod mechanism, Article No.: EKA-1065/AA.
