Examination tables, tabletop in 3 sections
Examination tables with 3-section upholstery.
Examination tables with a 3-piece tabletop for versatile use
Three-section examination tables from AGA Sanitätsartikel make it possible, for example, to quickly bring a collapsing patient into the "shock position" by lifting the foot section pad. Since both pad segments (at the head and foot end) can be adjusted upwards (positively), patients can be positioned universally.
The 3-section examination tables are available in three frame finishes (lacquered, chrome-plated and stainless steel) and three widths (650 mm, 800 mm and 1,000 mm).
Due to many applications in medicine and the different body sizes of the users, the 3-section examination tables are available at no extra cost in four heights 8650 mm, 700 mm, 750 mm and 800 mm). If no table height is specified when placing the order, these examination tables will be delivered with a standard height of 650 mm.
Features
- The 3-section examination tables are available in three widths:
- Width 650 mm, Article No.: U-1065/3, U-2065/3 and U-3065/3,
- Width 800 mm, Article No.: EKG-1080/3, EKG-2080/3 and EKG-3080/3,
- Width 1,000 mm, Article No.: GYMK-10100/3, GYMK-20100/3 and GYMK-30100/3.
- Stability and robustness are achieved by the gusset plates in the frame corners and the cross bracing between the table legs.
- The tubular steel frames consist of:
- Lacquered blank steel, Article No.: U-1065/3, EKG-1080/3 and GYMK-10100/3,
- Chrome-plated blank steel, Article No.: U-2065/3, EKG-2080/3 and GYMK-20100/3,
- Stainless steel, Article No.: U-3065/3, EKG-3080/3 and GYMK-30100/3.
- The table legs are fitted with floor protectors (impact caps).
- The upholstery segments (head section, middle, foot section) each have a thickness of 64 mm.
- The upholstered lengths are ergonomically selected:
- 500 mm, continuously positively adjustable headrest,
- 500 mm, fixed middle section,
- 900 mm, continuously positively adjustable foot section.
- The upholstered construction, with a second headrest at the foot end (lengths 500-900-500 mm), is available at no extra charge. However, this must be specified when placing the order.
- If no height is specified when the order is placed, the examination tables are supplied at a height of 650 mm (also available at no extra charge in heights of 700, 750 and 800 mm).
- The continuous adjustments of the upholstery segments are up to:
- +40° for the headrest,
- +20° for the foot section.
- They are each locked in place by a handle with a clamping rod mechanism.
Technical data
| Table width 650 mm | ||||||||
|---|---|---|---|---|---|---|---|---|
| Article number | U-1065/3 | U-2065/3 | U-3065/3 | |||||
| Frame | Lacquered | Chrome | Stainless steel | |||||
| Length Head/middle/foot sections | 1,900 mm 500 / 500 / 900 mm | |||||||
| Width | 650 mm | |||||||
| Heights (no extra charge) | 650 / 700 / 750 / 800 mm | |||||||
| Upholstery segments | 3 sections | |||||||
| Upholstery thickness | 64 mm | |||||||
| Headrest adjustment | +40° (clamping rods) | |||||||
| Foot section adjustment | +20° (clamping rods) | |||||||
| Load capacity | 200 kg | |||||||
| Table width 800 mm | ||||||||
|---|---|---|---|---|---|---|---|---|
| Article number | EKG-1080/3 | EKG-2080/3 | EKG-3080/3 | |||||
| Frame | Lacquered | Chrome | Stainless steel | |||||
| Length Head/middle/foot sections | 1,900 mm 500 / 500 / 900 mm | |||||||
| Width | 800 mm | |||||||
| Heights (no extra charge) | 650 / 700 / 750 / 800 mm | |||||||
| Upholstery segments | 3 sections | |||||||
| Upholstery thickness | 64 mm | |||||||
| Headrest adjustment | +40° (clamping rods) | |||||||
| Foot section adjustment | +20° (clamping rods) | |||||||
| Load capacity | 200 kg | |||||||
The standard configuration includes:
- Table legs with floor protectors (impact caps).
We offer the coloured lacquer coating of the frames as standard in the following three shades (see frame colour selection card):
- light grey (RAL 7035)
- white aluminum (RAL 9006)
- pure white (RAL 9010).
The high quality finish has a glossy look. It is disinfectant resistant and easy to clean.
Other colours are of course also available. Please let us know the desired RAL colour so that we can find out the corresponding additional costs. Please note, however, that these products are then considered type variants with no right of return.
The artificial leather covers we use are characterized by their tear resistance, durability, longevity and their good cleaning properties as well as their resistance to disinfectants.
We use a (colour) selection from the synthetic leather covers VOWAled Pisa (Vowalon). The colour selection card can be found here.
In addition, we offer you the service of manufacturing the upholstery in other colours or from other synthetic leather manufacturers (type variant). After prior agreement, please send us the relevant references.
The black electrically conductive synthetic leather cover (with equipotential bonding socket on the frame) is available at an additional cost. It is already included in the price of the operating tables and multifunction tables.
Downloads
pdf | 2 MB
Image galleries
U-3065/3
U-3065/3
U-3065/3
U-3065/3
The photos show the 3-section examination table, Article No.: U-3065/3, in the colours:
- Frame: stainless steel,
- Upholstery: baltic.
EKG-2080/3
EKG-2080/3
EKG-2080/3
EKG-2080/3

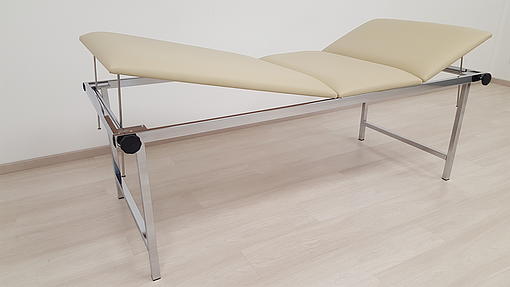

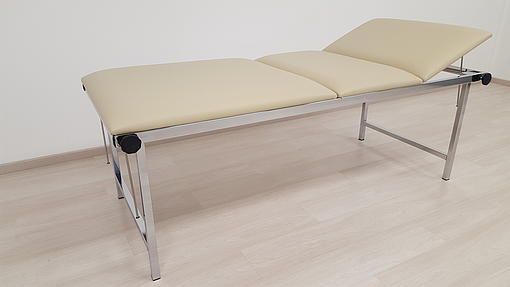

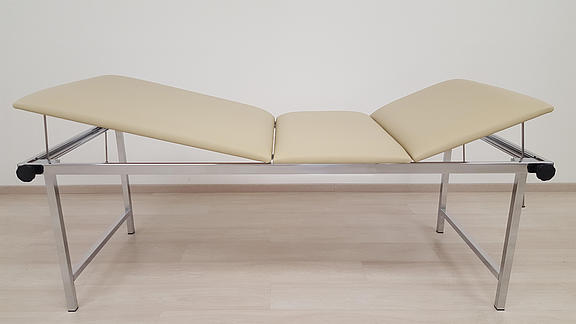

The photos show the 3-section examination table, Article No.: EKG-2080/3, in the colours:
- Frame: chrome,
- Upholstery: birch.
Accessories & additional options
Article No. | Description |
|---|---|
| GS-1710 EfGS | Face cutout in the headrest, oval, dimensions approx. 205 x 105 mm (L x W). Retrofitting is not possible. |
| KVG | Headrest adjustment via gas pressure spring (instead of clamping rod mechanism), can be operated with just one hand, release button located directly on the headboard cushion. Retrofitting is not possible. |
| LR-75 LR-125 | Set of castors, Ø 75 mm. Set of castors, Ø 125 mm. Four swivel castors, two of which are completely lockable. |
| LR/Z-125 | Central locking castor system, double swivel castors Ø 125 mm. Mobility in the form of a central locking system, all four castors offer excellent rolling properties and are connected to each other by rods, foot pedals are arranged diagonally at the head and foot end, easy to operate and with coloured markings (green = table ready for moving, red = table locked in place). Retrofitting is not possible. |
| NF-30 | Levelling feet, set (4 pieces) impact caps with levelling feet, for square steel tube 30 x 30 mm. |
| OPS-40/A OPS-60/A OPS-100/A OPS-140/A OPS-170/A | Standard rails (pair), approx. length 400 mm. Standard rails (pair), approx. length 600 mm. Standard rails (pair), approx. length 1,000 mm. Standard rails (pair), approx. length 1,400 mm. Standard rails (pair), approx. length 1,700 mm. Made of CrNi steel, dimensions approx. 25 x 10 mm, for mounting on the upholstery frame, approx. 13.5 mm away from the upholstery/upper frame with 2 (or 3) spacers. Retrofitting is not possible. |
P-2065 | Paper roll holder, for table width 650 mm. |
| SL-AWL | Shock position/Trendelenburg adjustment, approx. 11°, the upholstery frame at the foot end is equipped with a gas pressure spring, release button embedded in the upholstery frame. Retrofitting is not possible. |
The components mentioned above are just a small excerpt. The following accessories are also available: all-around edge/impact protection, infusion stand, positioning aids, mobile base on castors, patient belts, removable or pivoting side guards, wall deflector rings in the four corners of the table.
Product variants
As a manufacturer, we are able to adapt our products to your individual needs. Below, you will find examples of customer-specific requests we have implemented.
U-1065/3, US-580/3
U-1065/3, US-580/3
U-1065/3, US-580/3
U-1065/3, US-580/3
U-1065/3, US-580/3
U-1065/3, US-580/3
The photos show the 3-section examination table, Article No.: U-1065/3, in the colours:
- Frame: white aluminium RAL 9006,
- Upholstery: grey
as well as the additional accessories and equipment components:
- Drawer unit, Article No.: US-580/3, which can be mounted under both the head and foot end.
GYMK-10100/3, RLM-20, KKM-16
GYMK-10100/3
GYMK-10100/3
GYMK-10100/3
GYMK-10100/3

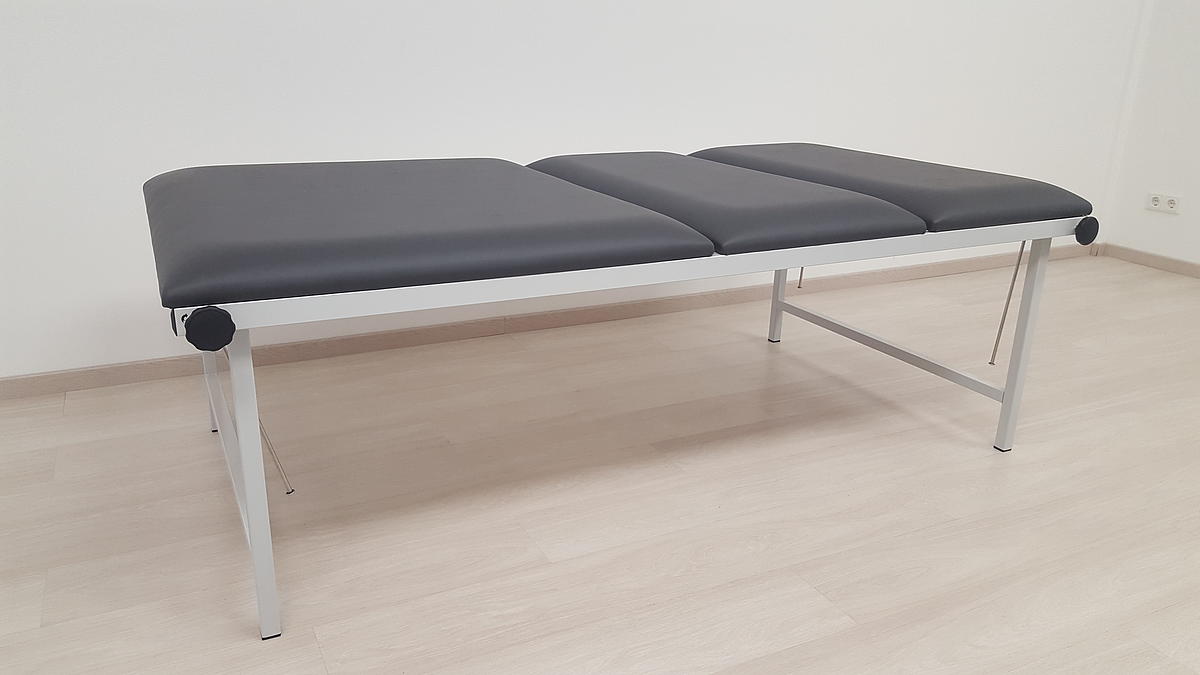

The photos show the 3-section examination table, Article No.: GYMK-10100/3, in the colours:
- Frame: pure white RAL 9010,
- Upholstery: black
as well as the additional accessories and equipment components:
- Knee roll, Article No.: RLM-20,
- Head wedge, Article No.: KKM-16.
U-1065/3
U-1065/3
U-1065/3
U-1065/3
The photos show the 3-section examination table, Article No.: U-1065/3, with modified upholstery, 500 mm long adjustable head and foot sections and a 900 mm long fixed middle section, in the colours:
- Frame: light grey RAL 7035,
- Upholstery: anthracite.
U-1065/3, 2x SG-3000/1
U-1065/3, 2x SG-3000/1
U-1065/3, 2x SG-3000/1
U-1065/3, 2x SG-3000/1
U-1065/3, 2x SG-3000/1
U-1065/3, 2x SG-3000/1
U-1065/3, 2x SG-3000/1
U-1065/3, 2x SG-3000/1
The photos show the 3-section examination table, Order No.: U-1065/3, in the colours:
- Frame: pure white RAL 9010,
- Upholstery: white
as well as the additional accessories and equipment components:
- Side rails (2-pc.), pivoting, Article No.: SG-3000/1.
