2-teilige Untersuchungsliege U-3065 von AGA mit blauer Polsterung

Examination tables, tabletop in 2 sections

Examination tables with 2-section upholstery - the basis equipment in outpatient clinics, practices and medical facilities.

Examination tables with a 2-piece tabletop for versatile use

Examination tables with a tabletop in 2 sections from AGA Sanitätsartikel are available in nine variants, taking into account their frame properties (lacquered, chrome-plated and stainless steel) and widths (650 mm, 800 mm and 1,000 mm).

To better accomodate the different areas of application and the various user body sizes, the 2-section examination tables are available in four different heights at no extra charge (650 mm, 700 mm, 750 mm and 800 mm). If no table height is specified when placing the order, these examination tables will be delivered with a standard height of 650 mm.

AGA Untersuchungsliege U-1065
2-section examination table, Article No.: U-1065

Features

The examination tables (2-pc. tabletop), are the basic models of all our table series in terms of the upholstered segments, the structure, the dimensions and the drilling pattern. The tables stand out with their functionality and may be used in many areas of medicine.

  • They are available in three widths:
    • Width 650 mm, Article No.: U-1065, U-2065 and U-3065,
    • Width 800 mm, Article No.: EKG-1080, EKG-2080 and EKG-3080,
    • Width 1,000 mm, Article No.: GYMK-10100, GYMK-20100 and GYMK-30100.
  • The stability and robustness is achieved by the gusset plates in the frame corners and the cross braces between the table legs.
  • The tubular steel frames are made of:
    • Lacquered blank steel, Article No.: U-1065, EKG-1080 and GYMK-10100,
    • Chrome-plated blank steel, Article No.: U-2065, EKG-2080 and GYMK-20100,
    • Stainless steel, Article No.: U-3065, EKG-3080 and GYMK-30100.
  • The table legs are provided with floor protectors (impact caps).
  • The two upholstery segments (headrest and main surface) each have a thickness of 64 mm.
  • If no height is specified when placing the order, the examination tables will be delivered with a standard height of 650 mm (also available in heights of 700, 750 and 800 mm at no extra charge).
  • The headrest can be adjusted continuously up to +40° and locked in place by a handle with a clamping rod mechanism.

Technical data

 Table width 650 mm
Article numberU-1065U-2065U-3065
FrameLacqueredChromeStainless steel
Length
Headrest/main section		1,900 mm
500 / 1,400 mm
Width650 mm
Heights (no extra charge)650 / 700 / 750 / 800 mm
Upholstery segments2 sections
Upholstery thickness64 mm
Headrest adjustment+40° (clamping rods)
Load capacity200 kg
 Table width 800 mm
Article numberEKG-1080EKG-2080EKG-3080
FrameLacqueredChromeStainless steel
Length
Headrest/main section		1,900 mm
500 / 1,400 mm
Width800 mm
Heights (no extra charge)650 / 700 / 750 / 800 mm
Upholstery segments2 sections
Upholstery thickness64 mm
Headrest adjustment+40° (clamping rods)
Load capacity200 kg
The standard configuration includes:
  • Table legs equipped with floor protectors (impact caps).

We offer the coloured lacquer coating of the frames as standard in the following three shades (see frame colour selection card):

  • light grey (RAL 7035)
  • white aluminum (RAL 9006)
  • pure white (RAL 9010).

The high quality finish has a glossy look. It is disinfectant resistant and easy to clean.

Other colours are of course also available. Please let us know the desired RAL colour so that we can find out the corresponding additional costs. Please note, however, that these products are then considered type variants with no right of return.

The artificial leather covers we use are characterized by their tear resistance, durability, longevity and their good cleaning properties as well as their resistance to disinfectants.

We use a (colour) selection from the synthetic leather covers VOWAled Pisa (Vowalon). The colour selection card can be found here.

In addition, we offer you the service of manufacturing the upholstery in other colours or from other synthetic leather manufacturers (type variant). After prior agreement, please send us the relevant references.

The black electrically conductive synthetic leather cover (with equipotential bonding socket on the frame) is available at an additional cost. It is already included in the price of the operating tables and multifunction tables.

Image galleries

The photo shows the examination table (2-pc. tabletop), Article No.: U-3065, in the colours:

  • Frame: stainless steel,
  • Upholstery: white.

The photo shows the examination table (2-pc. tabletop), Article No.: EKG-2080, in the colours:

  • Frame: chrome,
  • Upholstery: atoll.

Accessories & additional options

Article No.

Description
GS-1710
EfGS

Face cutout in the headrest, oval, dimensions approx. 205 x 105 mm (L x W). Retrofitting is not possible.
Upholstered insert for closing the face opening, oval, dimensions approx. 200 x 100 mm (L x W). See upholstery colours.

KVGHeadrest adjustment via gas pressure spring (instead of clamping rod mechanism), can be operated with just one hand, release button located directly on the headboard cushion. Retrofitting is not possible.
LR-75
LR-125		Set of castors, Ø 75 mm.
Set of castors, Ø 125 mm.
Four swivel castors, two of which are completely lockable.
LR/Z-125Central locking castor system, double swivel castors Ø 125 mm.
Mobility in the form of a central locking system, all four castors offer excellent rolling properties and are connected to each other by rods, foot pedals are arranged diagonally at the head and foot end, easy to operate and with coloured markings (green = table ready for moving, red = table locked in place). Retrofitting is not possible.
NF-30Levelling feet, set (4 pieces) impact caps with levelling feet, for square steel tube 30 x 30 mm.
OPS-40/A
OPS-60/A
OPS-100/A
OPS-140/A
OPS-170/A 		Standard rails (pair), approx. length 400 mm.
Standard rails (pair), approx. length 600 mm.
Standard rails (pair), approx. length 1,000 mm.
Standard rails (pair), approx. length 1,400 mm.
Standard rails (pair), approx. length 1,700 mm.
Made of CrNi steel, dimensions approx. 25 x 10 mm, for mounting on the upholstery frame, approx. 13.5 mm away from the upholstery/upper frame with 2 (or 3) spacers each. Retrofitting is not possible.

P-2065
P-2080

Paper roll holder, for table width 650 mm.
Paper roll holder, for table width 800 mm.
Chrome-plated, consisting of two brackets, two clamps and a paper roll holder bar (length 615 / 795 mm, Ø 20 x 1 mm), for mounting on the table legs.

SL-AWLShock position/Trendelenburg adjustment, approx. 11°, the upholstery frame at the foot end is equipped with a gas pressure spring, release button embedded in the upholstery frame. Retrofitting is not possible.

The components mentioned above are just a small excerpt. The following accessories are also available: all-around edge/impact protection, infusion stand, positioning aids, mobile base on castors, patient belts, removable or pivoting side guards, wall deflector rings in the four corners of the table.

More accessories

Product variants

As a manufacturer, we are able to adapt our products to your individual needs. Below, you will find examples of customer-specific requests we have implemented.

The photos show the examination table (2-pc. tabletop), Article No.: EKG-1080, in the colours:

  • Frame: white aluminium RAL 9006,
  • Upholstery: pimento brown (custom colour, provided by customer)

as well as the additional accessories and equipment components:

  • Two pivoting side guards, Article No.: SG-1000/1.

The photos show the examination table (2-pc. tabletop), Article No.: GYMK-30100, with a table width of 900 mm and a table height of 480 mm, in the colours:

  • Frame: stainless steel,
  • Upholstery: taupe (Stamskin Top F4340-20150, provided by customer).

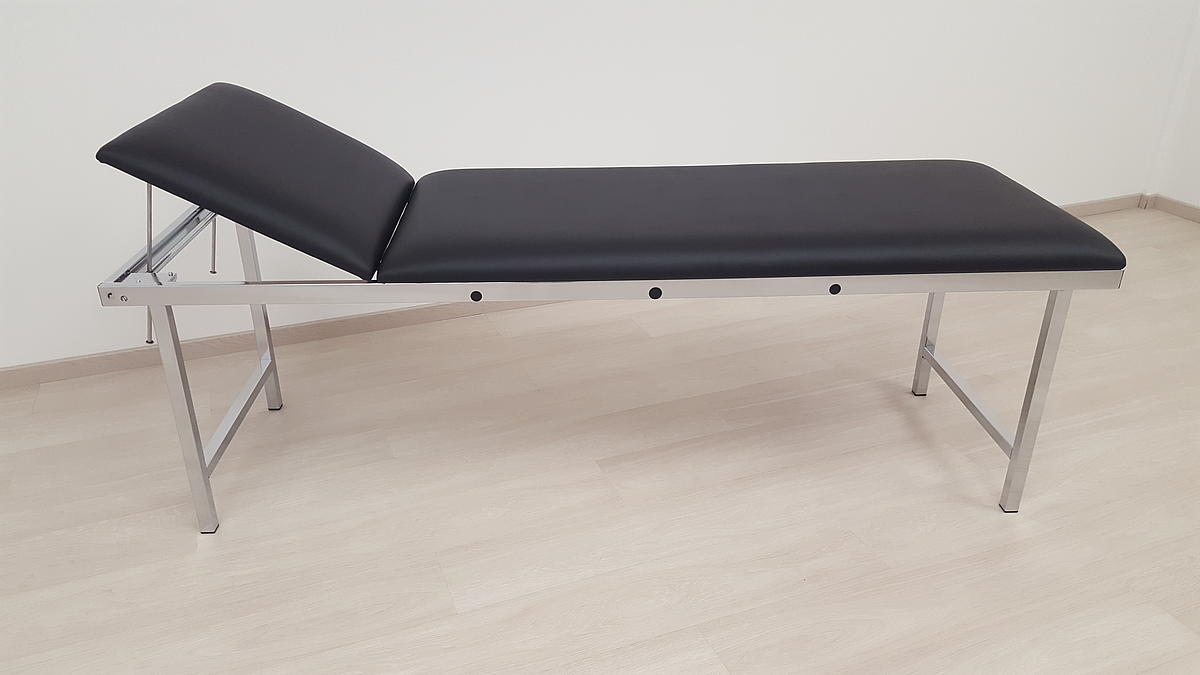

The photos show the examination table (2-pc. tabletop), Article No.: U-2065, in the colours:

  • Frame: chrome,
  • Upholstery: black

as well as the additional accessories and equipment components:

  • Mountings for retrofitting a side guard, right side, holes are closed with caps,
  • Side guard, pivoting, left side, Article No.: SG-2000/1.

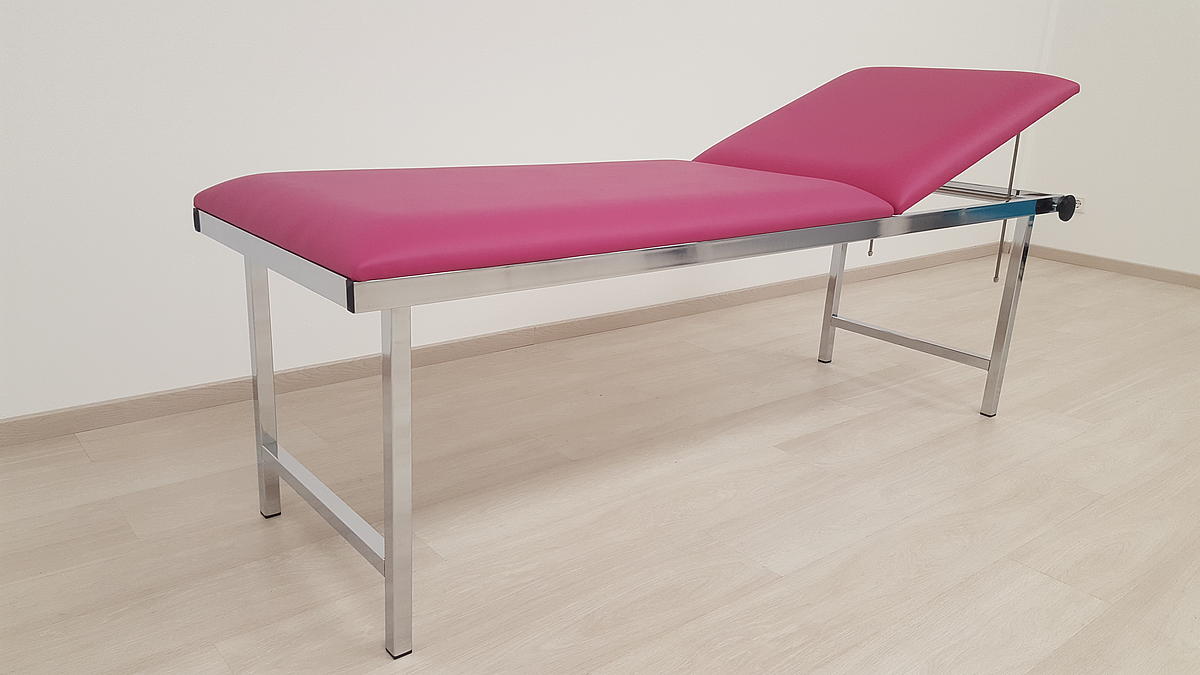

The photos show the examination table (2-pc. tabletop), Article No.: U-2065, with a 750 mm long headrest, in the colours:

  • Frame: chrome,
  • Upholstery: magenta.

Questions? Contact us today!

Do you have questions about our products or services? Would like to get to know us? Contact us today, we will be pleased to provide expert advice tailored to your needs.

CONTACT AGA

Product videos

stufenlose Kopfteilverstellung bei einer Echo-Kardiographieliege
Echocardiography table EKA-1065/AAExternal Video (youtube)

Illustration and operation of the continuous headrest adjustment by clamping rod mechanism, Article No.: EKA-1065/AA.
