Echocardiography tables with hydraulic height adjustment
Hydraulic height-adjustable echocardiography tables are the solution for a height adjustment mechanism independent of the power supply.
Echocardiography tables with hydraulic height adjustment
Are you looking for an echocardiography table that can be adjusted in height independently of the power supply? Just like the echocardiography tables with manual height adjustment, the echocardiography tables with hydraulic height adjustment offer this option.
The hydraulics are operated by the centrally installed foot pump. To adjust the upholstered frame upwards, the lever must be pushed down with the foot and to lower the upholstered frame, the pedal must be lifted with the foot.
The echocardiography tables are available in two frame finishes (lacquered and chrome-plated) as well as two widths (650 mm and 800 mm).
Features
- In order to avoid rocking and swinging movements of the tabletop, these hydraulic height-adjustable echocardiography tables are manufactured with precision double square guides. This ensures height adjustment without lateral offset.
- The hydraulics are operated by the centrally installed foot pump. The height adjustment (650 - 850 mm) can of course also be carried out with heavier patients (up to 200 kg) without any effort. An additional foot lever can be fitted to operate the hydraulics from both sides. This is available at an extra charge (Article No.: FPH-10).
- The echocardiography tables with hydraulic height adjustment are available in two widths:
- Width 650 mm, Article No.: H-EKA 1065/Y and H-EKA 2065/Y,
- Width 800 mm, Article No.: H-EKA 1080/Y and H-EKA 2080/Y.
- The two table widths have different echo cutout sizes:
- Table width 650 mm, echo cutout dimensions 315 x 250 mm (L x W),
- Table width 800 mm, echo cutout dimensions 405 x 300 mm (L x W).
- The stability and robustness is achieved by the gusset plates in the frame corners.
- The height adjustment mechanism is made of lacquered blank steel.
- The blank steel profiles of the upholstered frame are:
- Lacquered, Article No.: H-EKA 1065/Y and H-EKA 1080/Y,
- Chrome-plated, Article No.: H-EKA 2065/Y and H-EKA 2080/Y.
- The thickness of each of the three upholstery segments (headrest, main surface and upholstered insert) is 64 mm.
- The chrome-plated crossbars of the flat base construction, which are always fitted with levelling feet, are more resistant to external influences (e.g. vacuum cleaner knocks etc.) than a plastic-coated version.
- The headrest can be adjusted continuously up to +40°. It is locked in place by a handle with a clamping rod mechanism.
Technical details
| Table width 650 m | |||
|---|---|---|---|
| Article number | H-EKA 1065/Y | H-EKA 2065/Y | |
| Frame | Lacquered | Chrome | |
| Length Headrest/main section | 1,900 mm 500 / 1,400 mm | ||
| Width | 650 mm | ||
| Height adjustment | 650 - 850 mm (hydraulic) | ||
| Upholstery segments | 3 sections | ||
| Upholstery thickness | 64 mm | ||
| Head section adjustment | +40° (clamping rods) | ||
| Echo cutout | 315 x 250 mm (L x W) | ||
| Load capacity | 200 kg | ||
| Table width 800 mm | |||
|---|---|---|---|
| Article number | H-EKA 1080/Y | H-EKA 2080/Y | |
| Frame | Lacquered | Chrome | |
| Length Headrest/main section | 1,900 mm 500 / 1,400 mm | ||
| Width | 800 mm | ||
| Height adjustment | 650 - 850 mm (hydraulics) | ||
| Upholstery segments | 3 sections | ||
| Upholstery thickness | 64 mm | ||
| Head section adjustment | +40° (clamping rods) | ||
| Echo cutout | 405 x 300 mm (L x W) | ||
| Load capacity | 200 kg | ||
In the above tables, the term 'frame' only refers to the upholstered tabletop frame. The height adjustment mechanism is only available in lacquered finish and the crossbars (with levelling feet) in chrome-plated finish.
The standard version includes:
- Removable (slide-in) upholstered insert to close the echo cutout.
- Levelling feet on the chrome-plated crossbars.
We offer the coloured lacquer coating of the frames as standard in the following three shades (see frame colour selection card):
- light grey (RAL 7035)
- white aluminum (RAL 9006)
- pure white (RAL 9010).
The high quality finish has a glossy look. It is disinfectant resistant and easy to clean.
Other colours are of course also available. Please let us know the desired RAL colour so that we can find out the corresponding additional costs. Please note, however, that these products are then considered type variants with no right of return.
The artificial leather covers we use are characterized by their tear resistance, durability, longevity and their good cleaning properties as well as their resistance to disinfectants.
We use a (colour) selection from the synthetic leather covers VOWAled Pisa (Vowalon). The colour selection card can be found here.
In addition, we offer you the service of manufacturing the upholstery in other colours or from other synthetic leather manufacturers (type variant). After prior agreement, please send us the relevant references.
The black electrically conductive synthetic leather cover (with equipotential bonding socket on the frame) is available at an additional cost. It is already included in the price of the operating tables and multifunction tables.
Downloads
pdf | 1 MB
Image gallery
H-EKA 1080/Y, EKA-AA, P-2080/A
H-EKA 1080/Y, EKA-AA, P-2080/A
The photos show the echocardiography table with hydraulic height adjustment, Article No.: H-EKA 1080/Y, in the colours:
- Frame: light grey RAL 7035,
- Upholstery: grey
as well as the additional accessories and equipment components:
- Upholstered insert in folding version, Article No.: EKA-AA,
- Paper roll holder, Article No.: P-2080/A.
Accessories & additional options
Article No. | Description |
|---|---|
EKA-AA | Folding upholstered insert, instead of removable version, permanently connected to the echocardiography table, only possible with 800 mm wide echocardiography tables. Retrofitting is not possible. |
| FPH-10 | Foot lever with transmission shaft and connecting piece. This makes it possible to operate the hydraulic height adjustment from both sides. |
| GS-1710 EfGS | Face cutout in the headrest, oval, dimensions approx. 205 x 105 mm (L x W). Retrofitting is not possible. |
| KVG | Head section adjustment by gas pressure spring (instead of clamping rod mechanism), can be operated with just one hand, release button located directly on the headboard cushion. Retrofitting is not possible. |
| LR-75 LR-125 | Set of castors, castors Ø 75 mm. Set of castors, castors Ø 125 mm. Four swivel castors, two castors are completely lockable. |
| LR/Z-125 | Central locking castor system, double swivel castors Ø 125 mm. Mobility in the form of a central locking system, all four castors offer excellent rolling properties and are connected to each other by rods, foot pedals are arranged diagonally at the head and foot end, easy to operate and with coloured markings (green = table ready for moving, red = table locked in place). Retrofitting is not possible. |
P-2065/A | Paper roll holder, for table width 650 mm. |
The components listed above are only a small selection. The following accessories are also available: all-around edge/impact protection, infusion stands, positioning aids, castor systems, patient belts, standard surgical rails in various lengths, push handles, pivoting and removable side guards, wall deflector rings in the four corners of the table.
Product variants
As a manufacturer, we are able to adapt our products to your individual needs. Below, you will find examples of customer-specific requests we have implemented.
H-EKA 1065/Y, 2nd headrest
H-EKA 1065/Y, 2nd headrest
H-EKA 1065/Y, 2nd headrest
H-EKA 1065/Y, 2nd headrest
H-EKA 1065/Y, 2nd headrest
H-EKA 1065/Y, 2nd headrest
H-EKA 1065/Y, 2nd headrest
H-EKA 1065/Y, 2nd headrest

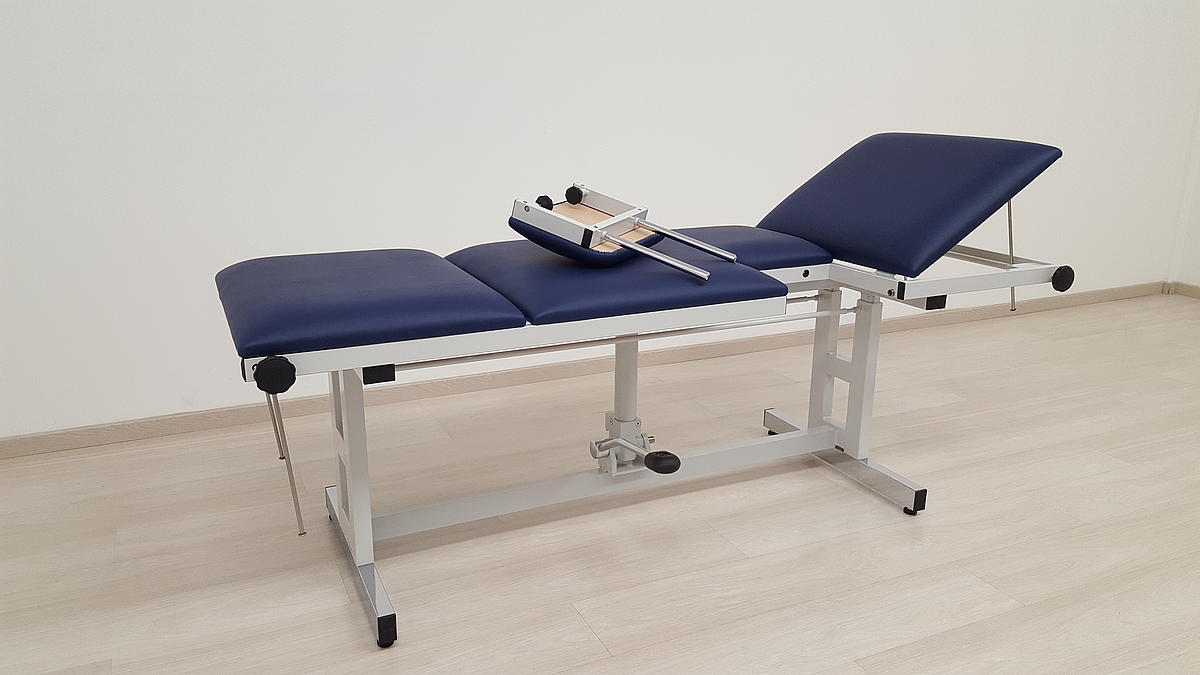

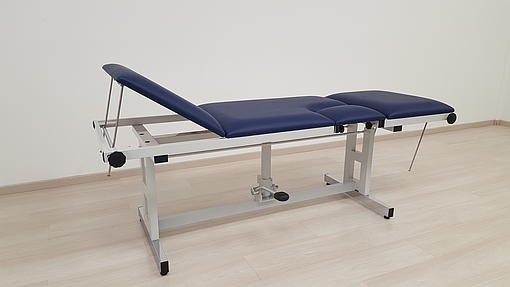

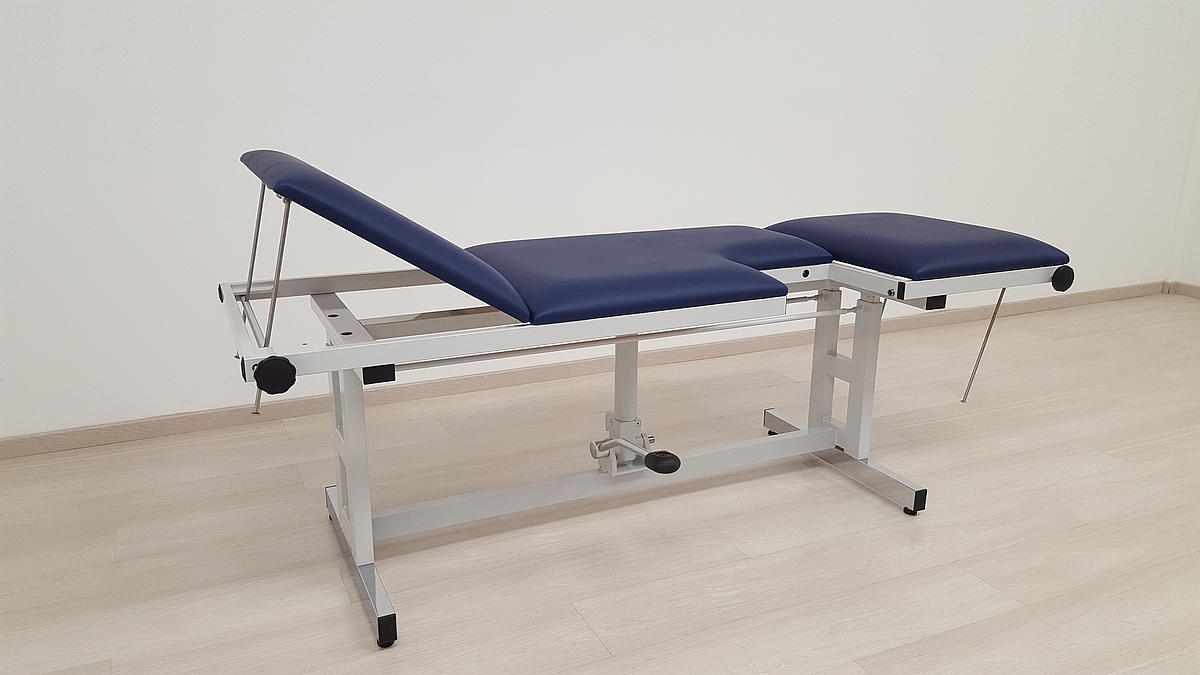

The photos show the echocardiography table with hydraulic height adjustment, Article No.: H-EKA 1065/Y, with a second headrest at the foot end, 500 mm long adjustable head and foot sections and a 900 mm long fixed centre section, in the colours:
- Frame: light grey RAL 7035,
- Upholstery: blue.
H-EKA 1065/Y, LR/Z-125, ULKRS-4022
H-EKA 1065/Y, LR/Z-125, ULKRS-4022
H-EKA 1065/Y, LR/Z-125, ULKRS-4022
H-EKA 1065/Y, LR/Z-125, ULKRS-4020
H-EKA 1065/Y, LR/Z-125, ULKRS-4022
H-EKA 1065/Y, LR/Z-125, ULKRS-4022
H-EKA 1065/Y, LR/Z-125, ULKRS-4022
H-EKA 1065/Y, LR/Z-125, ULKRS-4022
The photos show the echocardiography table with hydraulic height adjustment, Article No.: H-EKA 1065/Y, in the colours:
- Frame: pure white RAL 9010,
- Upholstery: white
as well as the additional accessories and equipment components:
- Central locking castor system, castors Ø 125 mm, Article No.: LR/Z-125, for table height 650 - 850 mm,
- All-around edge/impact protection, Article No.: ULKRS-4022.
