Echocardiography table with foldable padding insert for echo cutout

Echocardiography tables with folding cushion insert

Echocardiography tables with folding upholstered insert. They are an indispensable basis for echocardiography, one of the primary, non-invasive examination methods of the heart, in every cardiology practice or hospital.

Echocardiography tables with folding cushion insert

The design of the echocardiography tables is based on the 2-section examination tables. However, cutouts are incorporated into the tabletop surfaces of the echocardiography tables especially for cardiac examinations using a transducer. The corresponding hinged upholstered insert for closing the cutout, which is firmly attached to the table, is included with every echocardiography table from AGA Sanitätsartikel.

The echocardiography tables with the folding upholstered insert are also available in three frame finishes (lacquered, chrome-plated and stainless steel) as well as two widths (650 mm and 800 mm).

To better accomodate the various body sizes of the users, the echocardiography tables are available at no extra charge in the heights of 650 mm, 700 mm, 750 mm and 800 mm. If no table height is specified when the order is placed, the echocardiography tables are supplied at a standard height of 650 mm.

AGA Echo-Kardiographieliege EKA-1080/AA
Echocardiography table, Article No.: EKA-1080/AA

Features

  • The stability and robustness is achieved by the gusset plates in the frame corners and the cross and longitudinal struts between the lounger legs and in the upholstered frame.
  • The echocardiography tables are available in two widths:
    • Width 650 mm, Article No.: EKA-1065/AA, EKA-2065/AA and EKA-3065/AA,
    • Width 800 mm, Article No.: EKA-1080/AA, EKA-2080/AA and EKA-3080/AA.
  • The two table widths have different cutout sizes:
    • Table width 650 mm, echo cutout dimensions 315 x 250 mm (L x W),
    • Table width 800 mm, echo cutout dimensions 405 x 300 mm (L x W).
  • The tubular steel frames are made of:
    • Lacquered blank steel, Article No.: EKA-1065/AA and EKA-1080/AA,
    • Chrome-plated blank steel, Article No.: EKA-2065/AA and EKA-2080/AA,
    • Stainless steel, Article No.: EKA-3065/AA and EKA-3080/AA.
  • The table legs are fitted with floor protectors (impact caps) at the end.
  • The thickness of each of the three upholstery segments (headrest, main surface and upholstered insert) is 64 mm.
  • If no height is specified when the order is placed, the echocardiography tables are supplied at a standard height of 650 mm (also available in heights of 700, 750 and 800 mm at no extra charge).
  • The headrest can be adjusted continuously up to +40°. It is locked in place by a handle with a clamping rod mechanism.

Technical details

 Table width 650 m
Article numberEKA-1065/AAEKA-2065/AAEKA-3065/AA
FrameLacqueredChromeStainless steel
Length
Headrest/main surface		1,900 mm
500 / 1,400 mm
Width650 mm
Heights (without surcharge)650 / 700 / 750 / 800 mm
Upholstery segments3 sections
Upholstery thickness64 mm
Head section adjustment+40° (clamping rods)
Echo cutout315 x 250 mm (L x W)
Load capacity200 kg
 Table width 800 mm
Article numberEKA-1080/AAEKA-2080/AAEKA-3080/AA
FrameLacqueredChromeStainless steel
Length
Headrest/main surface		1,900 mm
500 / 1,400 mm
Width800 mm
Heights (without surcharge)650 / 700 / 750 / 800 mm
Upholstery segments3 sections
Upholstery thickness64 mm
Head section adjustment+40° (clamping rods)
Echo cutout405 x 300 mm (L x W)
Load capacity200 kg
The standard version includes:
  • Folding upholstered insert to close the echo cutout.
  • Table legs with floor protectors (impact caps).

We offer the coloured lacquer coating of the frames as standard in the following three shades (see frame colour selection card):

  • light grey (RAL 7035)
  • white aluminum (RAL 9006)
  • pure white (RAL 9010).

The high quality finish has a glossy look. It is disinfectant resistant and easy to clean.

Other colours are of course also available. Please let us know the desired RAL colour so that we can find out the corresponding additional costs. Please note, however, that these products are then considered type variants with no right of return.

The artificial leather covers we use are characterized by their tear resistance, durability, longevity and their good cleaning properties as well as their resistance to disinfectants.

We use a (colour) selection from the synthetic leather covers VOWAled Pisa (Vowalon). The colour selection card can be found here.

In addition, we offer you the service of manufacturing the upholstery in other colours or from other synthetic leather manufacturers (type variant). After prior agreement, please send us the relevant references.

The black electrically conductive synthetic leather cover (with equipotential bonding socket on the frame) is available at an additional cost. It is already included in the price of the operating tables and multifunction tables.

Image galleries

The photos show the echocardiography table, Article No.: EKA-1080/AA, in the colours:

  • Frame: light grey RAL 7035,
  • Upholstery: light blue.

The photos show the echocardiography table, Article No.: EKA-3080/AA, in the colours:

  • Frame: stainless steel,
  • Upholstery: atoll.

Accessories & additional options

Article No.

Description
GS-1710
EfGS

Face cutout in the headrest, oval, dimensions approx. 205 x 105 mm (L x W). Retrofitting is not possible.
Upholstery insert for closing the face opening, oval, dimensions approx. 200 x 100 mm (L x W), see upholstery colours.

KVG

Headrest adjustment via gas pressure spring (instead of clamping rod mechanism), can be operated with just one hand, release button located directly on the headboard cushion. Retrofitting is not possible.

LR-75
LR-125		Set of castors, castors Ø 75 mm.
Set of castors, castors Ø 125 mm.
Four swivel castors, two castors are completely lockable.
LR/Z-125

Central locking castor system, double swivel castors Ø 125 mm.
Mobility in the form of a central locking system, all four castors offer excellent rolling properties and are connected to each other by rods, foot pedals are arranged diagonally at the head and foot end, easy to operate and with coloured markings (green = table ready for moving, red = table locked in place). Retrofitting is not possible.

NF-30

Levelling feet, set (4 pieces), impact caps with levelling feet, for square steel tube 30 x 30 mm.

P-2065
P-2080

Paper roll holder, for table width 650 mm.
Paper roll holder, for table width 800 mm.
Chrome-plated, consisting of two brackets, two clamps and a paper roll holder rod (length 615 / 795 mm, Ø 20 x 1 mm), for mounting on the table legs.

The components listed above are only a small selection. The following accessories are also available: all-around edge/impact protection, infusion stands, positioning aids, castor systems, patient belts, standard surgical rails in various lengths, push handles, pivoting and removable side guards, wall deflector rings in the four corners of the table.

MORE ACCESSORIES

Product variants

As a manufacturer, we are able to adapt our products to your individual needs. Below, you will find examples of customer-specific requests we have implemented.

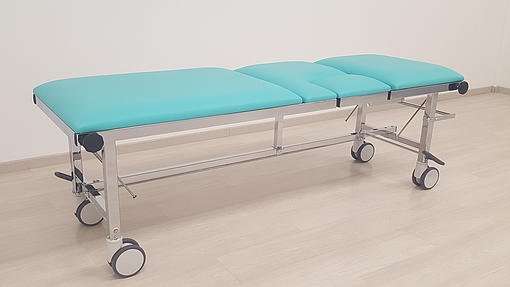

The photos show the echocardiography table, Article No.: EKA-2065/AA, with a continuously adjustable foot section (lengths of upholstered segments: foot section 900 mm, middle section 500 mm and headrest 500 mm), in the colours:

  • Frame: chrome,
  • Upholstery: turquoise

as well as the additional accessories and equipment components:

  • Central locking castor system, castors Ø 125 mm, Article No.: LR/Z-125, for table height 650 mm,
  • Paper roll holder, Article No.: P-2080.

The photos show the echocardiography table, Article No.: EKA-1065/AA, in the colours:

  • Frame: white aluminium RAL 9006,
  • Upholstery: anthracite

as well as the additional accessories and equipment components:

  • Headrest adjustment by gas pressure spring, Article No.: KVG.

The photos show the echocardiography table, Article No.: EKA-2080/AA, in the colours:

  • Frame: chrome,
  • Upholstery: red

as well as the additional accessories and equipment components:

  • Paper roll holder, Article No.: P-2080,
  • Set of castors, castors Ø 125 mm, Article No.: LR-125, for table height 700 mm.

The photos show the echocardiography table, Article No.: EKA-1080/AA, with a second headrest at the foot end, 500 mm long adjustable head and foot sections and a 900 mm long fixed centre section, in the colours:

  • Frame: pure white RAL 9010,
  • Upholstery: black.

Questions? Contact us today!

Do you have questions about our products or services? Would like to get to know us? Contact us today, we will be pleased to provide expert advice tailored to your needs.

CONTACT AGA

Product videos

Echo-Kardiographieliege mit abklappbarem Polstereinsatz und passendem Hocker
Echocardiography table EKA-1065/AAExternal Video (youtube)

Illustration and operation of the continuous headrest adjustment by clamping rod mechanism and the folding mechanism of the upholstered insert on the echocardiography table, Article No.: EKA-1065/AA.
