Echocardiography tables with electric height adjustment (scissor mechanism)
Electric height-adjustable echocardiography tables with extra large adjustment range via a scissor mechanism.
Echocardiography tables with electric height adjustment (larger stroke with scissor mechanism)
The electric height-adjustable echocardiography tables are also available with an extra large stroke. The adjustment range of 430 mm is achieved by a scissor mechanism. A special cutout is incorporated in the back section for cardiac examinations using a transducer.
Controlling the motor by hand or foot switch is the easiest and most convenient way to activate and operate a height adjustment. A socket (preferably a floor socket) for the power connection would be desirable in the close area of the echocardiography table.
The echocardiography table can be lowered to wheelchair height. In the lowest position, the upper edge of the upholstery is approx. 535 mm. This makes these electric height-adjustable echocardiography tables from AGA Sanitätsartikel particularly suitable for frail, elderly or disabled people.
The echocardiography tables with electric height adjustment are available in two frame finishes (lacquered and chrome-plated) as well as two widths (650 mm and 800 mm).
Features
- The height adjustment (535 - 965 mm) is carried out by an electric motor, controlled by a hand switch (alternatively - at no extra charge - by foot switch). The adjustment system is equipped with a button lock. Motor connection values: 230V, 50/60 Hz, 3.7A, 850W, IPX4, v=11mm/s, 10,000N.
- The echocardiography tables with electric height adjustment are available in two widths:
- Width 650 mm, Article No.: H-EKA 1065/E 965 and H-EKA 2065/E 965,
- Width 800 mm, Article No.: H-EKA 1080/E 965 and H-EKA 2080/E 965.
- The stability and robustness is achieved by the gusset plates in the frame corners.
- The dimensions of the cutout are 325 x 260 mm (L x W).
- The frame diagonals and the base frame are made of lacquered blank steel.
- The profiles of the upholstered frame are made of
- Lacquered blank steel, Article No.: H-EKA 1065/E 965 and H-EKA 1080/E 965,
- Chrome-plated blank steel, Article No.: H-EKA 2065/E 965 and H-EKA 2080/E 965.
- The thickness of each of the three upholstery segments (back section, main surface and upholstered insert) is 64 mm.
- The headrest can be adjusted +30° in 13 locking steps.
Technical details
| Table width 650 m | |||
|---|---|---|---|
| Article number | H-EKA 1065/E 965 | H-EKA 2065/E 965 | |
| Frame | Lacquered | Chrome | |
| Length Back section/main surface | 1,900 mm 800 / 1,100 mm | ||
| Width | 650 mm | ||
| Height adjustment | 535 - 965 mm (electric motor) | ||
| Upholstery segments | 3 sections | ||
| Upholstery thickness | 64 mm | ||
| Backrest adjustment | +30° (grid) | ||
| Echo cutout | 325 x 260 mm (L x W) | ||
| Load capacity | 200 kg | ||
| Table width 800 mm | |||
|---|---|---|---|
| Article number | H-EKA 1080/E 965 | H-EKA 2080/E 965 | |
| Frame | Lacquered | Chrome | |
| Length Back section/main surface | 1,900 mm 800 / 1,100 mm | ||
| Width | 800 mm | ||
| Height adjustment | 535 - 965 mm (electric motor) | ||
| Upholstery segments | 3 sections | ||
| Upholstery thickness | 64 mm | ||
| Backrest adjustment | +30° (grid) | ||
| Echo cutout | 325 x 260 mm (L x W) | ||
| Load capacity | 200 kg | ||
In the above tables, the term 'frame' only refers to the upholstered tabletop frame. The base frame and the diagonal braces are only available in a lacquered finish.
The standard version includes:
- Removable (slide-in) upholstered insert to close the echo cutout and
- Floor protectors (push-on caps) on the four adjustable feet.
We offer the coloured lacquer coating of the frames as standard in the following three shades (see frame colour selection card):
- light grey (RAL 7035)
- white aluminum (RAL 9006)
- pure white (RAL 9010).
The high quality finish has a glossy look. It is disinfectant resistant and easy to clean.
Other colours are of course also available. Please let us know the desired RAL colour so that we can find out the corresponding additional costs. Please note, however, that these products are then considered type variants with no right of return.
The artificial leather covers we use are characterized by their tear resistance, durability, longevity and their good cleaning properties as well as their resistance to disinfectants.
We use a (colour) selection from the synthetic leather covers VOWAled Pisa (Vowalon). The colour selection card can be found here.
In addition, we offer you the service of manufacturing the upholstery in other colours or from other synthetic leather manufacturers (type variant). After prior agreement, please send us the relevant references.
The black electrically conductive synthetic leather cover (with equipotential bonding socket on the frame) is available at an additional cost. It is already included in the price of the operating tables and multifunction tables.
Downloads
pdf | 1 MB
Image galleries
H-EKA 1080/E 965
H-EKA 1080/E 965
H-EKA 1080/E 965
H-EKA 1080/E 965

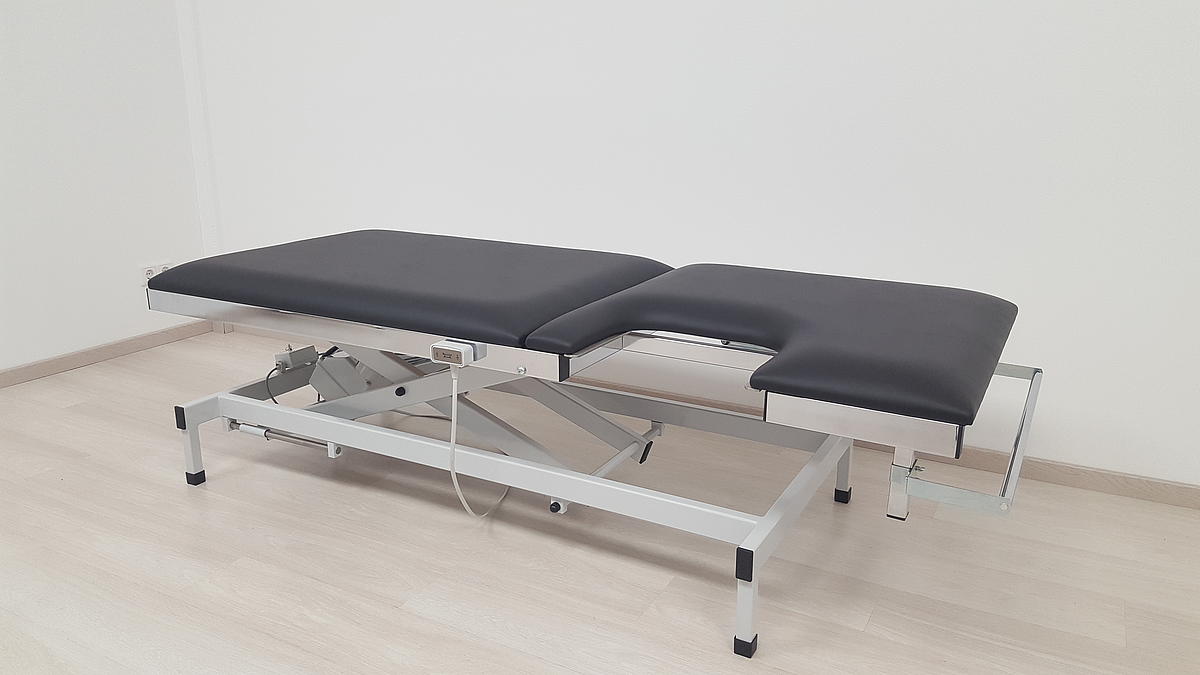

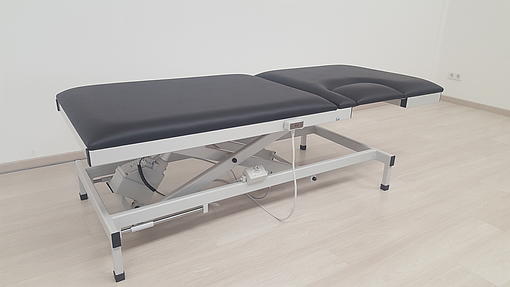

The photos show the echocardiography table with electric height adjustment, Article No.: H-EKA 1080/E 965, in the colours:
