Echocardiography tables with electric height adjustment
In addition to the manual and hydraulic echocardiography tables, we also offer electric height-adjustable echocardiography tables.
Echocardiography tables with height adjustment by electric motor
Echocardiography tables from AGA Sanitätsartikel that can be adjusted in height using an electric motor are a third variant alongside the manual and hydraulic height adjustments.
Controlling the motor by hand or foot switch is the easiest and most convenient way to adjust the height of the table. A socket (preferably a floor socket) for the power connection is desirable in the close area of the echocardiography table.
The echocardiography tables with electric height adjustment are also available in two frame finishes (lacquered and chrome-plated) as well as two widths (650 mm and 800 mm).
A cutout is incorporated into the tabletop surface, especially for cardiac examinations using a transducer.
Features
- In order to avoid rocking and swinging movements of the tabletop, these electric height-adjustable echocardiography tables are manufactured with precision double square profiles. As a result, the height is adjusted without lateral offset.
- The smooth-running electric motor used is maintenance-free and splash-proof. It is controlled by a hand switch (alternatively - at no extra charge - by foot switch). The height adjustment (650 - 850 mm) can of course also be operated with heavier patients (up to 200 kg).The adjustment system is equipped with a button lock. Motor connection values: 230V, 50/60 Hz, 3.7A, 850W, IPX4, v=11mm/s, 10,000N.
- The echocardiography tables with electric height adjustment are available in two widths:
- Width 650 mm, Article No.: H-EKA 1065/E and H-EKA 2065/E,
- Width 800 mm, Article No.: H-EKA 1080/E and H-EKA 2080/E.
- The two table widths have different cutout sizes:
- Table width 650 m, echo cutout dimensions 315 x 250 mm (L x W),
- Table width 800 mm, echo cutout dimensions 405 x 300 mm (L x W).
- The stability and robustness is achieved by the gusset plates in the frame corners.
- The height adjustment mechanism is made of lacquered blank steel.
- The blank steel profiles of the upholstered frame are:
- Lacquered, Article No.: H-EKA 1065/E and H-EKA 1080/E,
- Chrome-plated, Article No.: H-EKA 2065/E and H-EKA 2080/E.
- The thickness of each of the three upholstery segments (headrest, main surface and upholstered insert) is 64 mm.
- The chrome-plated crossbars of the flat base construction, which are fitted with levelling feet, are more resistant to external influences (e.g. vacuum cleaner knocks etc.) than a plastic-coated version.
- The headrest can be adjusted continuously up to +40°. It is locked in place by a handle with a clamping rod mechanism.
Technical details
| Table width 650 m | |||
|---|---|---|---|
| Article number | H-EKA 1065/E | H-EKA 2065/E | |
| Frame | Lacquered | Chrome | |
| Length Headrest/main section | 1,900 mm 500 / 1,400 mm | ||
| Width | 650 mm | ||
| Height adjustment | 650 - 850 mm (electric motor) | ||
| Upholstery segments | 3 sections | ||
| Upholstery thickness | 64 mm | ||
| Head section adjustment | +40° (clamping rods) | ||
| Echo cutout | 315 x 250 mm (L x W) | ||
| Load capacity | 200 kg | ||
| Table width 800 mm | |||
|---|---|---|---|
| Article number | H-EKA 1080/E | H-EKA 2080/E | |
| Frame | Lacquered | Chrome | |
| Length Headrest/main section | 1,900 mm 500 / 1,400 mm | ||
| Width | 800 mm | ||
| Height adjustment | 650 - 850 mm (electric motor) | ||
| Upholstery segments | 3 sections | ||
| Upholstery thickness | 64 mm | ||
| Head section adjustment | +40° (clamping rods) | ||
| Echo cutout | 405 x 300 mm (L x W) | ||
| Load capacity | 200 kg | ||
The frame in the tables is only defined as the quality of the upholstered frame. The height adjustment mechanism is only available in a lacquered finish and the crossbars (with levelling feet) in a chrome-plated finish.
The standard version includes:
- Removable (slide-in) upholstered insert to close the echo cutout.
- Levelling feet on the chrome-plated crossbars.
We offer the coloured lacquer coating of the frames as standard in the following three shades (see frame colour selection card):
- light grey (RAL 7035)
- white aluminum (RAL 9006)
- pure white (RAL 9010).
The high quality finish has a glossy look. It is disinfectant resistant and easy to clean.
Other colours are of course also available. Please let us know the desired RAL colour so that we can find out the corresponding additional costs. Please note, however, that these products are then considered type variants with no right of return.
The artificial leather covers we use are characterized by their tear resistance, durability, longevity and their good cleaning properties as well as their resistance to disinfectants.
We use a (colour) selection from the synthetic leather covers VOWAled Pisa (Vowalon). The colour selection card can be found here.
In addition, we offer you the service of manufacturing the upholstery in other colours or from other synthetic leather manufacturers (type variant). After prior agreement, please send us the relevant references.
The black electrically conductive synthetic leather cover (with equipotential bonding socket on the frame) is available at an additional cost. It is already included in the price of the operating tables and multifunction tables.
Downloads
pdf | 1 MB
Image galleries
H-EKA 1065/E
H-EKA 1065/E
H-EKA 1065/E
H-EKA 1065/E
H-EKA 1065/E
The photos show the echocardiography table with electric height adjustment, Article No.: H-EKA 1065/E, in the colours:
- Frame: light grey RAL 7035,
- Upholstery: white.
H-EKA 1080/E, P-2080/A
H-EKA 1080/E, P-2080/A
H-EKA 1080/E, P-2080/A
H-EKA 1080/E, P-2080/A
The photos show the echocardiography table with electric height adjustment, Article No.: H-EKA 1080/E, in the colours:
- Frame: light grey RAL 7035,
- Upholstery: red
as well as the additional accessories and equipment components:
- Paper roll holder, Article No.: P-2080/A.
Accessories & additional options
Article No. | Description |
|---|---|
EKA-AA | Folding upholstered insert, instead of removable version, permanently connected to the echocardiography table, only possible with 800 mm wide echocardiography tables. Retrofitting is not possible. |
| GS-1710 EfGS | Face cutout in the headrest, oval, dimensions approx. 205 x 105 mm (L x W). Retrofitting is not possible. |
| KVG | Head section adjustment by gas pressure spring (instead of clamping rod mechanism), can be operated with just one hand, release button located directly directly on the headboard cushion. Retrofitting is not possible. |
| LR-75 LR-125 | Set of castors, castors Ø 75 mm. Set of castors, castors Ø 125 mm. Four swivel castors, two castors are completely lockable. |
| LR/Z-125 | Central locking castor system, double swivel castors Ø 125 mm. Mobility in the form of a central locking system, all four castors offer excellent rolling properties and are connected to each other by rods, foot pedals are arranged diagonally at the head and foot end, easy to operate and with coloured markings (green = table ready for moving, red = table locked in place). Retrofitting is not possible. |
P-2065/A | Paper roll holder, for 650 mm width. |
The components listed above are only a small selection. The following accessories are also available:all-around edge/impact protection, infusion stands, positioning aids, castor systems, patient belts, standard surgical rails in various lengths, push handles, pivoting and removable side guards, wall deflector rings in the four corners of the table.
Product variants
As a manufacturer, we are able to adapt our products to your individual needs. Below, you will find examples of customer-specific requests we have implemented.
H-EKA 1065/E, EKA-AA, LR-75, head-down position
H-EKA 1065/E, EKA-AA, LR-75, head-down position
H-EKA 1065/E, EKA-AA, LR-75, head-down position
H-EKA 1065/E, EKA-AA, LR-75, head-down position
H-EKA 1065/E, EKA-AA, LR-75, head-down position

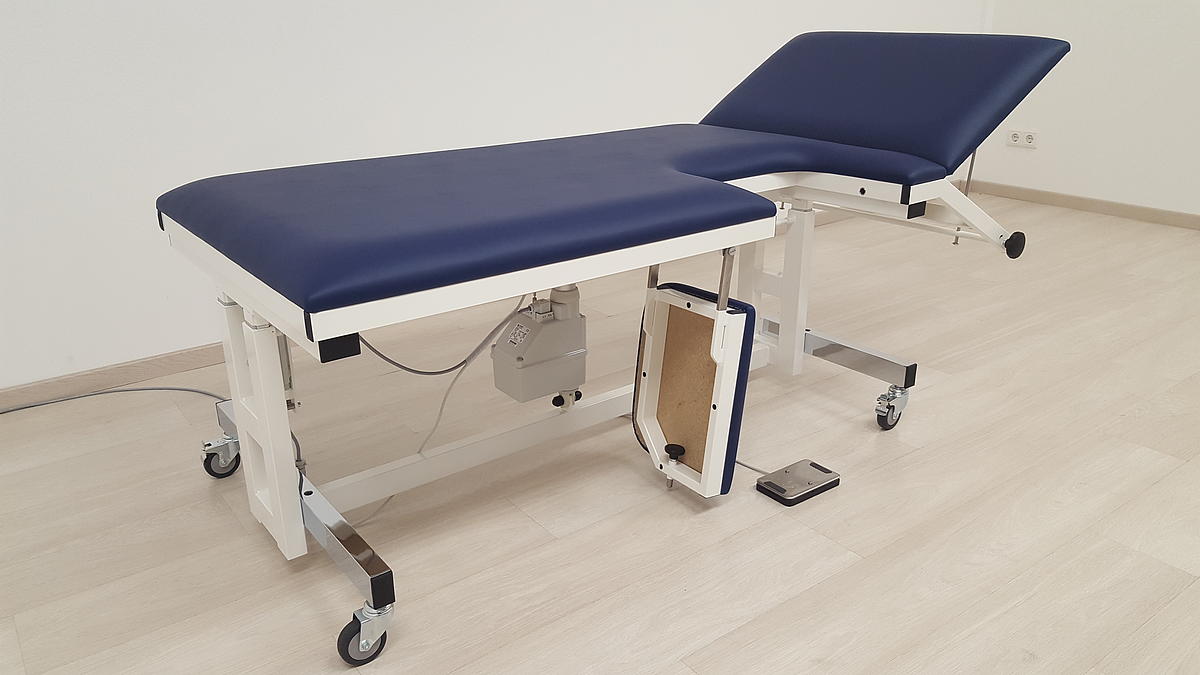

The photos show the echocardiography table with electric height adjustment, Article No.: H-EKA 1080/E, with head-down position, in the colours:
- Frame: pure white RAL 9010,
- Upholstery: blue
as well as the additional accessories and equipment components:
- Folding upholstery insert (instead of removable), Article No.: EKA-AA,
- Set of castors, Ø 75 mm, Article No.: LR-75, for table height 650 - 850 mm.
H-EKA 1080/E
H-EKA 1080/E
H-EKA 1080/E
H-EKA 1080/E
H-EKA 1080/E
H-EKA 1080/E
The photos show the echocardiography table with electric height adjustment, Article No.: H-EKA 1080/E, with an 800 mm long backrest with an integrated the cut-out, in the following colours:
- Frame: white aluminium RAL 9006,
- Upholstery: atoll
as well as the additional accessories and equipment components:
- Set of castors, Ø 125 mm, Article No.: LR-125, for table height 650 - 850 mm.
H-EKA 1065/E, LR/Z-125
H-EKA 1065/E, LR/Z-125
H-EKA 1065/E, LR/Z-125
H-EKA 1065/E, LR/Z-125

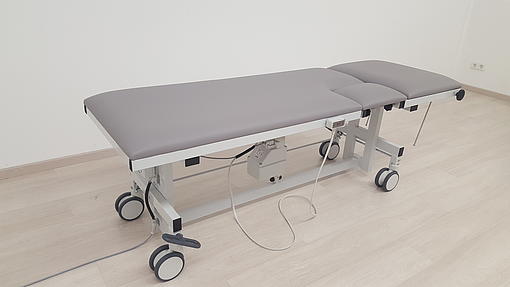

The photos show the echocardiography table with electric height adjustment, Article No.: H-EKA 1065/E, in the colours:
- Frame: pure white RAL 9010,
- Upholstery: grey
as well as the additional accessories and equipment components:
- Central locking castor system, castors Ø 125 mm, Article No.: LR/Z-125, for table height 650 - 850 mm.
