Combined multi-function examination tables with height adjustment
Combined multi-function examination tables with height adjustment by hand crank, hydraulic or electric motor and extensive range of accessories for a wide range of applications.
Height-adjustable combined multi-function examination tables
The height adjustment mechanisms of the combined multi-function examination tables are made of precision double square guides and therefore allow the heights to be adjusted without lateral offset.
The height adjustments are done:
- Manually by hand crank, Article No.: HK-2065/3H,
- By hydraulics, Article No.: HK-2065/3Y,
- By electric motor, Article No.: HK-2065/3E.
Thanks to the three independently adjustable upholstery segments and the accessories included in the scope of delivery, these combined height-adjustable multi-function examination tables from AGA Sanitätsartikel are suitable not only for general medical practices but also for gynecology, rectoscopy and proctology practices.
Article No.: HK-2065/3E
Features
- To avoid rocking and swinging movements, the height-adjustable combined multi-function examination tables are manufactured with precision double square guides. This means that the height adjustment takes place without lateral offset.
- With manual height adjustment, the optimum transmission ratio (i=10mm/revolution) of the maintenance-free gearbox ensures smooth, quick and easy operation without great effort, even with heavy patients (up to 200 kg).
- With hydraulic height adjustment, the hydraulics are operated by the centrally installed foot pump. Of course, the height adjustment can also be carried out with heavy patients (up to 200 kg) without any great effort. To be able to operate the hydraulics from both sides, an additional foot lever can be fitted. This is available at an extra charge (Article No.: FPH-10).
- With electric height adjustment, the maintenance-free and extremely quiet electric motor used is controlled by a hand switch (alternatively - at no extra charge - by a foot switch). The adjustment system is equipped with a button lock. Motor connection values (each): 230V, 50/60 Hz, 3.7A, 850W, IPX4, v=11mm/s, 10,000N.
- The stability and robustness is achieved by the gusset plates in the frame corners.
- The crossbars of the flat base construction, which are always chrome-plated and fitted with levelling feet, are more resistant to external influences (e.g. vacuum cleaner impacts etc.) than a plastic-coated version.
- The upholstered frames are chrome-plated.
- The thickness of the three upholstery segments (head, middle and foot sections) is 64 mm each.
- There are cutouts in the upholstery and upholstery frame at the foot end, where the stainless steel tray included in the scope of delivery, dimensions 300 x 200 x 65 mm (L x W x H) is located.
- Adjustment of the head, middle and foot sections is continuous. They are locked in place using clamping handles with clamping rod mechanisms.
Technical details
| Combined multi-function examination tables | |||||
|---|---|---|---|---|---|
| Article number | HK-2065/3H | HK-2065/3Y | HK-2065/3E | ||
| Frame | Chrome | ||||
| Lengths Head/middle/foot section | 1,900 mm 500 / 1,050 / 350 mm | ||||
Width | 650 mm | ||||
| Height adjustment | 650 - 850 mm (hand crank) | 650 - 850 mm (hydraulic) | 650 - 850 mm (electric motor) | ||
| Upholstery segments | 3 sections | ||||
| Upholstery thickness | 64 mm | ||||
| Head section adjustment | +40° (clamping rods) | ||||
| Back section adjustment | +30° (clamping rods) | ||||
| Foot section adjustment | +30° (clamping rods) | ||||
| Load capacity | 200 kg | ||||
In the above table, the term 'frame' only refers to the upholstered tabletop frame. The height adjustment mechanism is only available in lacquered finish and the crossbars (with levelling feet) in chrome-plated finish.
The standard version includes:
- A pair of leg holders with plastic shells.
- A pair of fastening clamps.
- Cutouts in the foot section and upholstery frame.
- A stainless steel tray with holder.
- Levelling feet on the chrome-plated crossbars.
We offer the coloured lacquer coating of the frames as standard in the following three shades (see frame colour selection card):
- light grey (RAL 7035)
- white aluminum (RAL 9006)
- pure white (RAL 9010).
The high quality finish has a glossy look. It is disinfectant resistant and easy to clean.
Other colours are of course also available. Please let us know the desired RAL colour so that we can find out the corresponding additional costs. Please note, however, that these products are then considered type variants with no right of return.
The artificial leather covers we use are characterized by their tear resistance, durability, longevity and their good cleaning properties as well as their resistance to disinfectants.
We use a (colour) selection from the synthetic leather covers VOWAled Pisa (Vowalon). The colour selection card can be found here.
In addition, we offer you the service of manufacturing the upholstery in other colours or from other synthetic leather manufacturers (type variant). After prior agreement, please send us the relevant references.
The black electrically conductive synthetic leather cover (with equipotential bonding socket on the frame) is available at an additional cost. It is already included in the price of the operating tables and multifunction tables.
Downloads
Image galleries
HK-2065/3H
The photo shows the combined multi-function examination table with manual height adjustment, Article No.: HK-2065/3H, in the colours:
- Frame: light grey RAL 7035,
- Upholstery: birch.
HK-2065/3E
HK-2065/3E
HK-2065/3E
HK-2065/3E
HK-2065/3E

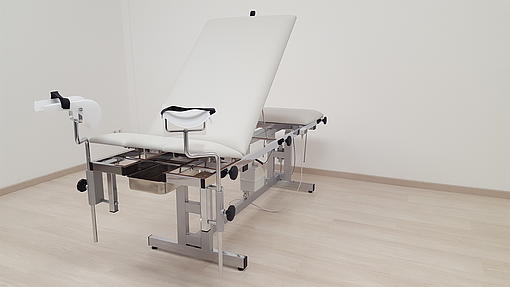

The photos show the combined multi-function examination table with electric height adjustment, Article No.: HK-2065/3E, in the colours:
- Frame: light grey RAL 7035,
- Upholstery: white.
Accessories & additional options
Article No. | Description |
|---|---|
| BHG-600 | Göpel leg rests (pair), with spherical joints, rods with two 90° bends, chrome-plated, Ø 18 mm, black PU-foam shells, includes straps sewn from synthetic leather with Velcro closure to secure the legs to the shells. A pair of fastening clamps for standard rails is required. |
| FPH-10 | Second foot pedal, with transmission shaft and connecting piece. This allows the hydraulic height adjustment to be operated from both sides. |
| GS-1710 EfGS | Face cut-out in the headrest, oval, dimensions approx. 205 x 105 mm (L x W). Retrofitting is not possible. Upholstery insert for closing the face opening, oval, dimensions approx. 200 x 100 mm (L x W), see upholstery colours. |
| INF-1720/VA | Infusion holder, CrNi steel, bottle cross with 4 hooks, infusion rod 1,700 mm long, Ø 18 mm, includes a screw-on fastening clamp, which is fixed on the left or right side of the upholstery frame (please specify when placing the order). Retrofitting is only possible to a limited extent. |
| LR-75 LR-125 | Set of castors, Ø 75 mm. Set of castors, Ø 125 mm. Four swivel castors, two castors are completely lockable. |
| LR/Z-125 | Central locking castor system, double swivel castors Ø 125 mm, all four castors offer excellent rolling properties and are connected to each other by rods, foot pedals are arranged diagonally at the head and foot end, easy to operate and with coloured markings (green = table ready for moving, red = table locked in place). Retrofitting is not possible. |
| P-2065/A | Paper roll holder, chrome-plated, with mounting hardware, consisting of two brackets, two clamps and a paper roll holder bar (length 615 mm, Ø 20 x 1 mm), for mounting on the upholstery frame. |
| RRH-65 | Rectoscopy roll, height-adjustable, dimensions 650 x 65 x 550 mm (W x D x H), holder for fastening clamps Ø 18 mm, chrome-plated rods, upholstered with synthetic leather, for knee elbow position (see upholstery colours). Retrofitting is not possible. |
The components listed above are only a small selection. The following accessories are also available: headrest adjustment by gas pressure spring, all-around edge/impact protection, positioning aids, castor systems, patient belts, standard surgical rails in various lengths, pivoting and removable side guards.
Product variants
As a manufacturer, we are able to adapt our products to your individual needs. Below, you will find examples of customer-specific requests we have implemented.
HK-2065/3H
HK-2065/3H
HK-2065/3H
HK-2065/3H
HK-2065/3H, SG-1000
HK-2065/3H, SG-1000
HK-2065/3H, 2x SG-1000
HK-2065/3H, 2x SG-1000
HK-2065/3H, 2x SG-1000
HK-2065/3H, 2x SG-1000
HK-2065/3H, 2x SG-1000
HK-2065/3H
The photos show the combined multi-function examination table with manual height adjustment, Article No.: HK-2065/3H, in the colours:
- Frame: light grey RAL 7035,
- Upholstery: baltic
as well as the additional accessories and equipment components:
- Two side guards, removable, Article No.: SG-1000.
HK-2065/3E, FS-1, LR-75
HK-2065/3E, FS-1, LR-75
HK-2065/3E, FS-1, LR-75
HK-2065/3E, FS-1, LR-75
HK-2065/3E, FS-1, LR-75
HK-2065/3E, FS-1, LR-75
HK-2065/3E, FS-1, LR-75
HK-2065/3E, FS-1, LR-75
HK-2065/3E, FS-1, BH-2511, BHG-600, LR-75
HK-2065/3E, FS-1, BH-2511, BHG-600, LR-75
The photos show the combined multi-function examination table with electric height adjustment, Article No.: HK-2065/3E, in the colours:
- Frame: light grey RAL 7035,
- Upholstery: grey
as well as the additional accessories and equipment components:
- Pair of Göpel leg rests, Article No.: BHG-600, instead of the leg rests with plastic shells (Article No.: BH-2511),
- Control of the electric height adjustment by foot switch (instead of hand switch), Article No.: FS-1,
- Set of castors, Ø 75 mm, Article No.: LR-75, for table height 650 - 850 mm.
HK-2065/3E, footswitch, LR-125, OPS-60/A, OPS-100/A, BKO-2522, RL-2060/BK
HK-2065/3E, footswitch, LR-125, OPS-60/A, OPS-100/A, BKO-2522, RL-2060/BK
HK-2065/3E, footswitch, LR-125, OPS-60/A, OPS-100/A, BKO-2522, RL-2060/BK
HK-2065/3E, footswitch, LR-125, OPS-60/A, OPS-100/A, BKO-2522, RL-2060/BK
HK-2065/3E, footswitch, LR-125, OPS-60/A, OPS-100/A, BKO-2522, RL-2060/BK
HK-2065/3E, footswitch, LR-125, OPS-60/A, OPS-100/A, BKO-2522, RL-2060/BK
HK-2065/3E, footswitch, LR-125, OPS-60/A, OPS-100/A, BKO-2522, RL-2060/BK
The photos show the multi-function examination table, Article No.: HK-2065/3E, without pelvic cut-outs in the upholstery and upholstery frame, with a table width of 800 mm and an upholstery thickness of 84 mm, in the colours:
- Frame: light grey RAL 7035,
- Upholstery: VOWAled Pisa Petrol 003340 (special colour),
as well as the additional accessories and equipment components:
- Height adjustment control via foot switch,
- Set of castors, Ø 125 mm, Article No.: LR-125, for table height 650 - 850 mm,
- Standard rail, 600 mm long, Article No.: OPS-60/A, mounted in the centre of the transverse side of the upholstered frame at the foot end,
- Pair of standard rails, 1,000 mm long, Article No.: OPS-100/A, mounted laterally on the long sides of the upholstered frame, starting from the centre of the foot section towards the head end,
- Pair of fastening clamps, Article No.: BKO-2522 (instead of BKM-2512),
- Pair of ring armrests, Article No.: RL-2060/BK.
