Combined multi-function examination tables
The combined multi-function examination tables are available with a fixed table height. The extensive range of accessories included in the scope of delivery guarantees use in many areas of medicine.

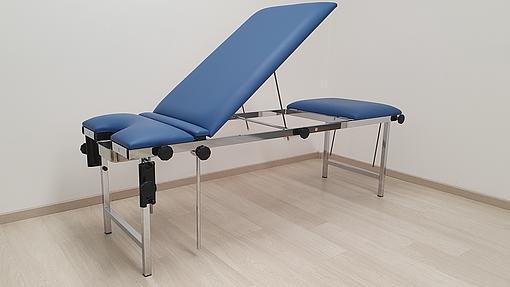

Combined multi-function examination tables with fixed height and three-section tabletop
These combined multi-function examination tables with fixed height are used for general medical and lithotomy examinations thanks to the three upholstery segments (headrest, backrest and footrest), which can be adjusted and set independently of each other, and the accessories supplied (leg holders, fastening clamps and stainless steel tray).
The combined multi-function examination tables from AGA Sanitätsartikel are available in three frame finishes:
- Lacquered, Article No.: K-1065/3,
- Chrome-plated, Article No.: K-2065/3,
- Stainless steel, Article No.: K-3065/3.
To better accomodate the various body sizes of the users, these multi-function examination tables are also available in four different heights (650 mm, 700 mm, 750 mm and 800 mm) at no extra charge. If no table height is specified when the order is placed, the multi-function examination table will be supplied at a height of 650 mm.
Features
- The stability and robustness is achieved by the gusset plates in the frame corners and the crossbars between the legs.
- The tubular steel frames are made of:
- Lacquered blank steel, Article No.: K-1065/3,
- Chrome-plated blank steel, Article No.: K-2065/3,
- Stainless steel, Article No.: K-3065/3.
- The end of the table legs are fitted with floor protectors (impact caps).
- The thickness of the three upholstery segments (head, middle and foot sections) is 64 mm each.
- At the foot end, there are cutouts in the upholstery and upholstery frame. The stainless steel tray included in the scope of delivery, dimensions 300 x 200 x 65 mm (L x W x H), is located in this area.
- If no height dimension is specified when the order is placed, the combined multi-function examination tables are supplied at a height of 650 mm (also available in heights of 700, 750 and 800 mm at no extra charge).
- Adjustment of the head, middle and foot sections is continuous. They are locked in place using clamping handles with clamping rod mechanisms.
Technical details
| Combined multi-function examination tables | |||||
|---|---|---|---|---|---|
| Article number | K-1065/3 | K-2065/3 | K-3065/3 | ||
| Frame | Lacquered | Chrome | stainless steel | ||
Length Head/back/foot section | 1,900 mm 500 / 1,050 / 350 mm | ||||
| Width | 650 mm | ||||
| Heights (without surcharge) | 650 / 700 / 750 / 800 mm | ||||
| Upholstery segments | 3 sections | ||||
| Upholstery thickness | 64 mm | ||||
| Head section adjustment | +40° (clamping rods) | ||||
| Back section adjustment | +30° (clamping rods) | ||||
| Foot section adjustment | +30° (clamping rods) | ||||
| Load capacity | 200 kg | ||||
The standard version includes:
- A pair of leg holders with plastic shells.
- A pair of fastening clamps.
- Cutouts in the foot section and upholstery frame.
- A stainless steel tray with holder.
- Table legs with floor protectors (impact caps).
We offer the coloured lacquer coating of the frames as standard in the following three shades (see frame colour selection card):
- light grey (RAL 7035)
- white aluminum (RAL 9006)
- pure white (RAL 9010).
The high quality finish has a glossy look. It is disinfectant resistant and easy to clean.
Other colours are of course also available. Please let us know the desired RAL colour so that we can find out the corresponding additional costs. Please note, however, that these products are then considered type variants with no right of return.
The artificial leather covers we use are characterized by their tear resistance, durability, longevity and their good cleaning properties as well as their resistance to disinfectants.
We use a (colour) selection from the synthetic leather covers VOWAled Pisa (Vowalon). The colour selection card can be found here.
In addition, we offer you the service of manufacturing the upholstery in other colours or from other synthetic leather manufacturers (type variant). After prior agreement, please send us the relevant references.
The black electrically conductive synthetic leather cover (with equipotential bonding socket on the frame) is available at an additional cost. It is already included in the price of the operating tables and multifunction tables.
Downloads
Image gallery
K-1065/3
K-1065/3
K-1065/3
K-1065/3
K-1065/3
K-1065/3
K-1065/3
K-1065/3
The photos show the combined multi-function examination table, Article No.: K-1065/3, in the colours:
- Frame: pure white RAL 910,
- Upholstery: ice.
Accessories & additional options
Article No. | Description |
|---|---|
| BHG-600 | Göpel leg rests (pair), with spherical joints, rods with two 90° bends, chrome-plated, Ø 18 mm, black PU-foam shells, includes straps sewn from synthetic leather with Velcro closure to secure the legs to the shells. A pair of fastening clamps for standard rails is required. |
| GS-1710 EfGS | Face cut-out in the headrest, oval, dimensions approx. 205 x 105 mm (L x W). Retrofitting is not possible. Upholstery insert for closing the face opening, oval, dimensions approx. 200 x 100 mm (L x W), see upholstery colours. |
| INF-1720/VA | Infusion holder, CrNi steel, bottle cross with 4 hooks, infusion pole 1,700 mm long, Ø 18 mm, includes a screw-on fastening clamps, which is fixed on the left or right side of the upholstery frame (please specify when ordering). Retrofitting is only possible to a limited extent. |
| LR-75 LR-125 | Set of castors, Ø 75 mm. Set of castors, Ø 125 mm. Four swivel castors, two castors are completely lockable. |
| LR/Z-125 | Central locking castor system, double swivel castors Ø 125 mm, all four castors offer excellent rolling properties and are connected to each other by rods, foot pedals are arranged diagonally at the head and foot end, easy to operate and with coloured markings (green = table ready for moving, red = table locked in place). Retrofitting is not possible. |
| NF-30 | Levelling feet, set (4 pieces) impact caps with levelling feet, for square steel tube 30 x 30 mm. |
| P-2065 | Paper roll holder, chrome-plated, consisting of two brackets, two clamps and a paper roll holder bar (length 615 mm, Ø 20 x 1 mm), for mounting on the table legs. |
| RRH-65 | Rectoscopy roll, height-adjustable, dimensions 650 x 65 x 550 mm (W x D x H), holder for fastening clamps Ø 18 mm, chrome-plated rods, upholstered with synthetic leather, for knee elbow position (see upholstery colours). Retrofitting is not possible. |
The components listed above are only a small selection. The following accessories are also available: headrest adjustment by gas pressure spring, all-around edge/impact protection, positioning aids, castor systems, patient belts, standard surgical rails in various lengths, pivoting and removable side guards.
Product variants
As a manufacturer, we are able to adapt our products to your individual needs. Below, you will find examples of customer-specific requests we have implemented.
K-2065/3IR
K-2065/3IR
K-2065/3IR
K-2065/3IR
K-2065/3IR
K-2065/3IR
K-2065/3IR
K-2065/3IR
K-2065/3IR
The photos show the multi-function examination table with integrated rectoscopy roll, Article No.: K-2065/3IR, in the colours:
- Frame: chrome,
- Upholstery: baltic.
