AGA-THERA Therapy tables
The AGA-THERA therapy tables feature a seven-section table surface and multiple adjustment options.
Therapy tables with multiple, continuous adjustment options
The AGA-THERA therapy tables were designed for the practices of chiropractors, orthopedists and therapists. Thanks to the many infinitely variable adjustment options for the height, the armrests, the legrests, the back section, the head section with facial cutout and the seat section, various lounger positions such as Trendelenburg/Anti-Trendelenburg and the drainage position can be adjusted.
In order to make the regularly recurring and everyday measures and treatments easier for patients and users, the therapy tables from AGA Sanitätsartikel are all equipped with a height adjustment mechanism as follows:
- Manual (hand crank), Article No.: TH-1065/H,
- Hydraulics, Article No.: TH-1065/Y,
- Electric motor, Article No.: TH-1065/E.
Features
- In order to avoid rocking and swinging movements of the lying surfaces, the therapy tables are manufactured with precision double square profiles.
- The manual height adjustment is done with a hand crank using maintenance-free gear with an optimal transmission ratio (i = 10mm/rev) for smooth, quick and easy operation, without much effort, even with heavier patients (up to 150 kg). After use, the crank handle can be pushed back under the tabletop.
- The hydraulic height adjustment is operated via the centrally built-in foot pump. The height adjustment of the therapy table can of course also be done with heavier patients (up to 150 kg) without any major effort. In order to be able to operate the hydraulics from both sides, it is possible to install an additional foot lever. This is available for an additional charge (Article No.: FPH-10).
- The electric motor height adjustment is controlled via a hand switch (alternatively - at no extra charge - via a foot switch) and can of course also be carried out with heavy patients (up to 150 kg). The electric drive used is maintenance-free and extremely quiet. The adjustment system is equipped with a key lock. Motor connection values: 230V, 50/60 Hz., 3.7A, 850W, IPX4, v=11mm/s, 10,000N.
- The wide extension of the substructure, which is equipped with a mobile base on retractable castors ensures a high level of stability, even under stress load.
- With the retractable castors system, the universal therapy table is lifted onto castors (Ø 75 mm) using foot control or lowered onto feet for standing.
- The thickness of the seven upholstery segments (armrests, head, back, seat and leg sections) is 64 mm each.
Technical data
| Therapy tables AGA-THERA | |||
|---|---|---|---|
| Article number | TH-1065/H | TH-1065/Y | TH-1065/E |
| Frame | Lacquered | ||
| Length Head/back/seat/foot sections | 1,920 mm | ||
| Width | 620 mm | ||
Height adjustment | 650 - 850 mm (hand crank) | 650 - 850 mm (hydraulics) | 650 - 850 mm (electric motor) |
| Upholstery segments | 7 sections | ||
| Upholstrey thickness | 64 mm | ||
| Head section adjustment | +20° (grid) | ||
| Armrests | -140 mm (clamping) | ||
| Seat/backrest adjustments | +/-20° (gas pressure spring) | ||
| Leg section adjustments | +/-30° (clamping rods) | ||
| Trendelenburg adjustment | 20° (gas pressure spring) | ||
| Anti-Trendelenburg adjustment | 20° (gas pressure spring) | ||
| Load capacity | 150 kg | ||
The standard configuration includes:
- Mobile base on retractable castors, swivel castors Ø 75 mm.
- Floor protectors (clip-on caps) on the four adjustable feet.
We offer the coloured lacquer coating of the frames as standard in the following three shades (see frame colour selection card):
- light grey (RAL 7035)
- white aluminum (RAL 9006)
- pure white (RAL 9010).
The high quality finish has a glossy look. It is disinfectant resistant and easy to clean.
Other colours are of course also available. Please let us know the desired RAL colour so that we can find out the corresponding additional costs. Please note, however, that these products are then considered type variants with no right of return.
The artificial leather covers we use are characterized by their tear resistance, durability, longevity and their good cleaning properties as well as their resistance to disinfectants.
We use a (colour) selection from the synthetic leather covers VOWAled Pisa (Vowalon). The colour selection card can be found here.
In addition, we offer you the service of manufacturing the upholstery in other colours or from other synthetic leather manufacturers (type variant). After prior agreement, please send us the relevant references.
The black electrically conductive synthetic leather cover (with equipotential bonding socket on the frame) is available at an additional cost. It is already included in the price of the operating tables and multifunction tables.
Downloads
pdf | 1,003 KB
Image galleries
TH-1065/E
TH-1065/E
TH-1065/E
TH-1065/E
TH-1065/E
TH-1065/E
TH-1065/E
TH-1065/E

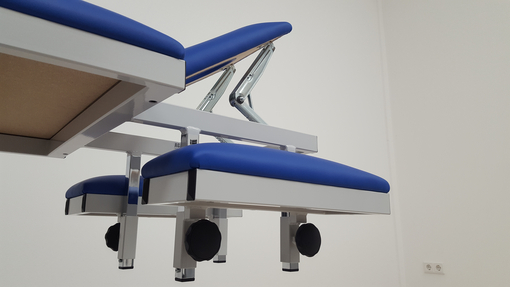

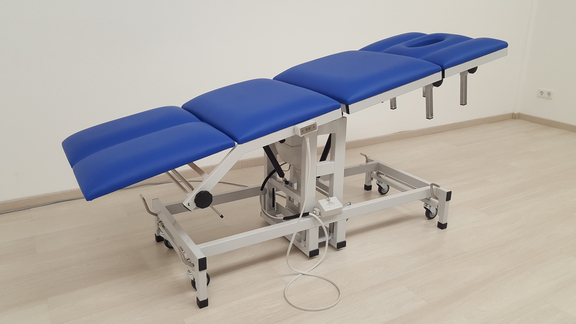

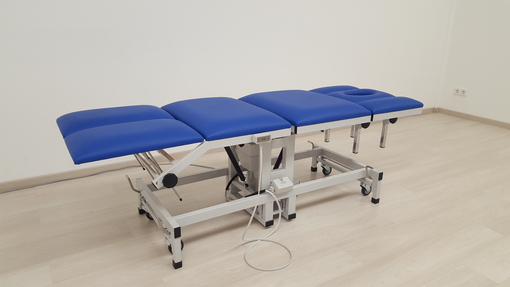

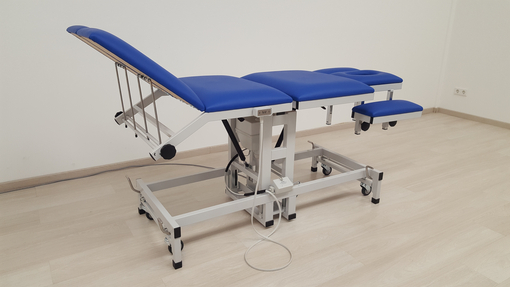

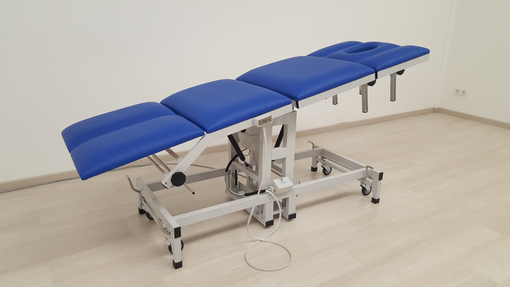

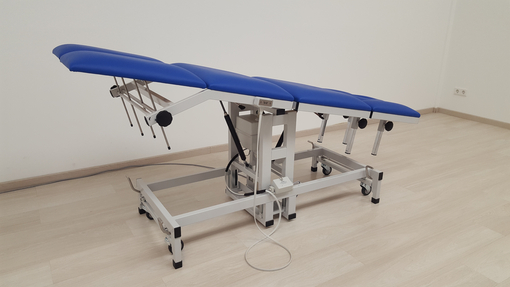

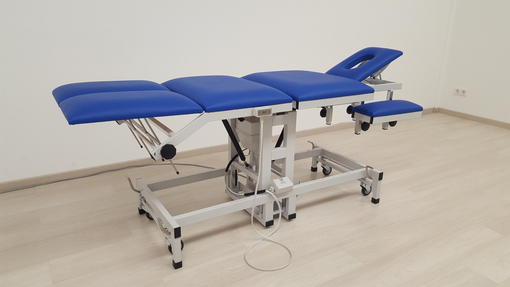

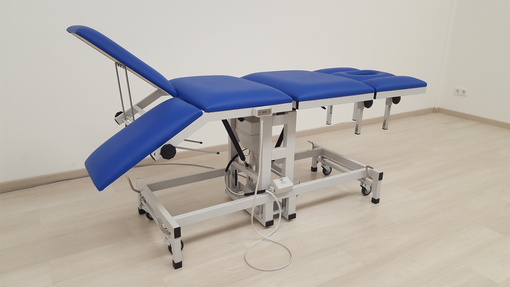

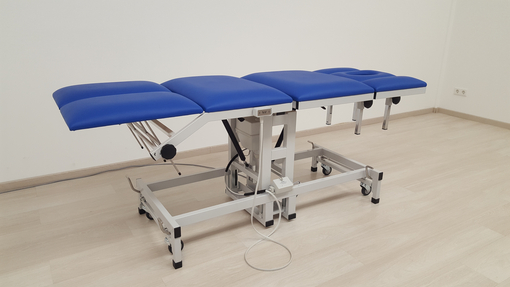

The photos show the electric height-adjustable universal therapy table, Article No.: TH-1065/E, in the colours:
- Frame: light grey RAL 7035,
- Upholstery: atoll.
TH-1065/Y
The photo shows the hydraulic height-adjustable universal therapy table, Article No.: TH-1065/Y, in the colours:
- Frame: light grey RAL 7035,
- Upholstery: mandarin.
Accessories & additional options
Article No. | Description |
|---|---|
FPH-10 | Foot pedal, with transmission shaft and connecting piece. This allows the hydraulic height adjustment to be operated from both sides. |
HRM-14 | Semi-circular roll, foam filling, dimensions Ø 200 x 400 mm, sewn from synthetic leather, with zipper, see upholstery colours. |
| KKM-16 | Head wedge, foam filling, dimensions 450 x 400 x 80 / 10 mm (L x W x H), sewn from synthetic leather, with zipper, see upholstery colours. |
RLM-20 | Knee roll, dimensions Ø 180 x 560 mm. Neck roll, dimensions Ø 140 x 400 mm. Round roll, foam filling, sewn from synthetic leather, with zipper, see upholstery colours. |
Product variants
As a manufacturer, we are able to adapt our products to your individual needs. Below, you will find examples of customer-specific requests we have implemented.
The therapy tables can be equipped with a 5- or 6-section tabletop or a different coloured synthetic leather cover at additional cost. We will be pleased to provide further information upon request.
