AGA-PHLEBO-LIFT and AGA-PHLEBO-MAT Phlebology tables with a 3-piece tabletop

Phlebology tables that can be converted into an examination chair in just a few seconds.

Phlebology tables with a 3-piece tabletop, also for use as an examination chair

The 3-piece phlebology tables AGA-PHLEBO-LIFT and AGA-PHLEBO-MAT from AGA Sanitätsartikel can be used not only in phlebology and dermatology. They can be converted into a gynaecology, rectoscopy or proctology examination chair in just a few seconds. The 3-piece vein treatment tables are also equipped with an electric motor for tilt adjustment as standard.

On the AGA-PHLEBO-LIFT, Article No.: VEKO-1060/3EE, there is a second electric motor for height adjustment in addition to the electric motor for tilt adjustment.

Phlebologieliege AGA-PHLEBO-LIFT VEKO-1060/3EE
3-piece phlebology table AGA-PHLEBO-LIFT, Article No.: VEKO-1060/3EE

Features

  • If necessary, for example when a patient collapses, the phlebology tables can be adjusted from the almost vertical position (74°) to the horizontal position (0°) to the shock position (20° negative).
  • The stability and robustness is achieved by the gusset plates in the frame corners.
  • The base, which is equipped with levelling feet, guarantees a high level of stability, even in the almost vertical upholstery position, in conjunction with the pull-out support rod, even under stress.
  • The shockproof and scratch-resistant covers on the column and base, like all other components, are easy to clean.
  • The three upholstery segments (back, seat and foot sections) each have a thickness of 64 mm.
  • The AGA-PHLEBO-MAT, Article No.: VEKO-1062/3E, has a fixed working height (930 mm) in the horizontal upholstered position. The height adjustment cannot be retrofitted.
  • The AGA-PHLEBO-LIFT, Article No.: VEKO-1060/3EE, is also equipped with an electromotive height adjustment (730 - 930 mm, measured in the horizontal upholstered position).
  • The height and tilt adjustments are done with maintenance-free and splash-proof and extremely quiet electric drives, controlled via foot switches (alternatively, at no extra charge, via a hand switch). The adjustment systems are equipped with key locks. Connection values per motor: 230V, 50/60 Hz., 3.7A, 850W, IPX4, v=11mm/s, 10,000N.
  • The headrest can be adjusted continuously up to +30°, using a gas pressure spring.
  • Cutouts are incorporated into the seat and foot sections.

Technical data

 AGA-PHLEBO-LIFTAGA-PHLEBO-MAT

Article number

VEKO-1060/3EEVEKO-1062/3E

Frame

Lacquered

Length
Back/seat/foot sections

1,900 mm
1,020 / 365 / 465 mm

Width

620 mm
(680 mm with standard rails)

Height adjustment

730 - 930 mm (electric motor)-
Height-930 mm

Tilt adjustment

-20º / +74º (electric motor)

Upholstery segments

3 sections

Upholstery thickness

64 mm

Back section adjustment

+30º (gas pressure spring)

Load capacity

150 kg
Leg section adjustmentFolding down using locking pins
The standard configuration includes:
  • A pair of side-mounted standard surgical rails, dimensions 25 x 10 mm, made of CrNi steel, length 900 mm.
  • A pair of black ring armrests, including fastening clamps for standard surgical rails.
  • A removable footboard, dimensions 490 x 320 mm, thickness 15 mm, black, with anti-slip surface.
  • The foot switch(es).
  • A safety support rod that can be pulled out from the floor frame.
  • A cutout at the foot of the leg section for easier getting on and off.
  • A floor frame with levelling feet.
  • A neck roll with two straps, fixed to the back cushion.
  • A cutout in the seat cushion for gynaecological examinations.
  • A safety limit switch to avoid damage caused by the folded leg section.

We offer the coloured lacquer coating of the frames as standard in the following three shades (see frame colour selection card):

  • light grey (RAL 7035)
  • white aluminum (RAL 9006)
  • pure white (RAL 9010).

The high quality finish has a glossy look. It is disinfectant resistant and easy to clean.

Other colours are of course also available. Please let us know the desired RAL colour so that we can find out the corresponding additional costs. Please note, however, that these products are then considered type variants with no right of return.

The artificial leather covers we use are characterized by their tear resistance, durability, longevity and their good cleaning properties as well as their resistance to disinfectants.

We use a (colour) selection from the synthetic leather covers VOWAled Pisa (Vowalon). The colour selection card can be found here.

In addition, we offer you the service of manufacturing the upholstery in other colours or from other synthetic leather manufacturers (type variant). After prior agreement, please send us the relevant references.

The black electrically conductive synthetic leather cover (with equipotential bonding socket on the frame) is available at an additional cost. It is already included in the price of the operating tables and multifunction tables.

Image galleries

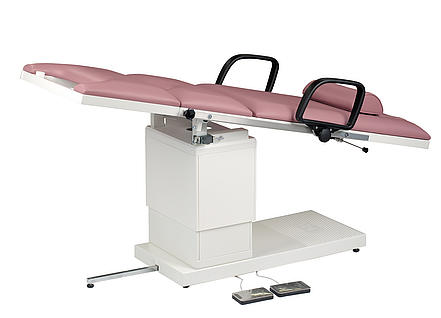

The photos show the phlebology table AGA-PHLEBO-LIFT with a 3-piece upholstered tabletop, Article No.: VEKO-1060/3EE, in the colours:

  • Frame: light grey RAL 7035,
  • Upholstery: dark pink.

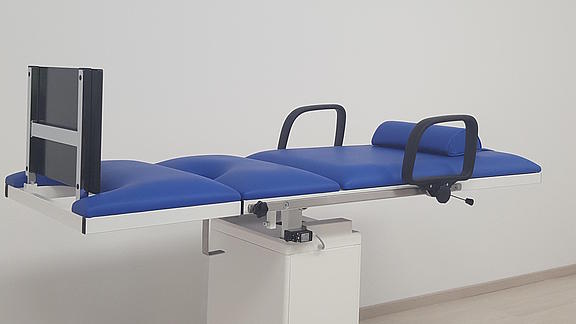

The photos show the phlebology table AGA-PHLEBO-MAT with a 3-piece upholstered tabletop, Article No.: VEKO-1062/3E, in the colours:

  • Frame: pure white RAL 9010,
  • Upholstery: atoll

as well as the additional accessories and equipment components:

  • Central locking castor system, Article No.: LR/Z-50.

The photos show the phlebology table AGA-PHLEBO-LIFT with a 3-piece upholstered tabletop, Article No.: VEKO-1060/3EE, in the colours:

  • Frame: light grey RAL 7035,
  • Upholstery: black

which was expanded into a gynaecology, rectoscopy or proctology examination chair  within a few seconds with just a few simple steps (adjusting the back cushion and folding down the foot section),

as well as the additional accessories and equipment components:

  • A stainless steel bowl with holder, Article No.: VA-40/V,
  • A pair of Göpel fastening clamps, Article No.: BKG-600,
  • A pair of Göpel leg rests, Article No.: BHG-600.

Accessories & additional options

Article No.

Description
A-2047Arm support, swivel-mounted, black PU-foam arm shell, dimensions approx. 400 x 120 mm (L x W), with 2 Velcro fasteners to secure the arm to the shell, chrome-plated holder with attachment for standard rail.
FR-60

Heel rest, recommended for use when bandaging. The patient can place their heels on the roll, which is attached to the black footboard with Velcro fasteners giving the medical personnel both hands free to bandage the patient's legs.  Retrofitting is not possible.

LR/Z-50

Mobile base with central locking castor system, welded into the base frame (dimensions approx. 1,000 x 450 mm), consisting of 2 swivel and 2 fixed castors, Ø 50 mm, foot pedal with black cap located towards the head end. Retrofitting is not possible.

P-2065/A

Paper roll holder, with mounting hardware, chrome-plated, consisting of two mounting kits (square steel tube 30 x 30 x 2 mm, length approx. 150 mm), two brackets, two clamps and a paper roll holder bar (length 615 mm, Ø 20 x 1 mm), for mounting on the upholstery frame.
PEF-1043Upholstered insert, to close the cutout at the foot end of the upholstered tabletop, see upholstery colours.
PG-220Patient belt, dimensions 2,200 x 250 mm (L x W), sewn from synthetic leather, with Velcro closure (hook and loops straps), see upholstery colours.

VA-40/V

Stainless steel bowl, with holder and safety limit switch, dimensions approx. 300 x 200 x 65 mm, located directly under the seat section. Retrofitting is not possible.

The accessory components mentioned above are just a small excerpt. The following accessories are also available: positioning aids, anesthesia pole, shoulder/side supports, side guards, side supports.

More accessories

Product variants

As a manufacturer, we are able to adapt our products to your individual needs. Below, you will find examples of customer-specific requests we have implemented.

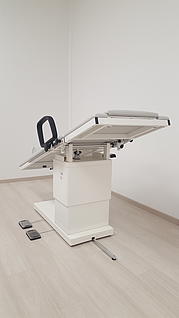

The photos show the phlebology table AGA-PHLEBO-LIFT with a 3-piece upholstered tabletop, Article No.: VEKO-1060/3EE, without cutout in the seat section, in the colours:

  • Frame: light grey RAL 7035,
  • Upholstery: light grey

as well as the additional accessories and equipment components:

  • Upholstered insert for closing the cutout in the foot section, Article No.:  PEF-1043.

Questions? Contact us today!

Do you have questions about our products or services? Would like to get to know us? Contact us today, we will be pleased to provide expert advice tailored to your needs.

CONTACT AGA

Product videos

Illustration of the electric height adjustment of the AGA-PHLEBO-LIFT phlebology table, Article No.: VEKO-1060/EE, equipped with the protractor, Article No.: WM-30, the central locking castor system, Article No.: LR/Z-50, and the heel rest, Article No.: FR-60, as well as the Trendelenburg adjustment, degree display and the mobility.

Standard rails OPS-170/AExternal Video (youtube)

Illustration of the standard surgical rails, Article No.: OPS-170/A.
