AGA-DUO-LIFT H-U 1065/EE 850 examination table with electric height and tilt adjustment

AGA-DUO-LIFT Examination tables with electric height and tilt adjustments

Electric height-adjustable examination tables, additionally equipped with electric tilt adjustment

Electric height-adjustable examination tables with Trendelenburg / Antitrendelenburg adjustments

The AGA-DUO-LIFT examination tables offer another variant of the electric adjustable examination tables from AGA Sanitätsartikel. These are equipped with electrice height adjustment and tilt adjustment as standard.

They are controlled by a hand switch with 6 buttons, which is multitasking capable (allows simultaneous operation of the height and tilt adjustment). With regard to the power supply, a floor socket in the area of the examination table is also desirable for these examination tables.

The AGA-DUO-LIFT examination tables are available in three frame finishes (lacquered, chrome-plated and stainless steel) as well as two widths (650 mm and 800 mm).

AGA Untersuchungsliege AGA-DUO-LIFT H-U 1065/EE 850
Examination table with electric height and tilt adjustments AGA-DUO-LIFT, Article No.: H-U 1065/EE 850

Features

The 2 sections examination tables are the base models of all our table series in terms of upholstery, structure, dimensions and drilling pattern.

  • The two lifting columns (low-voltage electric drives), which are characterized by their smooth running, are made of anodized light metal. They are controlled by a transformer and operated by a hand switch. Motor connection values: 230V, 50/60Hz, 6,0A, 240W, IPX6, v=16mm/s, 2 x 1,000N.
  • The hand switch with six buttons allows simultaneous height and tilt adjustment (multitasking).
  • When both motorized adjustment paths are fully utilized, a Trendelenburg and Antitrendelenburg position of 11° each can be achieved.
  • The examination tables with electromotive height and tilt adjustments are available in two widths:
    • Width 650 mm, Article No.: H-U 1065/EE 850, H-U 2065/EE 850 and H-U 3065/EE 850,
    • Width 800 mm, Article No.: H-EKG 1080/EE 850, H-EKG 2080/EE 850 and H-EKG 3080/EE 850.
  • Stability and robustness are achieved by the gusset plates in the frame corners.
  • High stability is ensured by the wide extension of the base frame, which is equipped with levelling feet.
  • The profiles of the upholstered frame are made of:
    • Lacquered blank steel, Article No.: H-U 1065/EE 850 and H-EKG 1080/EE 850,
    • Chrome-plated blank steel, Article No.: H-U 2065/EE 850 and H-EKG 2080/EE 850,
    • Stainless steel, Article No.: H-U 3065/EE 850 and H-EKG 3080/EE 850.
  • The two upholstery segments (headrest and main surface) each have a thickness of 64 mm.
  • The headrest can be adjusted continuously up to +40° and locked in place by a handle with a clamping rod mechanism.

Technical details

 Table width 650 m
Article numberH-U 1065/EE 850H-U 2065/EE 850H-U 3065/EE 850
FrameLacqueredChromeStainless steel
Length
Headrest/main section		1,900 mm
500 / 1,400 mm
Width650 mm
Height adjustment600 - 850 mm (electric motors)
Trendelenburg/Anti-trendelenburg position11° each (electric motors)
Upholstery segments2 sections
Upholstery thickness64 mm
Headrest adjustment+40° (clamping rods)
Load capacity150 kg
 Table width 800 mm
Article numberH-EKG 1080/EE 850H-EKG 2080/EE 850H-EKG 3080/EE 850
FrameLacqueredChromeStainless steel
Length
Headrest/main section		1,900 mm
500 / 1,400 mm
Width800 mm
Height adjustment600 - 850 mm (electric motors)
Trendelenburg/Anti-trendelenburg position11° each (electric motors)
Upholstery segments2 sections
Upholstery thickness64 mm
Headrest adjustment+40° (clamping rods)
Load capacity150 kg

Frame in the tables is only defined as the nature of the upholstered frame. The bottom frame is only available in lacquered finish.

The standard version includes:
  • Floor frame with levelling feet.

We offer the coloured lacquer coating of the frames as standard in the following three shades (see frame colour selection card):

  • light grey (RAL 7035)
  • white aluminum (RAL 9006)
  • pure white (RAL 9010).

The high quality finish has a glossy look. It is disinfectant resistant and easy to clean.

Other colours are of course also available. Please let us know the desired RAL colour so that we can find out the corresponding additional costs. Please note, however, that these products are then considered type variants with no right of return.

The artificial leather covers we use are characterized by their tear resistance, durability, longevity and their good cleaning properties as well as their resistance to disinfectants.

We use a (colour) selection from the synthetic leather covers VOWAled Pisa (Vowalon). The colour selection card can be found here.

In addition, we offer you the service of manufacturing the upholstery in other colours or from other synthetic leather manufacturers (type variant). After prior agreement, please send us the relevant references.

The black electrically conductive synthetic leather cover (with equipotential bonding socket on the frame) is available at an additional cost. It is already included in the price of the operating tables and multifunction tables.

Image gallery

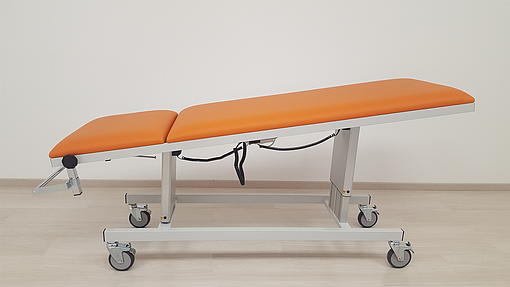

The photos show the examination table with electricheight and tilt adjustments, Article No.: H-U 1065/EE 850, in the colours:

  • Frame: light grey RAL 7035,
  • Upholstery: tangerine

as well as the additional accessories and equipment components:

  • Set of castors, Ø 125 mm, Article No.: LR-125, for table height 750 - 1,000 mm (additional costs for all four castors with brakes),
  • Paper roll holder, Article No.: P-2065/A.

Accessories & additional options

Article No.

Description
GS-1710
EfGS		Face cutout in the headboard upholstery, oval, dimensions approx. 205 x 105 mm (L x W). Retrofitting is not possible.
Upholstered insert for closing the face opening, oval, dimensions approx. 200 x 100 mm (L x W). See upholstery colours.
KVGHeadrest adjustment via gas pressure spring (instead of clamping rod mechanism), can be operated with just one hand, release button located directly on the headboard cushion. Retrofitting is not possible.
LR-75
LR-125		Set of castors, Ø 75 mm.
Set of castors, Ø 125 mm.
Four swivel castors, two of which are completely lockable.
LR/Z-125Central locking castor system, double swivel castors Ø 125 mm.
Mobility in the form of a central locking system, all four castors offer excellent rolling properties and are connected to each other by rods, foot pedals are arranged diagonally at the head and foot end, easy to operate and with coloured markings (green = table ready for moving, red = table locked in place). Retrofitting is not possible.
OPS-40/A
OPS-60/A
OPS-100/A
OPS-140/A
OPS-170/A		Standard rails (pair), approx. length 400 mm.
Standard rails (pair), approx. length 600 mm.
Standard rails (pair), approx. length 1,000 mm.
Standard rails (pair), approx. length 1,400 mm.
Standard rails (pair), approx. length 1,700 mm.
Made of CrNi steel, dimensions approx. 25 x 10 mm, for mounting on the upholstery frame, approx. 13.5 mm away from the upholstery/upper frame with 2 (or 3) spacers each. Retrofitting is not possible.

P-2065/A
P-2080/A

Paper roll holder, for table width 650 mm.
Paper roll holder, for table width 800 mm.
Chrome-plated, consisting of two brackets, two clamps and a paper roll holder rod (length 615 / 795 mm, Ø 20 x 1 mm), for mounting on the upholstery frame.

The components mentioned above are just a small excerpt.  The following accessories are also available: infusion stand, all-around edge/impact protection, positioning aids, mobile device on castors, patient belts, removable or pivoting side guards, shock position/trendelenburg adjustment, wall deflector rings in the four corners of the table.

More accessories

Product variants

As a manufacturer, we are able to adapt our products to your individual needs. Below, you will find examples of customer-specific requests we have implemented.

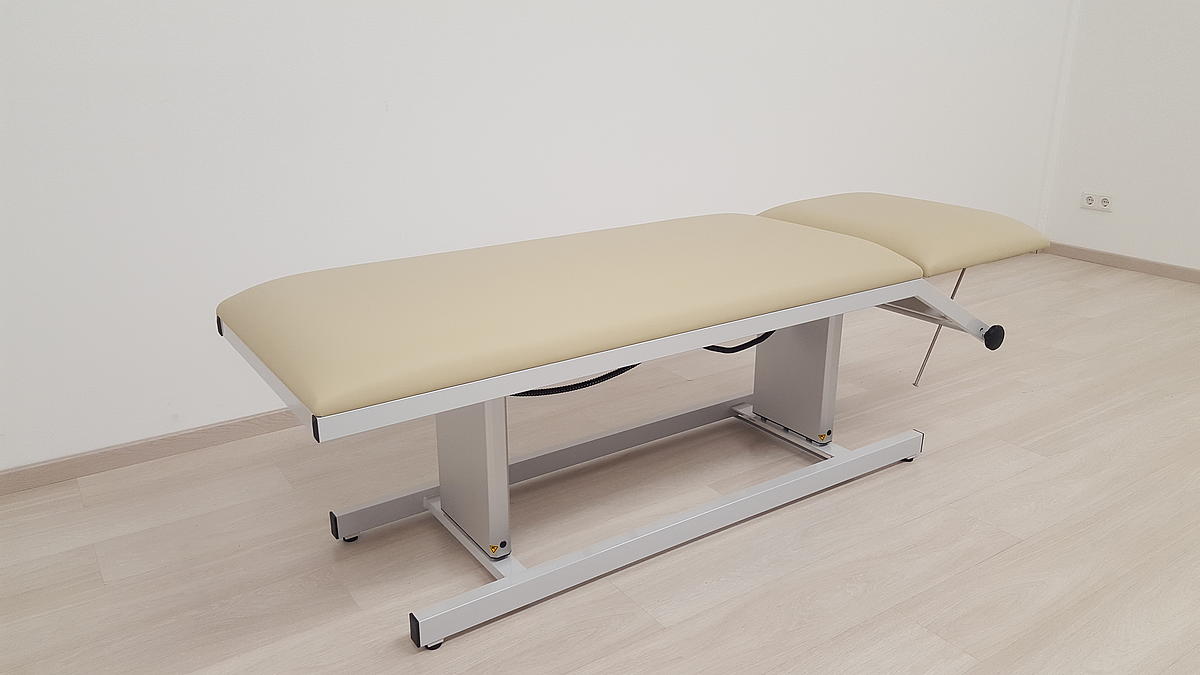

The photos show the examination table with electric height and tilt adjustments, Article No.: H-U 1065/EE 850, in the colours:

  • Frame: light grey RAL 7035,
  • Upholstery: birch

as well as the additional accessories and equipment components:

  • Head down position (+/- 30°),
  • Upholstery thickness 85 mm.

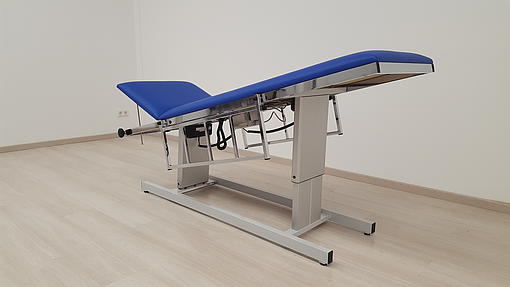

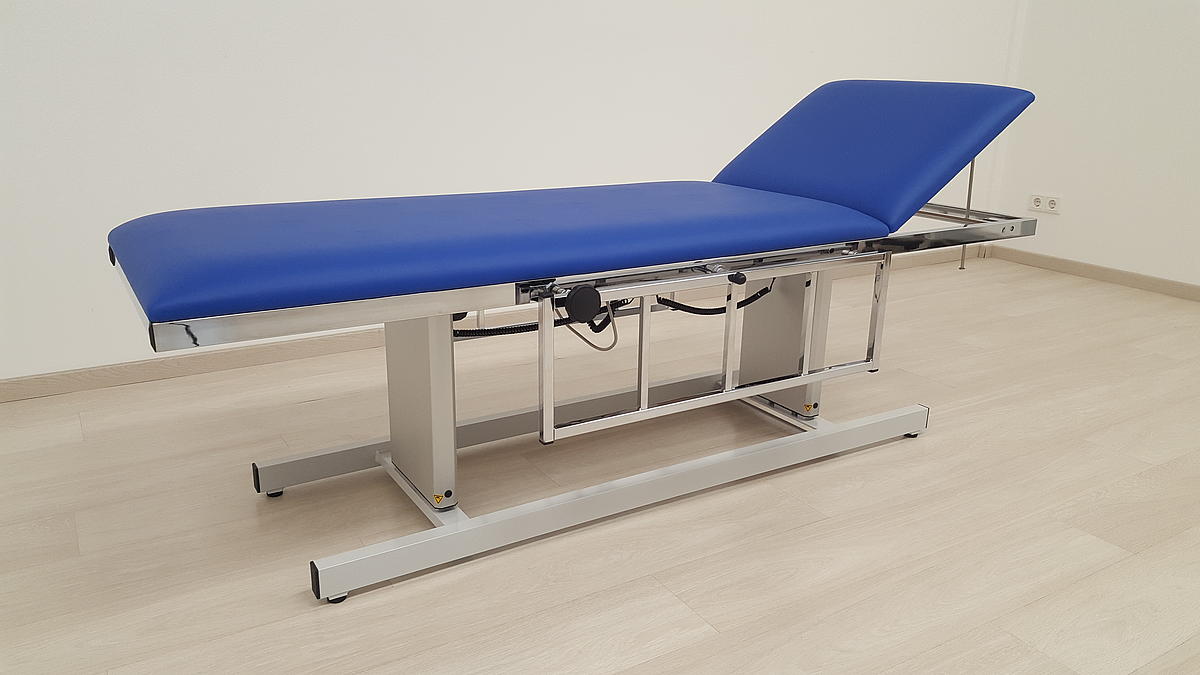

The photos show the examination table with electromotive height and tilt adjustments, Article No.: H-U 2065/EE 850, in the colours:

  • Upholstery frame: chrome,
  • Frame: light grey RAL 7035,
  • Upholstery: atoll

as well as the additional accessories and equipment components:

  • Side guard, pivoting, Article No.: SG-2000/1 (on the first three photos in the foreground),
  • Side guard, removable, Article No.: SG-2000 (on the last seven photos in the foreground).

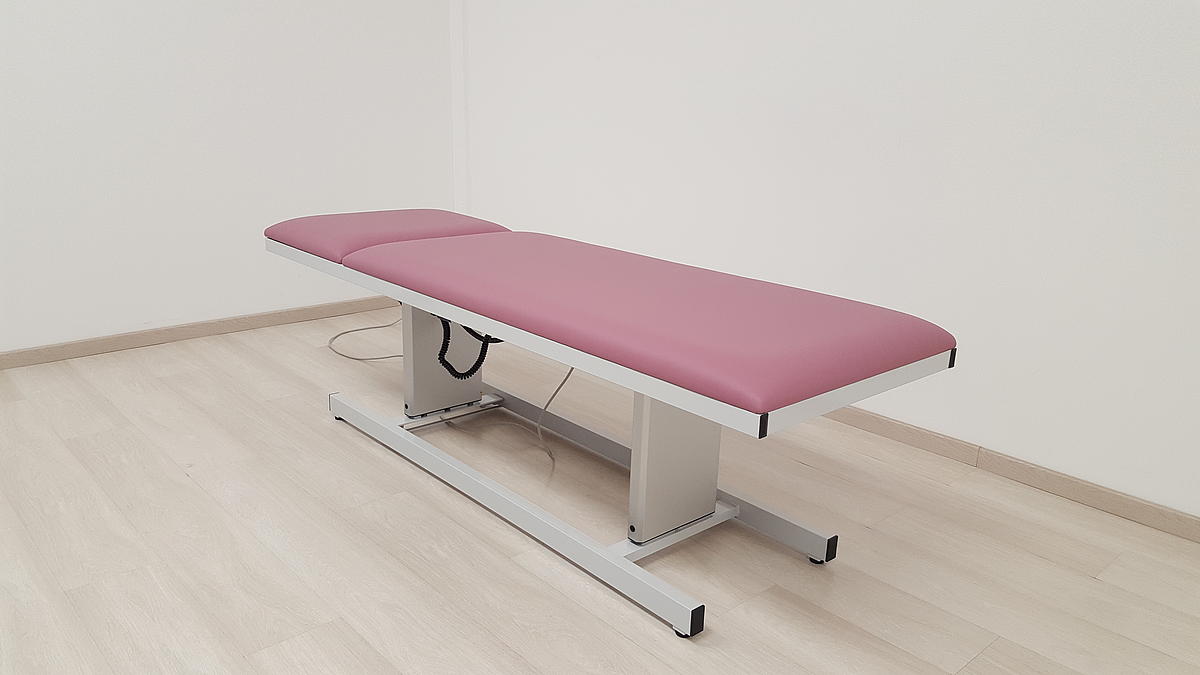

The photos show the examination table with electric height and tilt adjustments, Article No.: H-U 1065/EE 850, in the colours:

  • Frame: light grey RAL 7035,
  • Upholstery: dark pink

as well as the additional accessories and equipment components:

  • Headrest adjustment by gas pressure spring, Article No.: KVG.

The photos show the examination table with electric height and tilt adjustments, Article No.: H-EKG 1080/EE 850, in the colours:

  • Frame: pure white RAL 9010,
  • Upholstery: blue

as well as the additional accessories and equipment components:

  • Set of castors, Ø 125 mm, Article No.: LR-125, for table height 600 - 850 mm.
