Accessories for examination tables

Foot pedal
With transmission shaft and connecting piece. This allows the hydraulic height adjustment to be operated from both sides.

Face cutout in the headboard upholstery.
Oval, dimensions approx. 205 x 105 mm (L x W). Retrofitting is not possible.
Upholstered insert for closing the face opening.
Oval, dimensions approx. 200 x 100 mm (L x W). See upholstery colours.

Semi-circular roll
Foam filling, dimensions Ø 200 x 400 mm, sewn from synthetic leather, with zipper, see upholstery colours.

Semi-circular roll with elastic strap.
Semi-circular roll with Velcro fastener (hook and loop straps).
Foam filling, dimensions Ø 200 x 400 mm, sewn from synthetic leather, with zipper, see upholstery colours.

Infusion holder
Made of CrNi steel, bottle crosswith 4 hooks, infusion rod 1,700 mm long, round tube Ø 18 mm, includes a screw-on fastening clamp, which is fixed on the left or right side of the upholstery frame (please specify when placing the order). Retrofitting is only possible to a limited extent.

Head wedge
Foam filling, dimensions 450 x 400 x 80 / 10 mm (L x W x H), sewn from synthetic leather, with zipper, see upholstery colours.

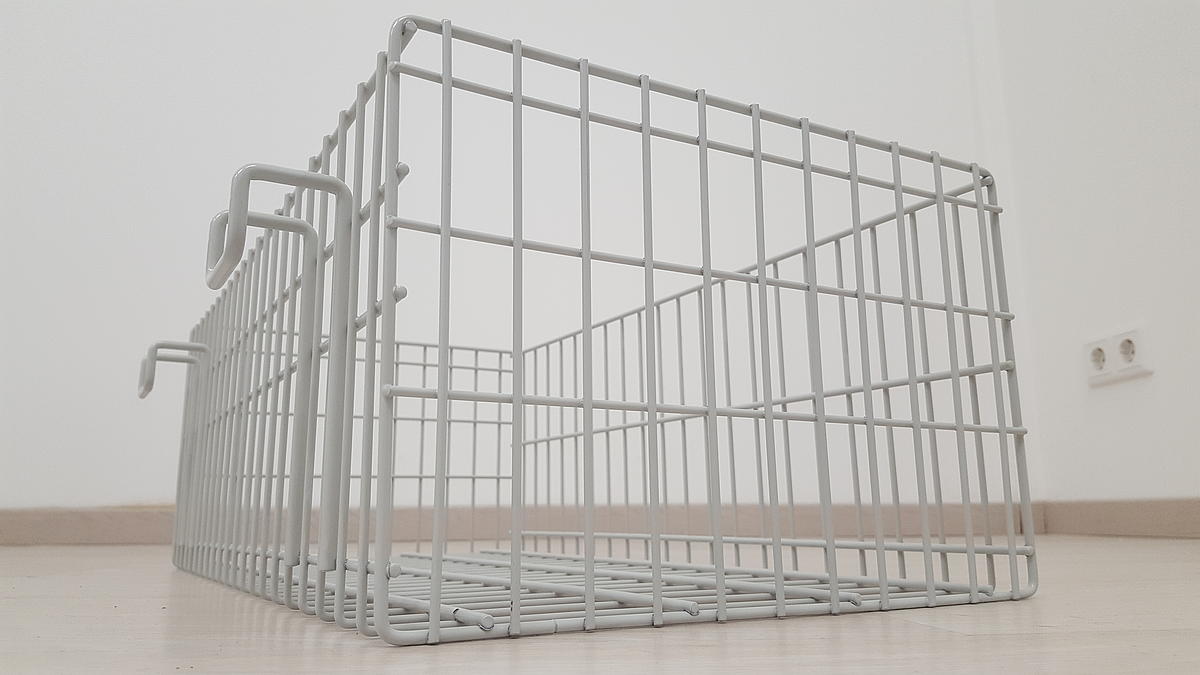

Storage basket
Plastic-coated (light grey RAL 7035), for hanging on the legs of the patient transport tables wiht fixed height, dimensions 550 x 290 x 190 mm (W x D x H). Retrofitting is not possible.

Headrest adjustment via gas pressure spring (instead of clamping rod mechanism).
Can be operated with just one hand, release button located directly on the headboard. Retrofitting is not possible.

Set of castors, Ø 75 mm.
Set of castors, Ø 125 mm.
Four swivel castors, two of which are completely lockable.

Mobile base on retractable castors, castors Ø 75 mm.
Mobile base on retractable castors, castors Ø 125 mm.
Mobility in the form of a retractable castor lifting system, four swivel castors, a foot pedal is located at the head and foot ends, the table can be raised on the castors for transport or lowered back onto its feet. Retrofitting is not possible.

Central locking castor system, double swivel castors Ø 125 mm.
Mobility in the form of a central locking system, all four castors offer excellent rolling properties and are connected to each other by rods, foot pedals are arranged diagonally at the head and foot end, easy to operate and with coloured markings (green = table ready for moving, red = table locked in place). Retrofitting is not possible.

Levelling feet, for square steel tube 25 x 25 mm.
Levelling feet, for square steel tube 30 x 30 mm.
Set (4 pieces) impact caps with levelling feet.

Standard rails (pair), approx. length 400 mm.
Standard rails (pair), approx. length 600 mm.
Standard rails (pair), approx. length 1,000 mm.
Standard rails (pair), approx. length 1,400 mm.
Standard rails (pair), approx. length 1,700 mm.
Made of CrNi steel, dimensions approx. 25 x 10 mm, for mounting on the upholstery frame, approx. 13.5 mm away from the upholstery/upper frame with 2 (or 3) spacers. Retrofitting is not possible.

Paper roll holder, for table width 650 mm.
Paper roll holder, for table width 800 mm.
For examination tables with fixed height, chrome-plated, consisting of two angles, two clamps and a paper roll holder bar (length 615 / 795 mm, Ø 20 x 1 mm), for mounting on the table legs.

Paper roll holder, for table width 650 mm.
Paper roll holder, for table width 800 mm.
For height-adjustable examination tables, with mounting hardware, chrome-plated, consisting of two attachment (square steel tube 30 x 30 x 2 mm, length approx. 150 mm), two angles, two clamps and a paper roll holder bar (length 615 / 795 mm, Ø 20 x 1 mm), for mounting on the upholstery frame.

Paper roll holder, for table width 620 mm.
Paper roll holder, for table width 650 mm.
Paper roll holder, for table width 800 mm.
Chrome-plated, consisting of two angles and a paper roll holder bar (length 545 / 615 / 795 mm, Ø 20 x 1 mm), for mounting (from below) on the upholstered headboard.

Patient belt, dimensions 2,200 x 250 mm (L x W), for 650 mm wide tables.
Patient belt, dimensions 2,600 x 250 mm (L x W), for 800 mm wide tables.
Sewn from synthetic leather, with Velcro fastener (hook and loops straps), see upholstery colours.

Knee roll, dimensions Ø 180 x 560 mm.
Neck roll, dimensions Ø 140 x 400 mm.
Round roll, foam filling, sewn from synthetic leather, with zipper,  see upholstery colours.

Side guard, plastic coated.
Side guard, chrome-plated.
Side guard, made of CrNi steel.
Dimensions approx. 800 x 250 mm (L x H), can be inserted into the upholstery/tabletop frame facing upwards and downwards, secured using a handwheel. Retrofitting is not possible.

Side guard, plastic coated.
Side guard, chrome-plated.
Side guard, made of CrNi steel.
Dimensions approx. 800 x 250 mm (L x H), permanently connected to the upholstery/tabletop frame, can be lowered to upholstery height using a pivot mechanism, black handwheel with spring-loaded fixing bolts. Retrofitting is not possible.

Push handle, for table width 650 mm.
Push handle, for table width 800 mm.
Round tube Ø 30 x 2 mm, height 300 mm, chrome-plated, mounted at the foot end of the upholstery/tabletop frame. Retrofitting is not possible.

Push handle, for table width 650 mm.
Push handle, for table width 800 mm.
Round tube Ø 30 x 2 mm, height 440 mm, chrome-plated, mounted at the head end of the upholstery/tabletop frame. Retrofitting is not possible.

Shock position/Trendelenburg adjustment
Approx. 11°, the upholstery frame at the foot end is equipped with a gas pressure spring, release button embedded in the upholstery frame. Retrofitting is not possible.

All-around edge protection/impact protection
Black, dimensions approx. 40 x 22 mm, with aluminum insert, mounted on the upholstery frame (and on the side guards). Retrofitting is not possible.

Set of wall deflector rings
Rings Ø 100 mm, plastic-coated holders, screwed into the four table corners. Retrofitting is not possible.
